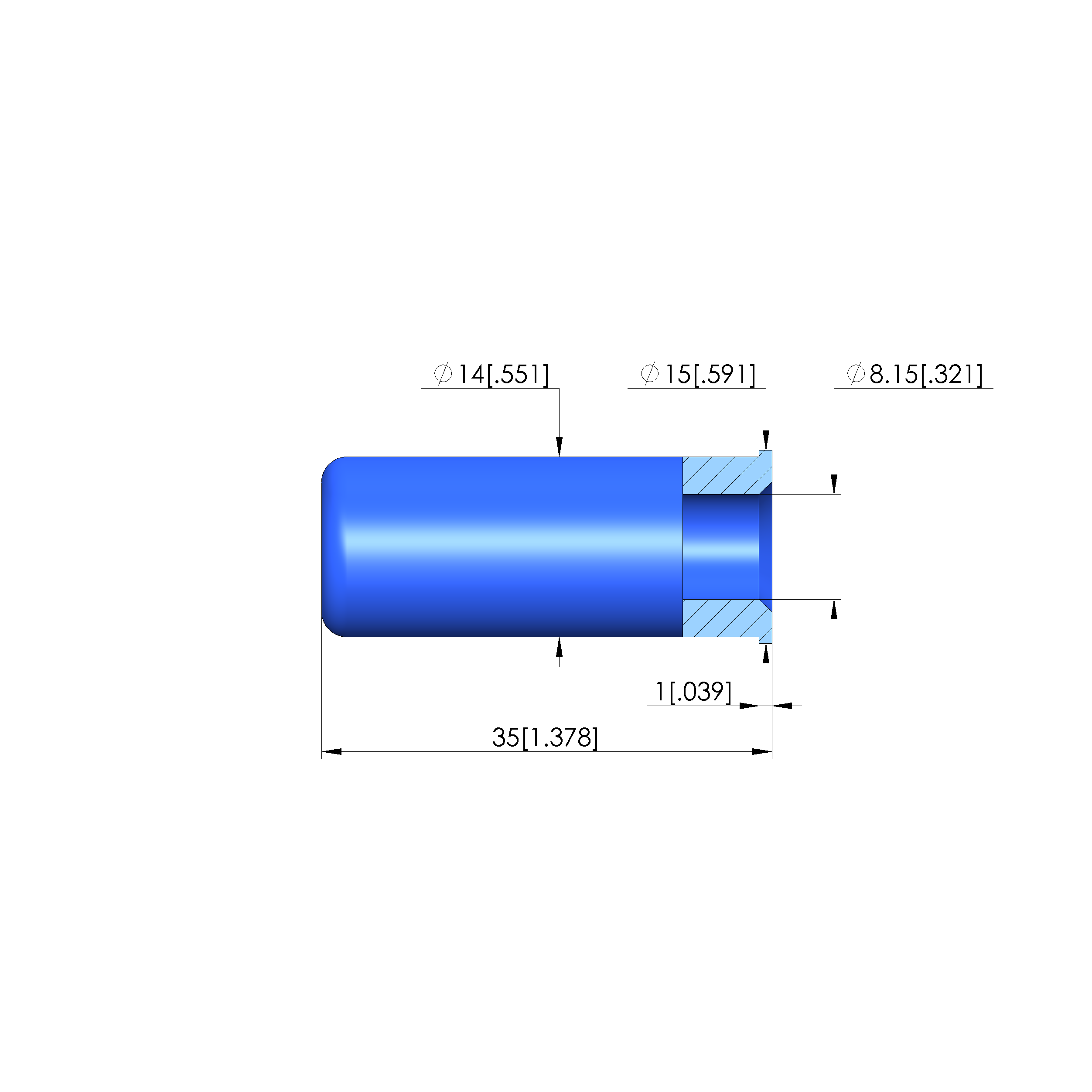

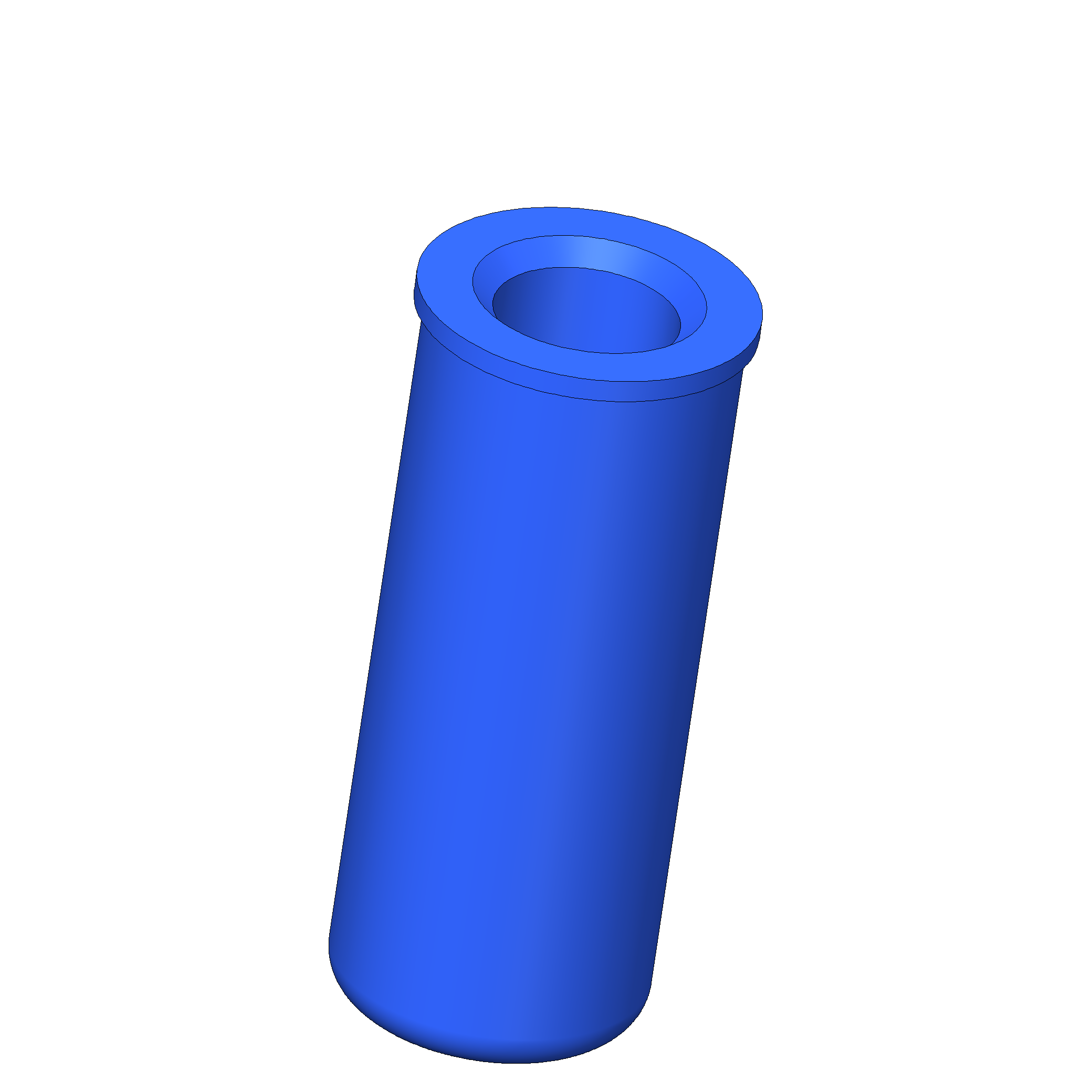

Guide bush FUB-08-14-35-POM-BL-B Item 2196
Guide bush FUB-08-14-35-POM-BL-B Item 2196
Please log in to show the price
Login
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible.
Shipping costs
* The prices are rounded to two decimal places.
Technical data
| Product group : | Mechanical accessory |
|---|---|
| Series : | FU |
| Type : | Guide bush |
| Version : | With collar 1 x d15 mm |
| Accessory type : | Customising accessories |
| Material : | POM |
| Colour : | Blau |
| RoHS-compliant : | RoHS-3 |
| Mounting hole in CEM1 : | 13.97 - 14.00 mm |
|---|---|
| Mounting hole in FR4 : | 13.97 - 14.00 mm |
| Installation : | Pressed in |
|---|---|
| Length : | 35 mm |
| Diameter : | 14 mm |
| Inner diameter : | 8.2 mm |
| Exchangeable kits version : | Standard, ESD, radio frequency |
|---|---|
| Vacuum test fixtures (VA) : | VA xxxx |
| MA exchangeable kits (ATS MA) : | ATS MAx60, ATS MAxx |
| VA exchangeable kits (ATS VA) : | VA xxxx |
