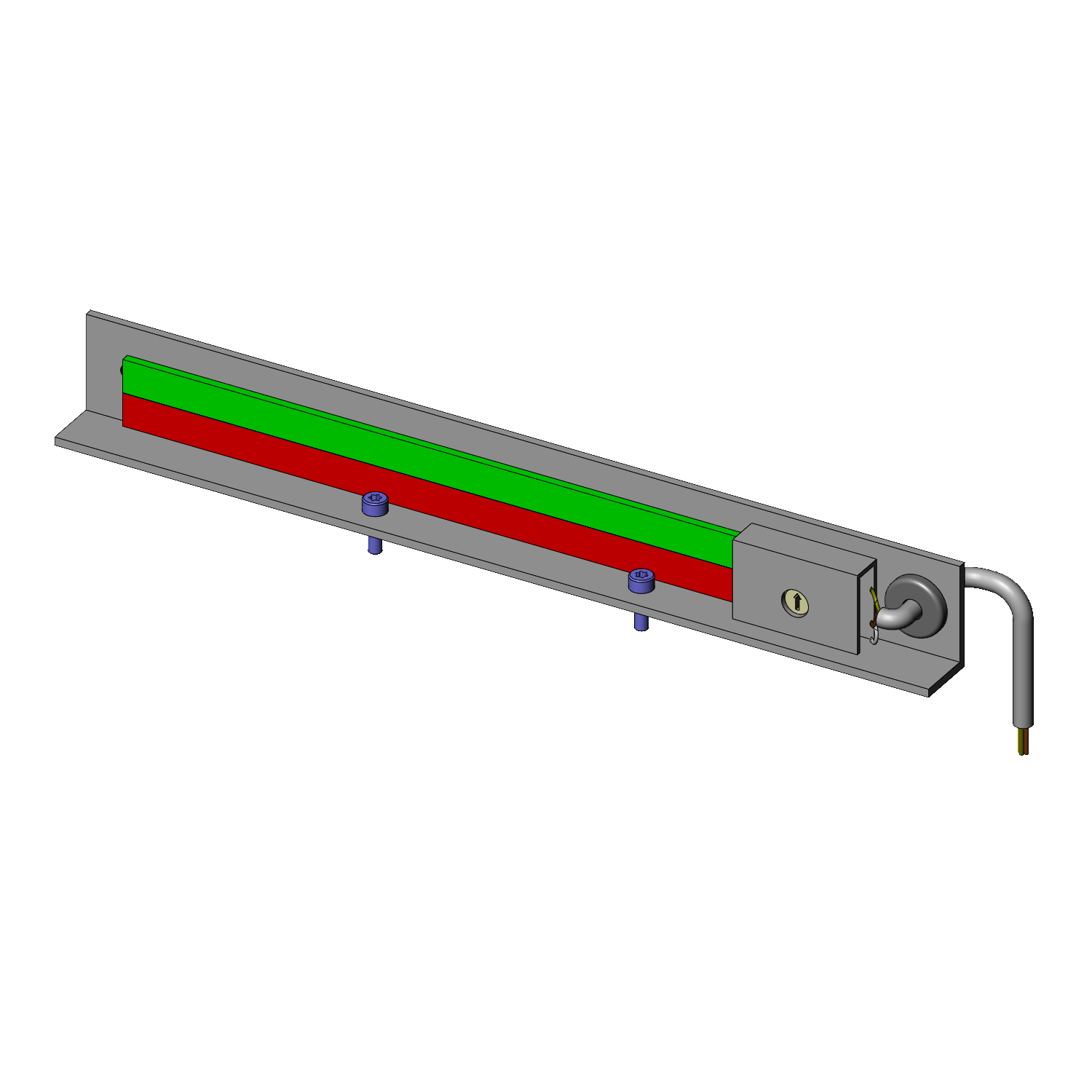

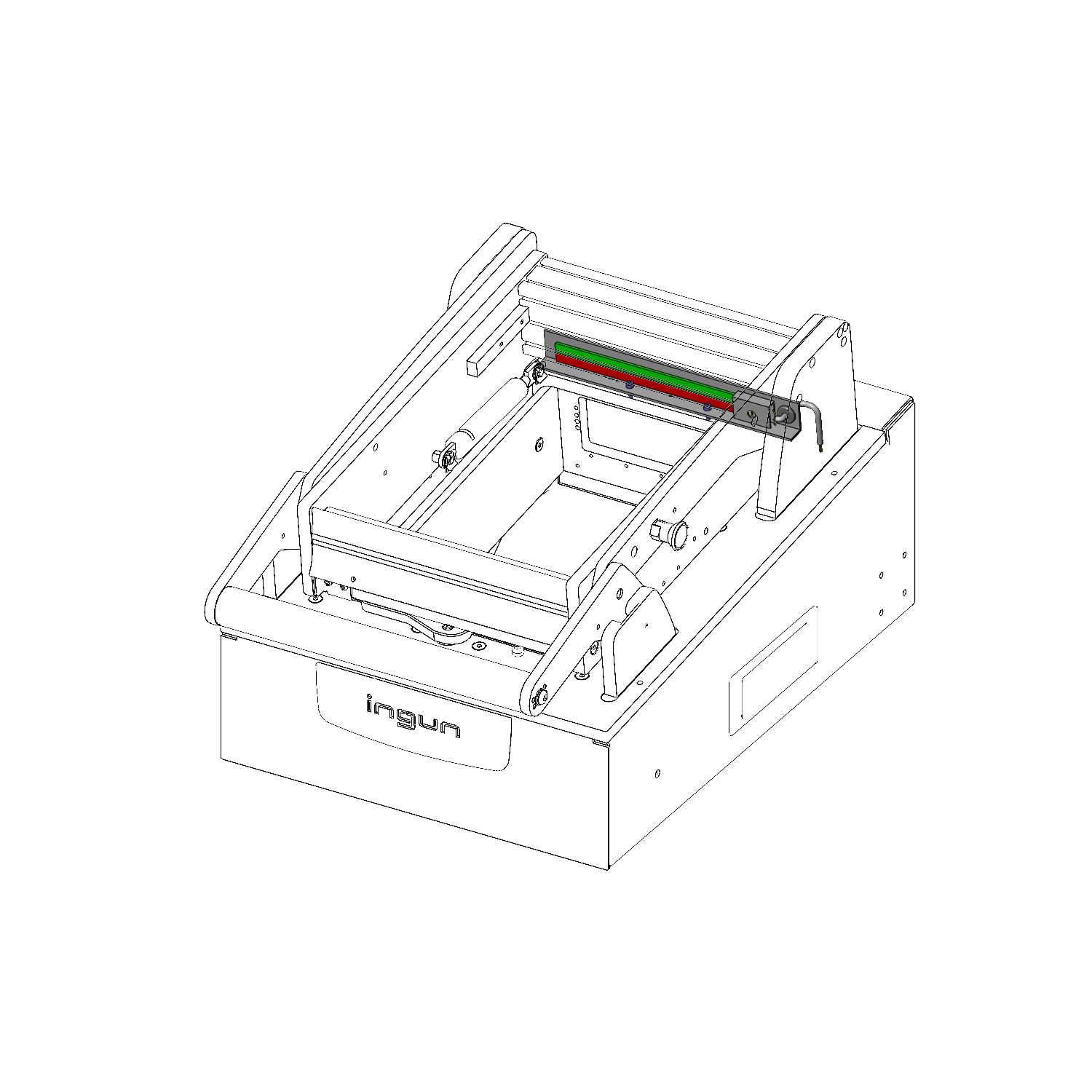

Pass/fail LED display FB-LED-D-MAxx09/11/13T Item 115452

  • Functional unit for individually configurable upgrade
  • Signalling of the test results (pass/fail) on the test fixture
  • Illumination of the test fixture interior
  • Includes dimmer for adjusting the brightness
  • Green: wavelength = 515-525 nm (light intensity = 800 mcd)
  • Red: wavelength = 620-635 nm ( light intensity = 300 mcd)
Show more Show less

Pass/fail LED display FB-LED-D-MAxx09/11/13T Item 115452

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
CAD file (INGUN_115452.STEP)
Document (115452_Montagezeichnung.PDF)
Document (115452__Kundenzeichnung.PDF)
Product datasheet (EN|pdf)
Choose version
FB-LED-D-MAxx09/11/13T (115452)
FB-ADT-MAxxxx (40980) FB-ESD-MAxx09/11/12/13/14 (33482) FB-KSG-ER-MAxx13/13T (111802) FB-MPZ-MAxx11 (104135) FB-MPZ-MAxx14 (104740) FB-SIS-BM-MAxx12 (41558) FB-SIS-BM-MAxx13 (41556) FB-SIS-BM-MAxx14 (41553) FB-SIS-ZSO-MA2xxx (36210) INGUN SELECTION FB-SOE-MAxx11/12/13/13T/14 (45220) FB-VER-O-ESO-MAxxxx (43584) FB-VLK-MA2xxx (43763) FB-SLV-MAxx09 (113130) FB-LED-D-MAxx09/11/13T (115452) FB-GDS-600N-MAxxxx (115295) FB-OSA-E-MA3213/14 (114535) FB-SIS-OSA-MAxx14 (114826) FB-KSG-ER-MAxx12 (111799) FB-SLV-MAxx13 (112473) FB-SLV-MAxx14 (112474) FB-2VM-MA2xxx (106834) FB-2VM-MOT-MAxxxx (112801) FB-STE-2VM-MAxxxx (111185) FB-MPZ-MAxx12 (104578) FB-SLV-MAxx11 (112471) FB-SLV-MAxx13T (112475) FB-2VM-MA3xxx (106841) FB-2VM-SO-MA3xxx (110538) FB-ABF-G-I-MA2xxx (37550) FB-ABF-V-SKS-MAxxxx (43246) FB-LED-MAxx09/11/13T (45770) FB-LED-MAxx12 (45996) FB-MGK-MAxxxx (47715) FB-MPZ-MAxx09 (104734) FB-MPZ-MAxx13 (104738) FB-OBR-MA2xxx (43592) FB-OLB-MAxxxx (51770) FB-SIS-BM-MA2x09/11/13T (41560) FB-SIS-MA2xxx (42066) FB-SIS-ZSG-MA2xxx (46020) FB-STE-UNI-MAxxxx (42703) FB-VER-G-ESG-MAxxxx (32665) FB-OSA-E-MA2x11/12 (113401) FB-SIS-OSA-MAxx12 (113450) FB-ESD-MAxx13T (113915) FB-LED-D-MAxx14 (115560) FB-FK-OSA-E (115618) FB-OSA-E-MA3211/12 (114445) FB-ABF-G-S-MA2xxx (33840) FB-ABF-V-I-MA2xxx (43625) FB-ABF-V-I-MA32xx (46745) FB-GDS-400N-MAxxxx (48730) FB-KSG-ER-MAxx14 (110707) FB-KSG-MAxxxx (29805) FB-SOP-MA2x09 (42701) FB-SOP-MAxx11/12/13/13T/14 (42700) FB-STE-MAG-MAxxxx (42810) FB-VER-G-ESO-MAxxxx (36065) INGUN SELECTION FB-VER-G-P-MAxxxx (49270) FB-VLK-MA32xx (44831) FB-LED-D-MAxx12 (115218) FB-LED-D-MAxx13 (115559) FB-ESD-S-MAxx09/11/12/13/14 (43597) FB-ESD-S-MAxx13T (113081) FB-GDS-300N-MAxxxx (62852) FB-OSA-E-MA2x13/14 (114263) FB-OSA-E-MA2x09 (114503) FB-SIS-OSA-MAxx13 (114287) FB-SIS-OSA-MAxx11 (114316) FB-SIS-OSA-MAxx09 (114509) FB-SLV-MAxx12 (112472) FB-2VM-SO-MA2xxx (110515)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Functional units
Series : FB-MAxxxx
Type : Pass/fail LED display
Version : Green/red incl. dimmer
Accessory type : Additional function
Scope of delivery : Partially assembled
Component assembly : 1KOhm Trimm-Poti
Width : 210 mm
Height : 25 mm
Min. temperature : + 10 °C
Max. temperature : + 60 °C
RoHS-compliant : RoHS-3;6c
Technical data
Connection : Cable (3x 0.14 mm²)
Max. current : 0.2 A
Max. voltage : 12 VDC
Number of poles : 3
Length : 15 mm
Cable length : 1000 mm
Outer dimensionS (WxDxH) : 210 x 15 x 25 mm
Compatible with
Exchangeable kits version : No limitations
Manual test fixtures (MA) : MA xx09, MA xx11, MA xx13T
