Spare part kits, guide ETK-FUS-12-72-ST-M4 Item 110465

New
  • Available for each component as kit or individual part including assembly drawing for easy replacement and safe installation
  • Quick, easy maintenance
  • Easy replacement by operators on site
Show more Show less

Spare part kits, guide ETK-FUS-12-72-ST-M4 Item 110465

Please log in to show the price
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible. Shipping costs * The prices are rounded to two decimal places.
Downloads
Conformation of RoHS compliance (EN|PDF)
CAD file (INGUN_110465.STEP)
Product datasheet (EN|pdf)
Choose version
ETK-FUS-12-72-ST-M4 (110465)
ETK-FUS-WS-KS-i3070-5i (103307) ETK-MTZ-WS-KS-i3070-5i (105120) ETK-FUS-12-72-ST-M4 (110465)
Here you can optionally configure a new variant:
Technical data
General data
Product group : Spare part kits
Series : ETK-WS-KS

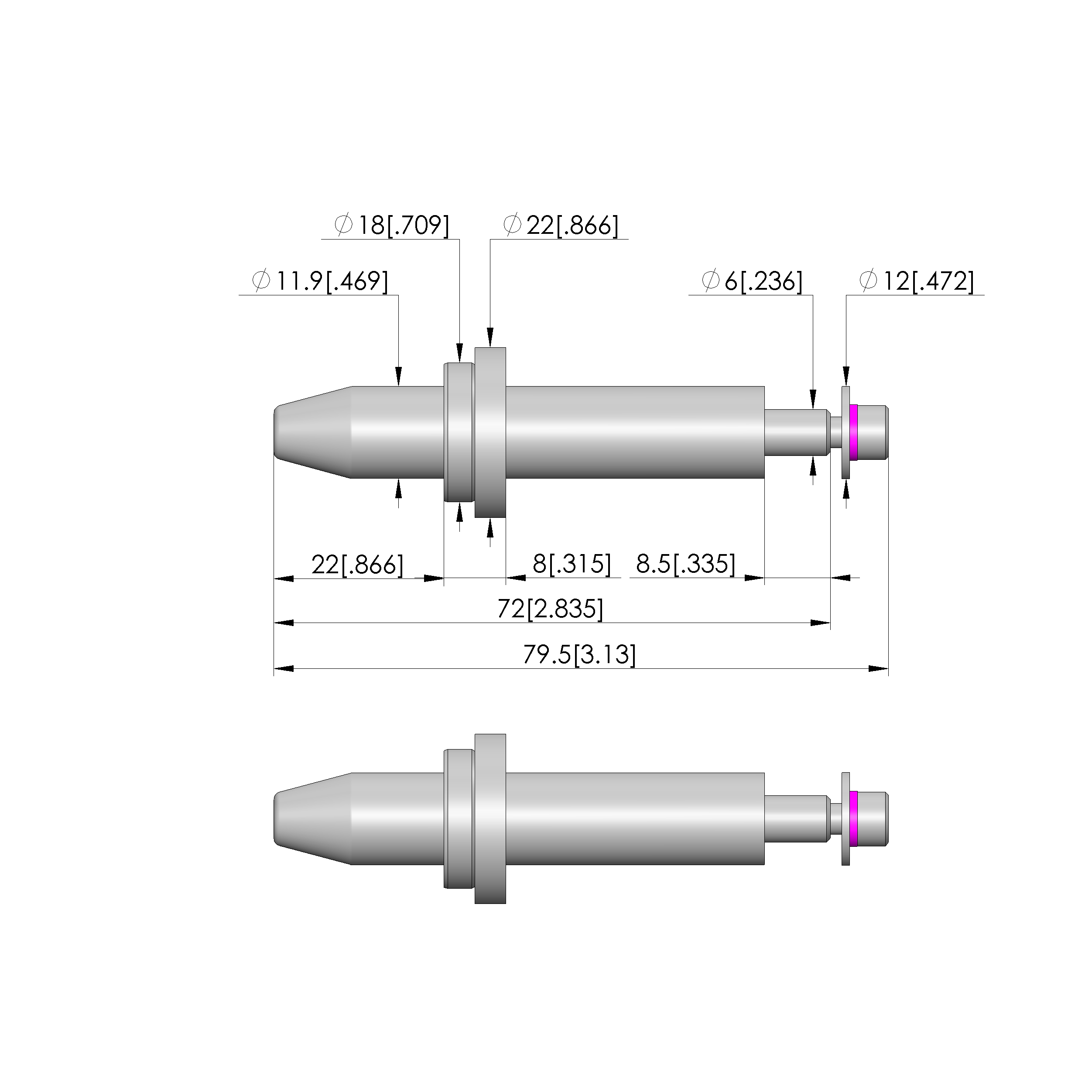

Type : Round with pin (D6 x 8.5)
Version : Guide pillar
Accessory type : Spare parts
Scope of delivery : Unassembled
Material : 1.4305
Weight : 0.14 kg
RoHS-compliant : RoHS-3
Technical data
Installation : Thread M4
Length : 72 mm
Diameter : 11.9 mm
Compatible with
Exchangeable kits version : No limitations
Interchangeable kits (WS) : WS Keysight/i1000FE, i30705i/4M
