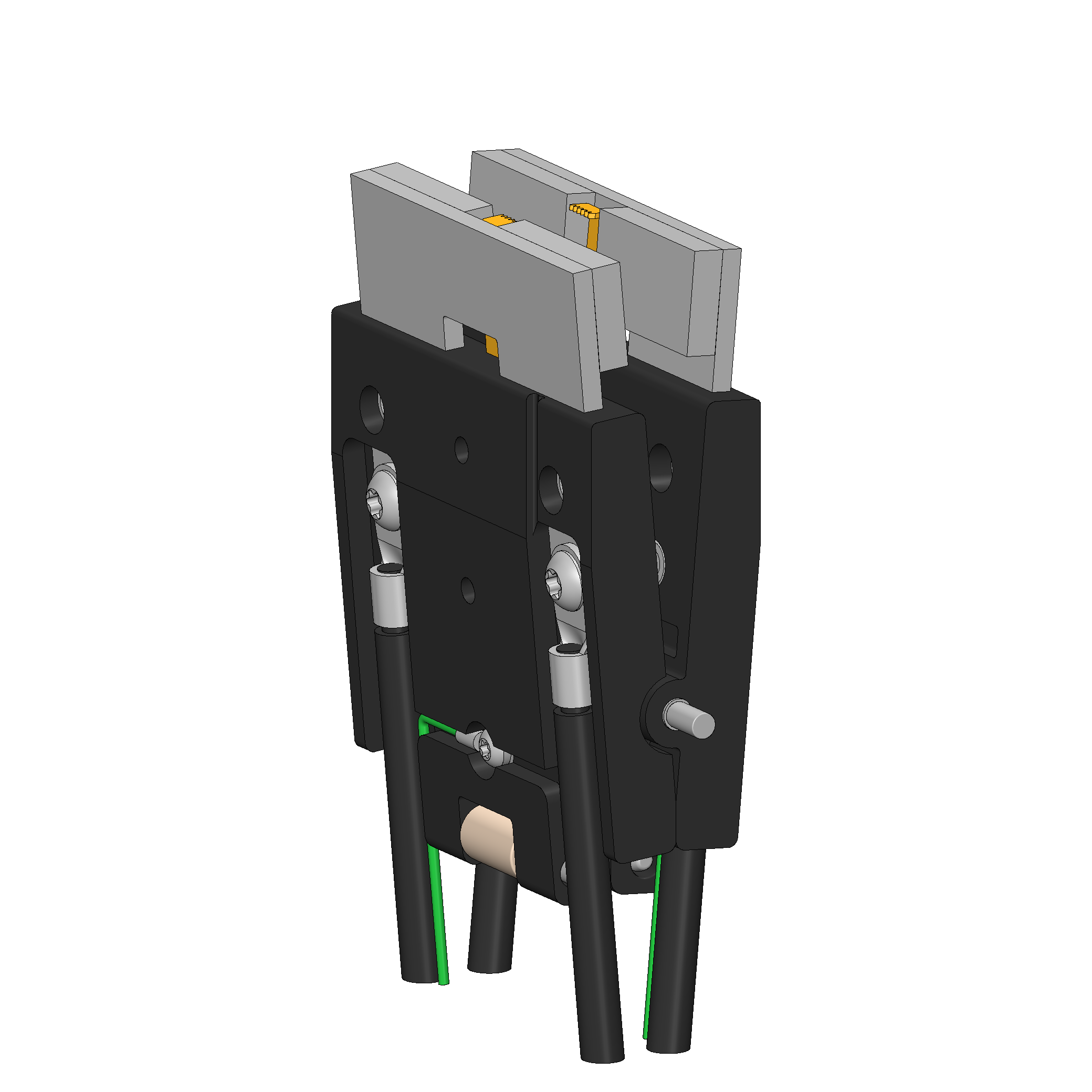

Battery contacting clamp BCC-635 410 05 N 000 02 06 Item BCC-635-0002
New
- Contacting solution for pouch cells
- Available with measuring contact for precise voltage measurements.
- Can be loaded with currents up to 100 A at DeltaT ≤ 20°K

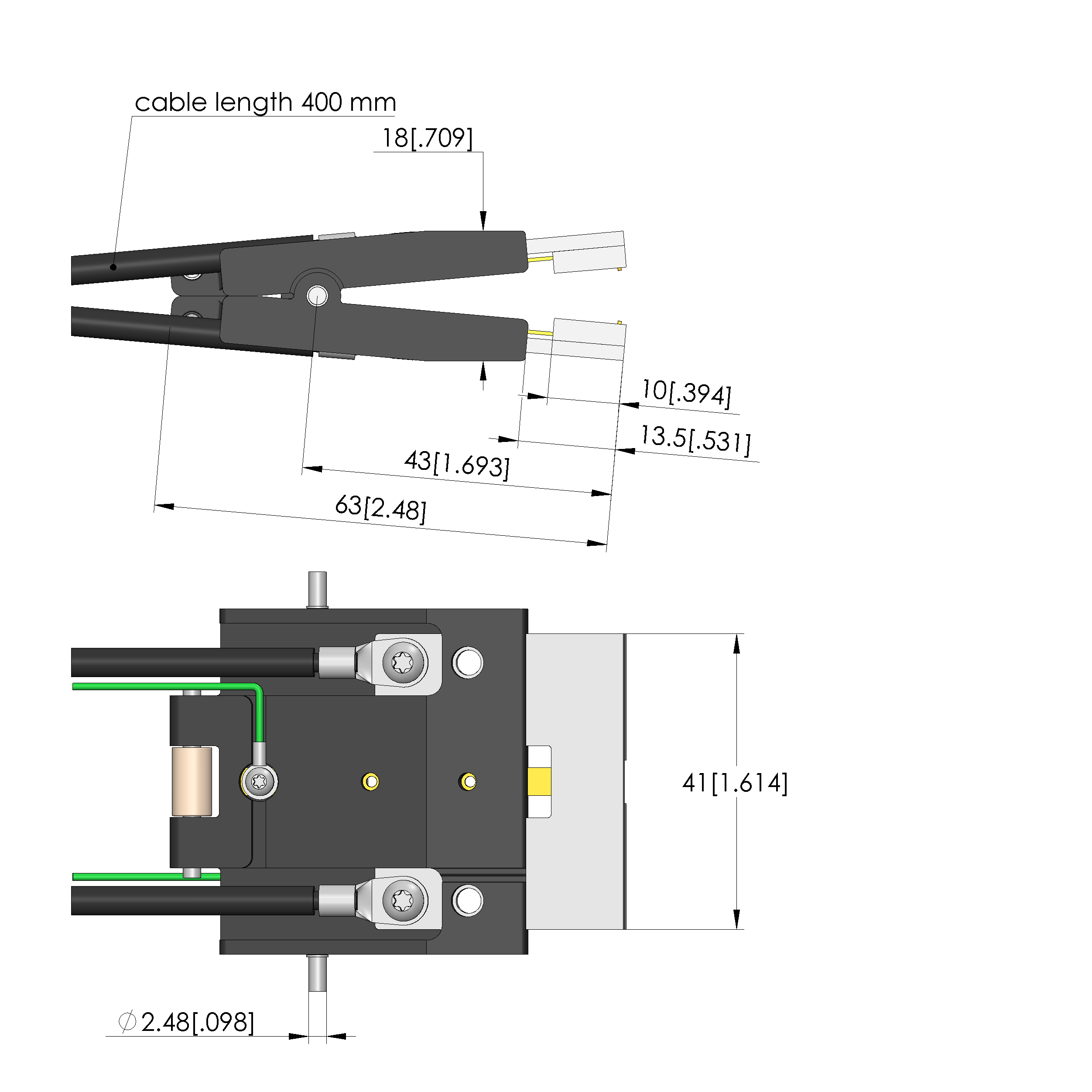

- Connection with pre-assembled cables in 400 mm length
- Developed for a range of applications including pre-charging, formation, measurement of internal resistance (IR), open-circuit voltage (OCV) assessment and end-of-life (EOL) testing
- Easy installation of the clamp over the lateral axle protrusions
Battery contacting clamp BCC-635 410 05 N 000 02 06 Item BCC-635-0002
Please log in to show the price
Login
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible.
Shipping costs
* The prices are rounded to two decimal places.
Technical data
| Product group : | Battery Contacting |
|---|---|
| Sub-product group : | BCC high-current clamps (flat / round) |
| Series : | BCC-635 |
| Grid : | 30 mm |
| Contacting from : | Pin, posts, bead, flat contact |
| DUT / contact : | Pouch cells |
| Magnetic : | Yes |
| DUT / contact : | Battery |
| Battery application : | Formation |
| Quick-exchange system : | No |
| Type of test probe connection : | vorkonfektioniert |
| Adjustable installation height : | No |
| Non-rotating : | Yes |
| Min. temperature : | - 40 °C |
| Max. temperature : | + 80 °C |
| RoHS-compliant : | RoHS-3;6c |
| Current load capacity / rated current : | 60 A |
|---|---|
| Current load capacity ΔT ≤ 20 K : | 65 A |
| Typical resistance (Ri) : | < 1 mOhm |
| Total length : | 63 mm |
|---|

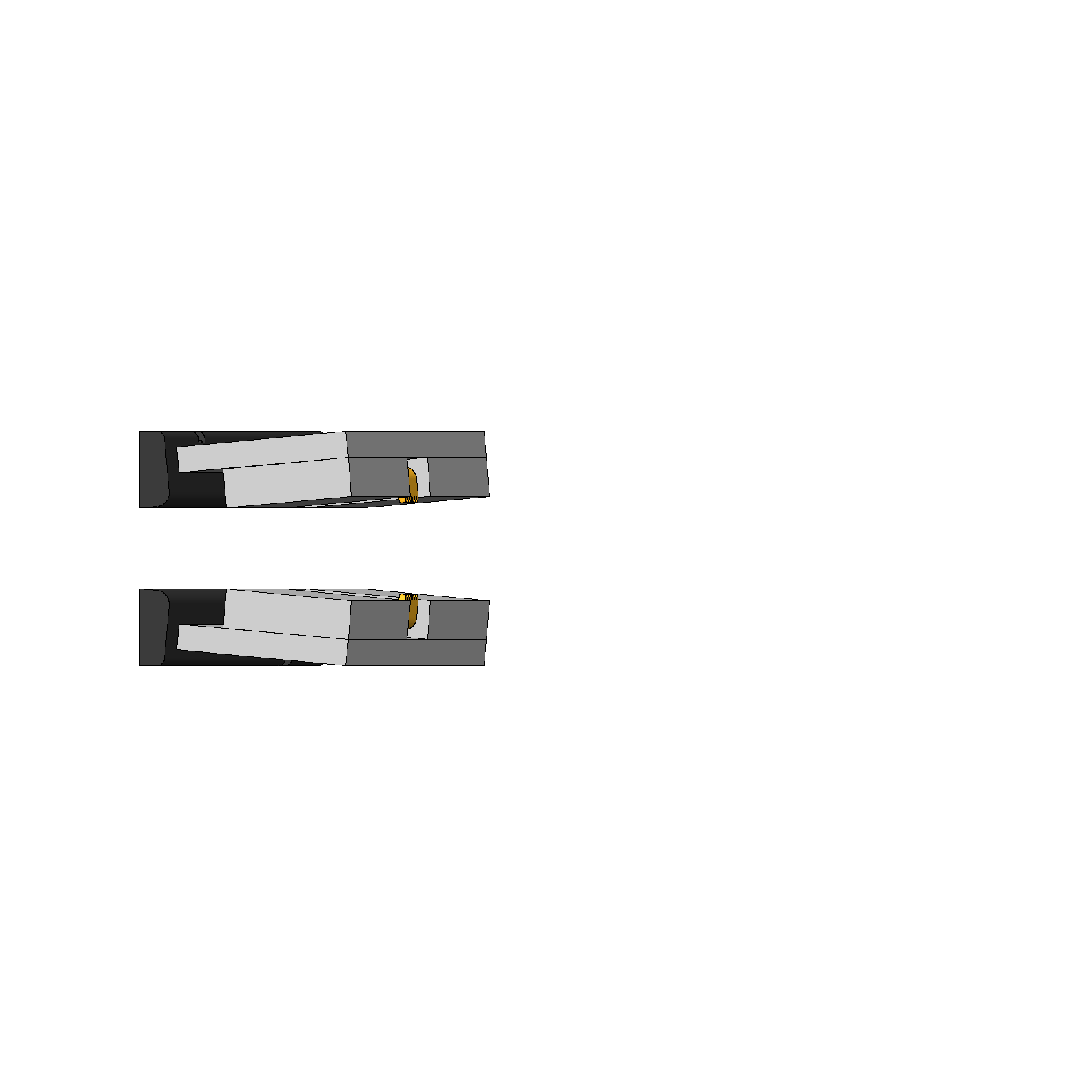

| Tip style : | 02 flat |
|---|---|
| Tip diameter : | 41 mm |
| Tip style surface : | N nickel |
| Tip style material : | 1 brass |
