Product information "PS-USB3.1C-M-024-G5-B-02"
- Larger lead-in chamfers, up to 0.4 mm tolerance compensation
- One of the smallest test plugs for USB3.1C for the most compact applications, also suitable for USB3.1C automotive
- Outstanding service life: over 50,000 mating cycles (under laboratory conditions) depending on the version
- Precise, low-wear contacting of USB plug connectors
- Reliable data transmission
- Optional spring elements (112863: set of 2x5 N) can compensate for tolerances of ±0.4 mm and positioning inaccuracies.
- Interface: Signal transmission to the test system via original USB3.1C connector plug
| Compatible assembly interface gender : | F signal conductor female / socket |
|---|---|
| Continuous plunger: | No |
| DUT / contact: | USB3.1-C |
| DUT interface gender : | F signal conductor female / socket |
| Exchangeable inner conductor: | No |
| Grid: | 8 mm [314 mil] |
| Height: | 7 mm [.275 in] |
| Impedance: | 90 Ohm |
| Inner conductor max. current load capacity: | 3 A |
| Installation height without receptacle: | 26.5 mm [1.04 in] |
| Interface of compatible assembly: | USB 3.1-C |
| Max. data rate: | 10 Gbit/s |
| Max. temperature: | 75 °C [167 °F] |
| Maximum performance: | 15 W |
| Min. temperature: | -20 °C [-4 °F] |
| Number of inner conductor poles: | 24 |
| Product group: | PS test plug |
| RoHS-compliant: | Yes |
| Series: | PS |
| Sub-series: | PS-USB |
| Total length: | 27.5 mm [1.08 in] |
| Width: | 30 mm [1.18 in] |
Login

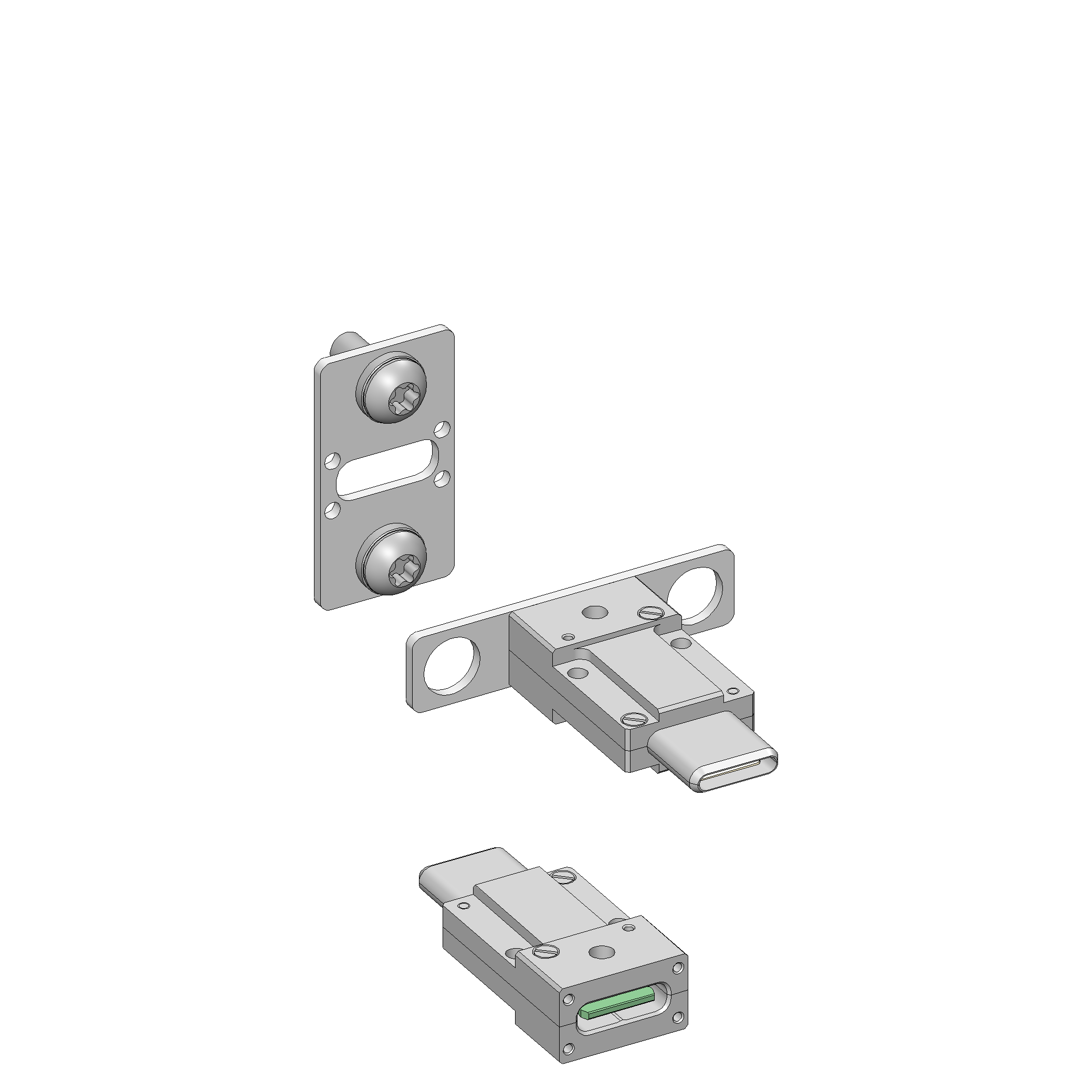

Product Details
- Larger lead-in chamfers, up to 0.4 mm tolerance compensation
- One of the smallest test plugs for USB3.1C for the most compact applications, also suitable for USB3.1C automotive
- Outstanding service life: over 50,000 mating cycles (under laboratory conditions) depending on the version
- Precise, low-wear contacting of USB plug connectors
- Reliable data transmission
- Optional spring elements (112863: set of 2x5 N) can compensate for tolerances of ±0.4 mm and positioning inaccuracies.
- Interface: Signal transmission to the test system via original USB3.1C connector plug
Other products in this series:
Technical data
Electrical data
- Impedance: 90 Ohm
- Max. data rate: 10 Gbit/s
- Maximum performance: 15 W
General data
- Product group: PS test plug
- Series: PS
- Sub-series: PS-USB
- Grid: 8 mm [314 mil]
- DUT / contact: USB3.1-C
- DUT interface gender : F signal conductor female / socket
- Continuous plunger: No
- Interface of compatible assembly: USB 3.1-C
- Compatible assembly interface gender : F signal conductor female / socket
- Width: 30 mm [1.18 in]
- Height: 7 mm [.275 in]
- Min. temperature: -20 °C [-4 °F]
- Max. temperature: 75 °C [167 °F]
- RoHS-compliant: Yes
Inner conductor data
- Exchangeable inner conductor: No
- Inner conductor max. current load capacity: 3 A
- Number of inner conductor poles: 24

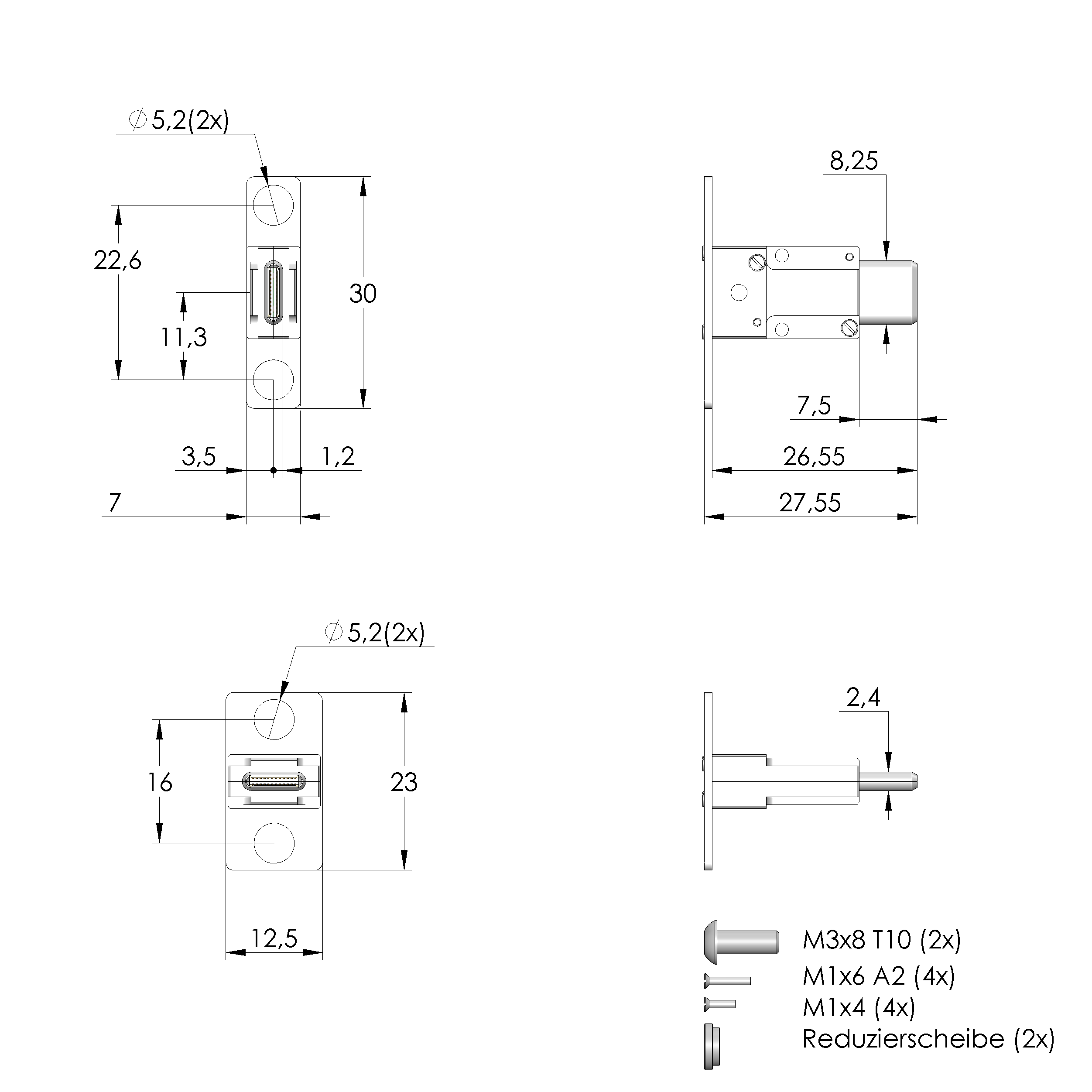

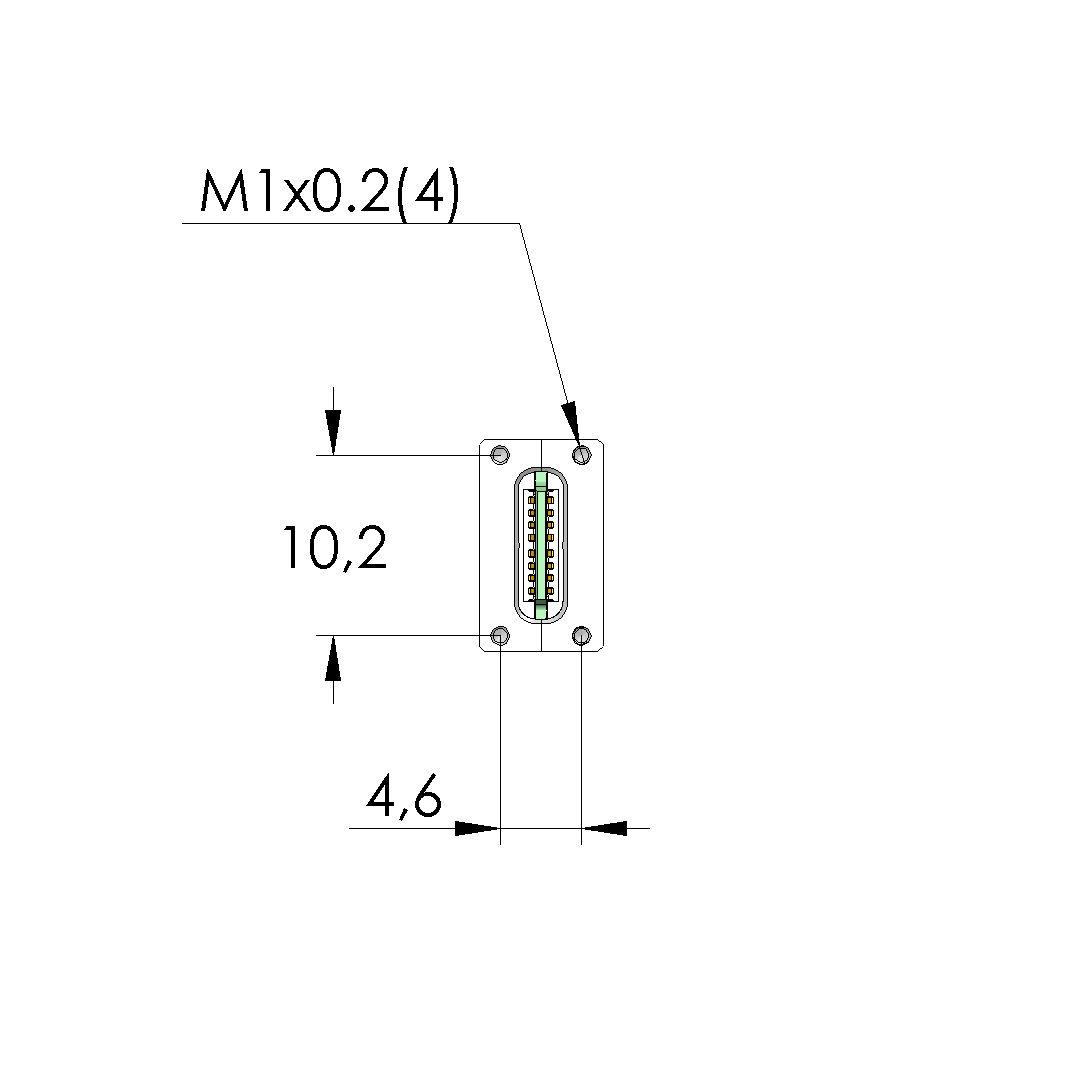

Mechanical data
- Total length: 27.5 mm [1.08 in]
- Installation height without receptacle: 26.5 mm [1.04 in]
