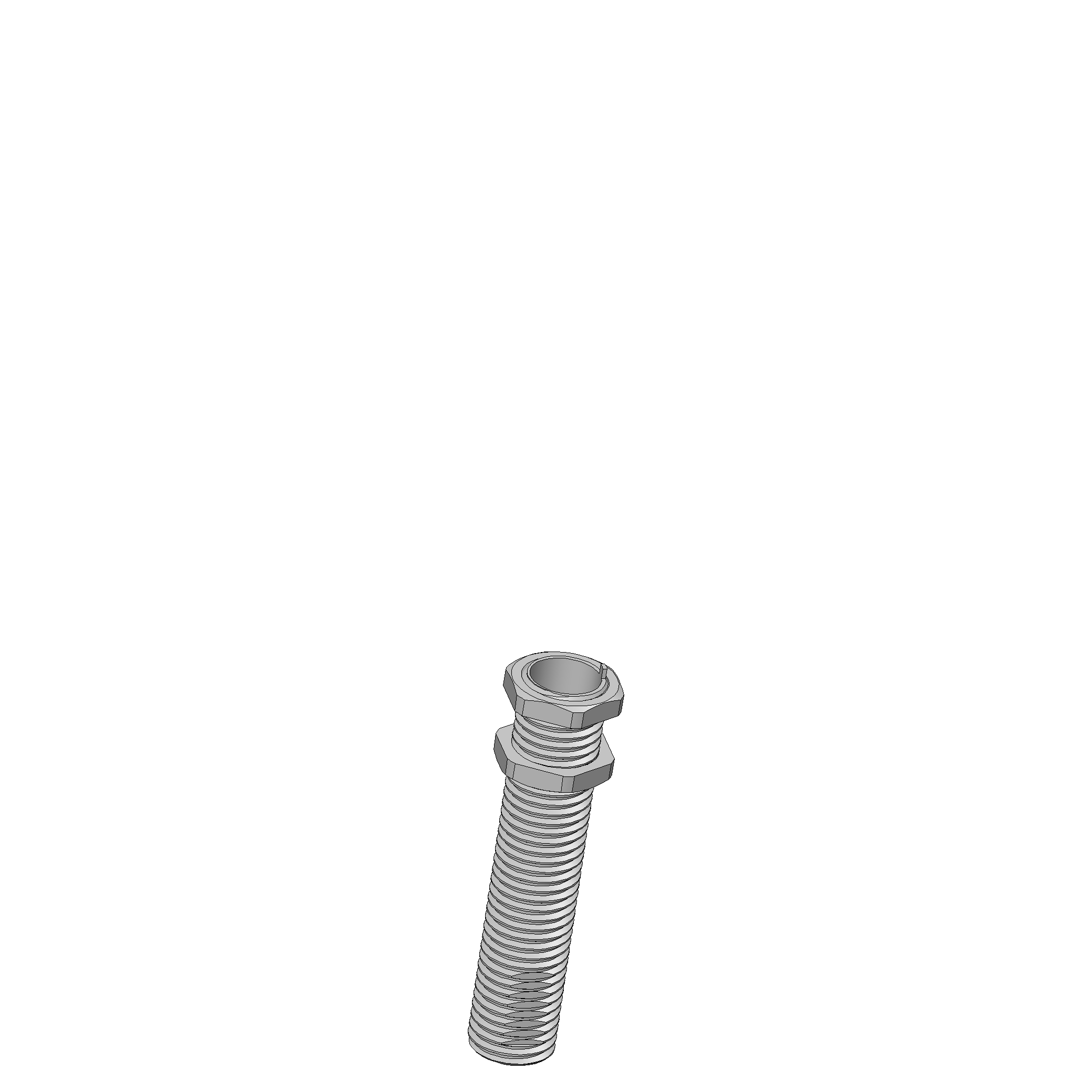

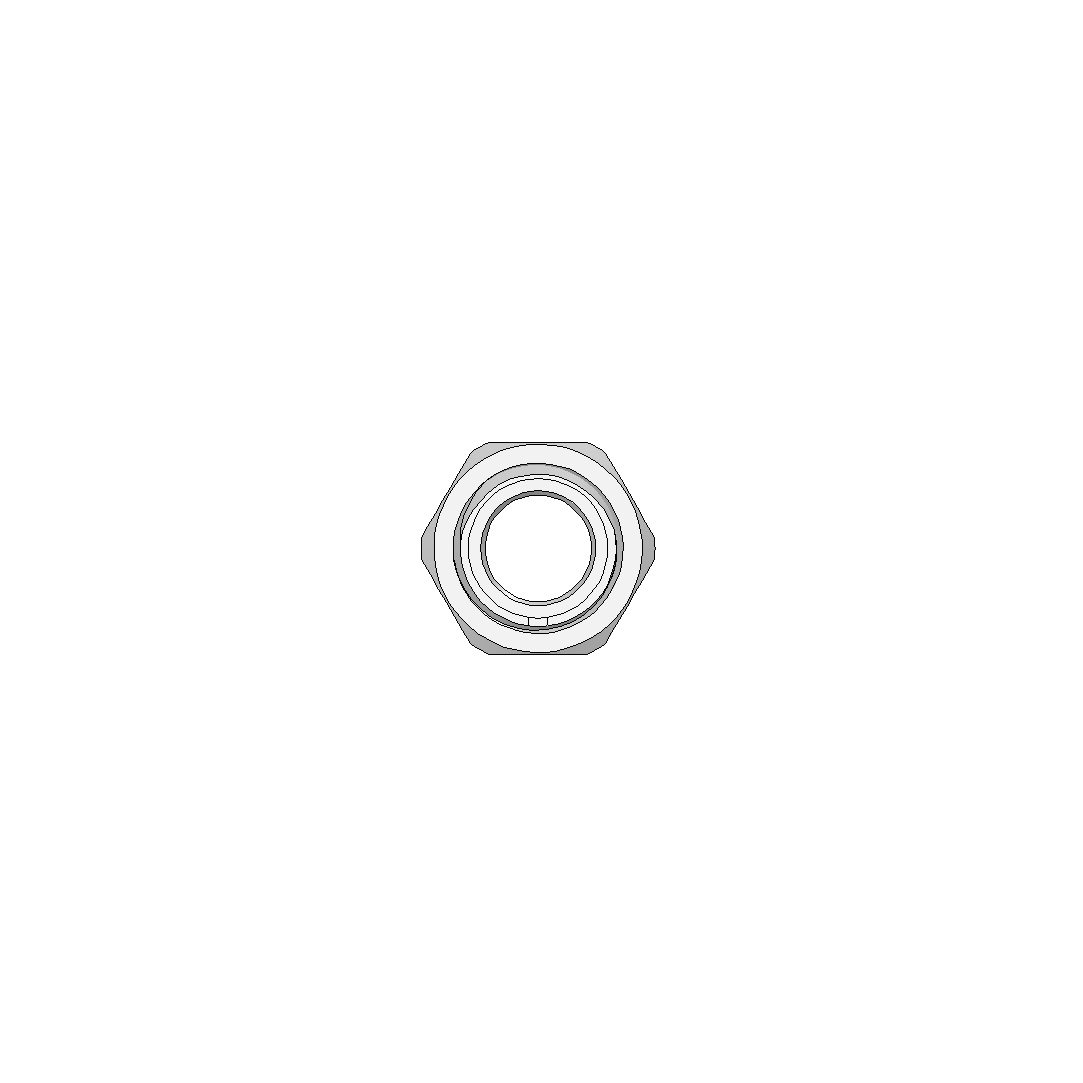

Product information "KTH-ME-D7-M8-SW7"
- Receptacle for electric board marker probe ME-E-R2,0-08-053-2S-BL6V-42V
- Anti-rotation anchor to perfectly align the engraving unit
- Quick, easy installation
| Accessory type: | Customising accessories |
|---|---|
| Board marker probe (ME): | ME-E-R2,0-08-053-2S-BL6V-42V |
| Diameter: | M8x0,5 mm |
| Height: | 38.5 mm [1.51 in] |
| Inner diameter: | 6.58 mm [.259 in] |
| Installation: | Thread M8 x 0.5 |
| Material: | 2.0401 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Mechanical accessory |
| RoHS-compliant: | Yes |
| Scope of delivery: | Incl. 2x lock nut |
| Series: | KTH |
| Type: | Receptacle |
| Version: | ME-E |
| Weight: | 0.01 kg [.022 lbs] |
Login
Product Details
- Receptacle for electric board marker probe ME-E-R2,0-08-053-2S-BL6V-42V
- Anti-rotation anchor to perfectly align the engraving unit
- Quick, easy installation
Other products in this series:
Technical data
Technical data
- Installation: Thread M8 x 0.5
- Diameter: M8x0,5 mm
- Inner diameter: 6.58 mm [.259 in]
General data
- Product group: Mechanical accessory
- Series: KTH
- Type: Receptacle
- Version: ME-E
- Accessory type: Customising accessories
- Scope of delivery: Incl. 2x lock nut
- Material: 2.0401
- Height: 38.5 mm [1.51 in]
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Board marker probe (ME): ME-E-R2,0-08-053-2S-BL6V-42V
