Product information "ETK-FUS-WS-KS-i3070-5i"
- Spare parts kit for reliable preventative mainenance

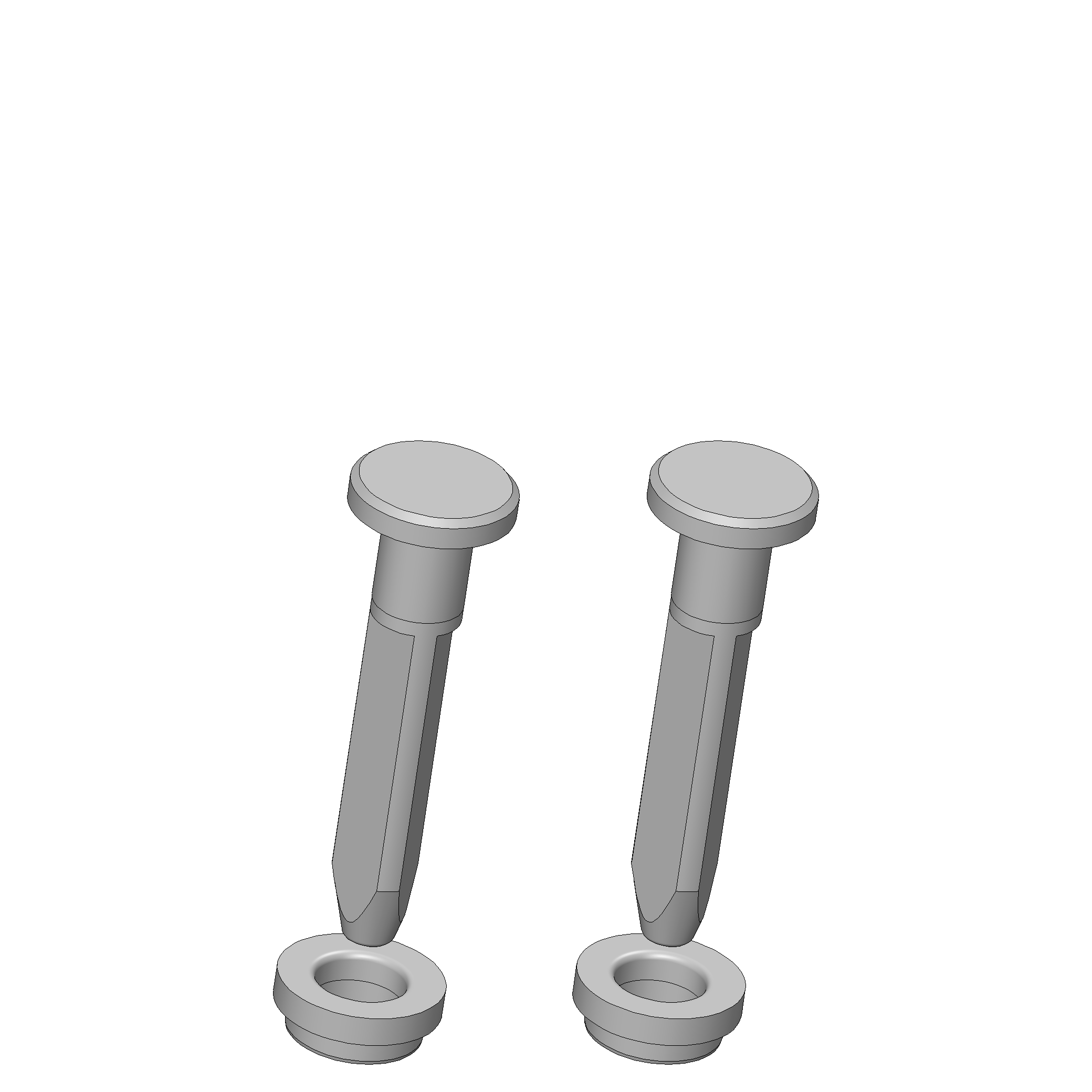

- HIgh-precision guide pins with guide bushes
- Centring accuracy of +/- 0.05 mm
- Precise, low-friction contacting
- Easy exchange
| Accessory type: | Spare parts |
|---|---|

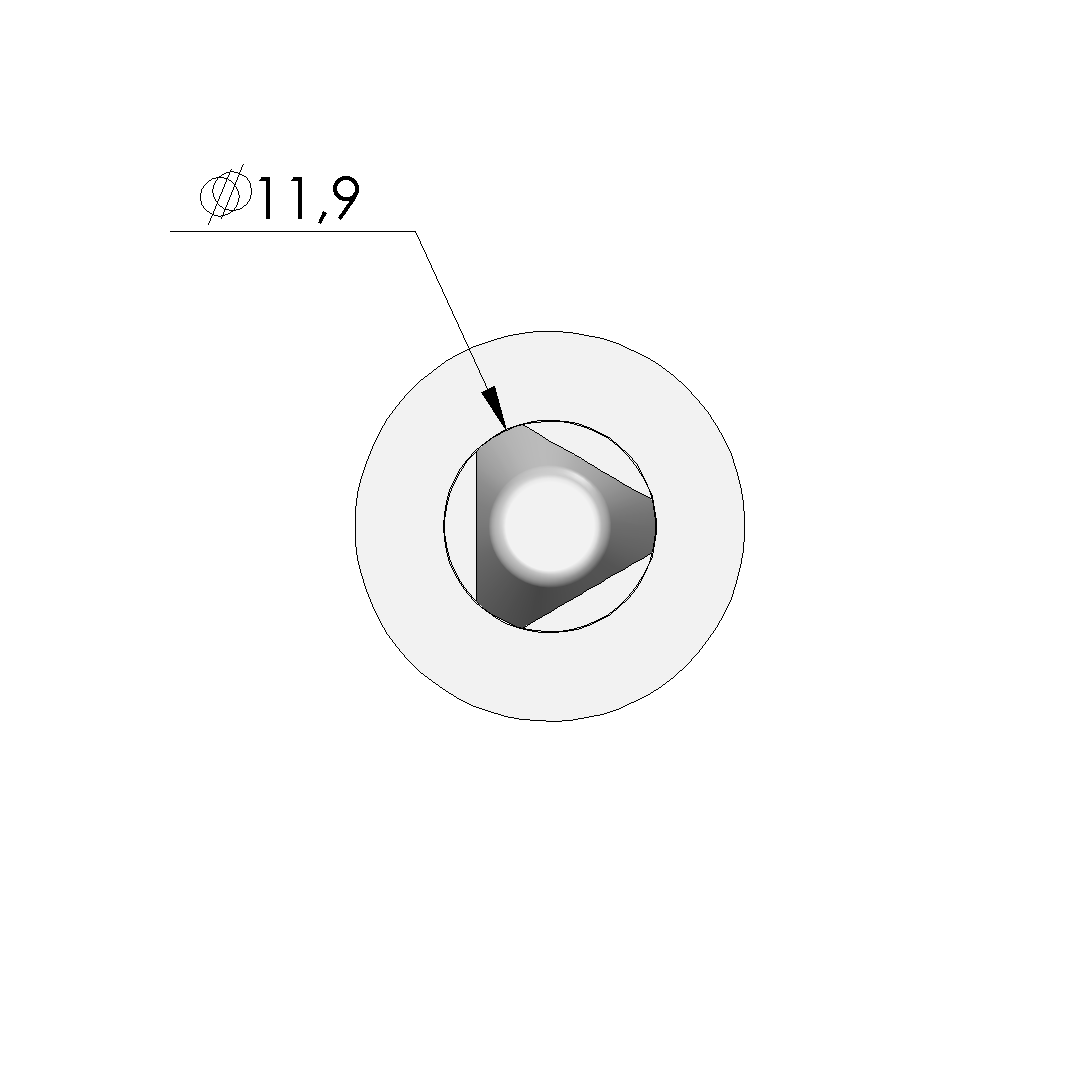

| Diameter: | 11.9 mm [.468 in] |
| Installation: | Clamped in bore |
| Interchangeable kits (WS): | WS Keysight/i3070-5i |
| Length: | 68 mm [2.67 in] |
| Material: | 1.4305 |
| Max. temperature: | 45 °C [113 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Spare part kits |
| RoHS-compliant: | Yes |
| Scope of delivery: | Must be installed upon delivery, installation accessories included |
| Series: | ETK-WS-KS |
| Type: | Guide pins/guide bushes |
| Version: | Chisel, round with flange (D22 x 4) |
| Weight: | 0.25 kg [.551 lbs] |
Login
Product Details
- Spare parts kit for reliable preventative mainenance
- HIgh-precision guide pins with guide bushes
- Centring accuracy of +/- 0.05 mm
- Precise, low-friction contacting
- Easy exchange
Other products in this series:
Technical data
General data
- Product group: Spare part kits
- Series: ETK-WS-KS
- Type: Guide pins/guide bushes
- Version: Chisel, round with flange (D22 x 4)
- Accessory type: Spare parts
- Scope of delivery: Must be installed upon delivery, installation accessories included
- Material: 1.4305
- Weight: 0.25 kg [.551 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 45 °C [113 °F]
- RoHS-compliant: Yes
Compatible with
- Interchangeable kits (WS): WS Keysight/i3070-5i
Technical data
- Installation: Clamped in bore
- Length: 68 mm [2.67 in]
- Diameter: 11.9 mm [.468 in]
