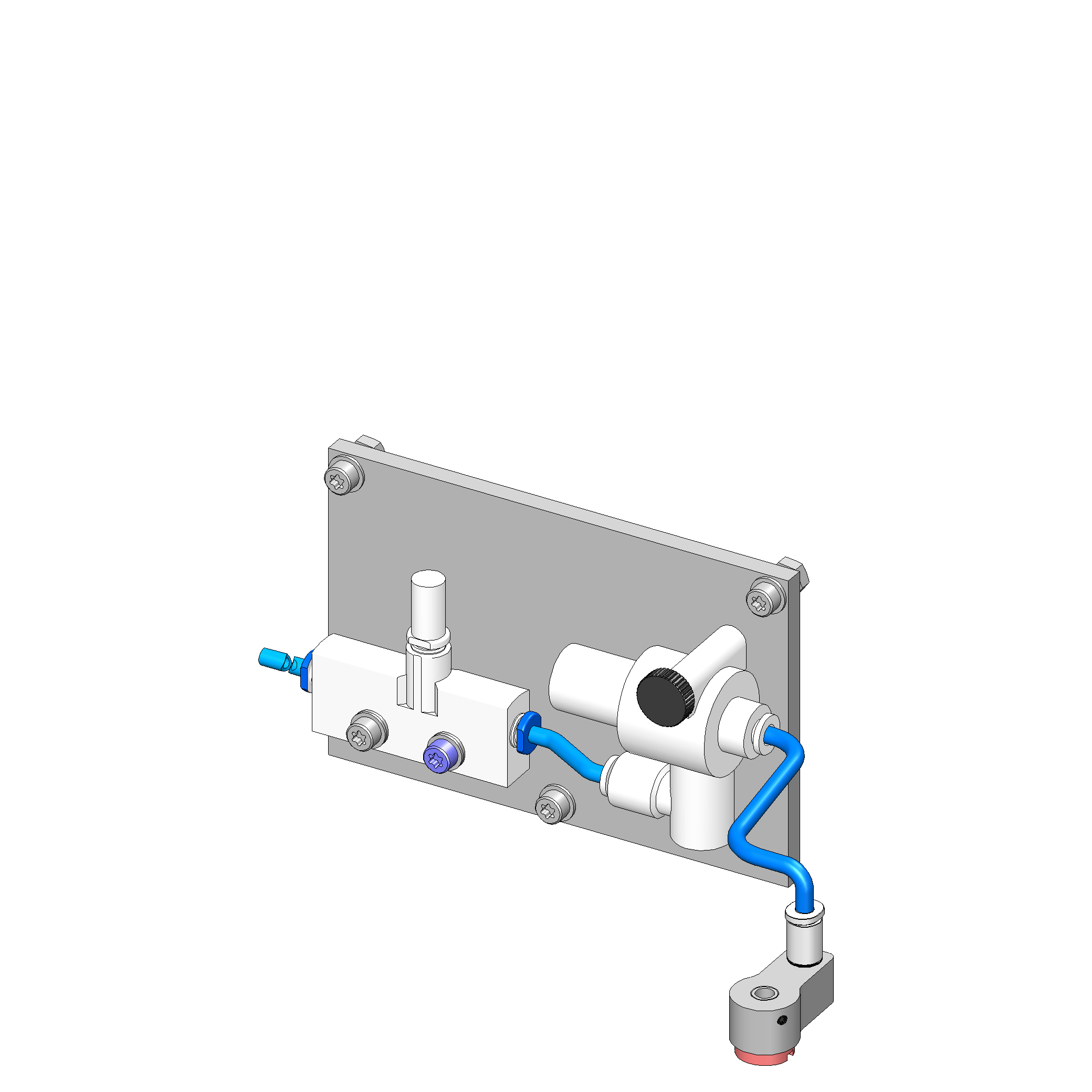

Product information "ASV-ME-P-WK-EC"
- Suction device for electric board marker probe (ME)
- Suction to remove shavings caused by the marking process
- Removeable collection container (no tools required)
- Quick, easy installation
| Accessory type: | Additional function |
|---|---|
| Board marker probe (ME): | ME-P-xx,x-xx-xxx-xxx |
| Compressed air connection: | QS-4 |
| Height: | 80 mm [3.14 in] |
| Installation: | Thread M4 |
| Length: | 120 mm [4.72 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |

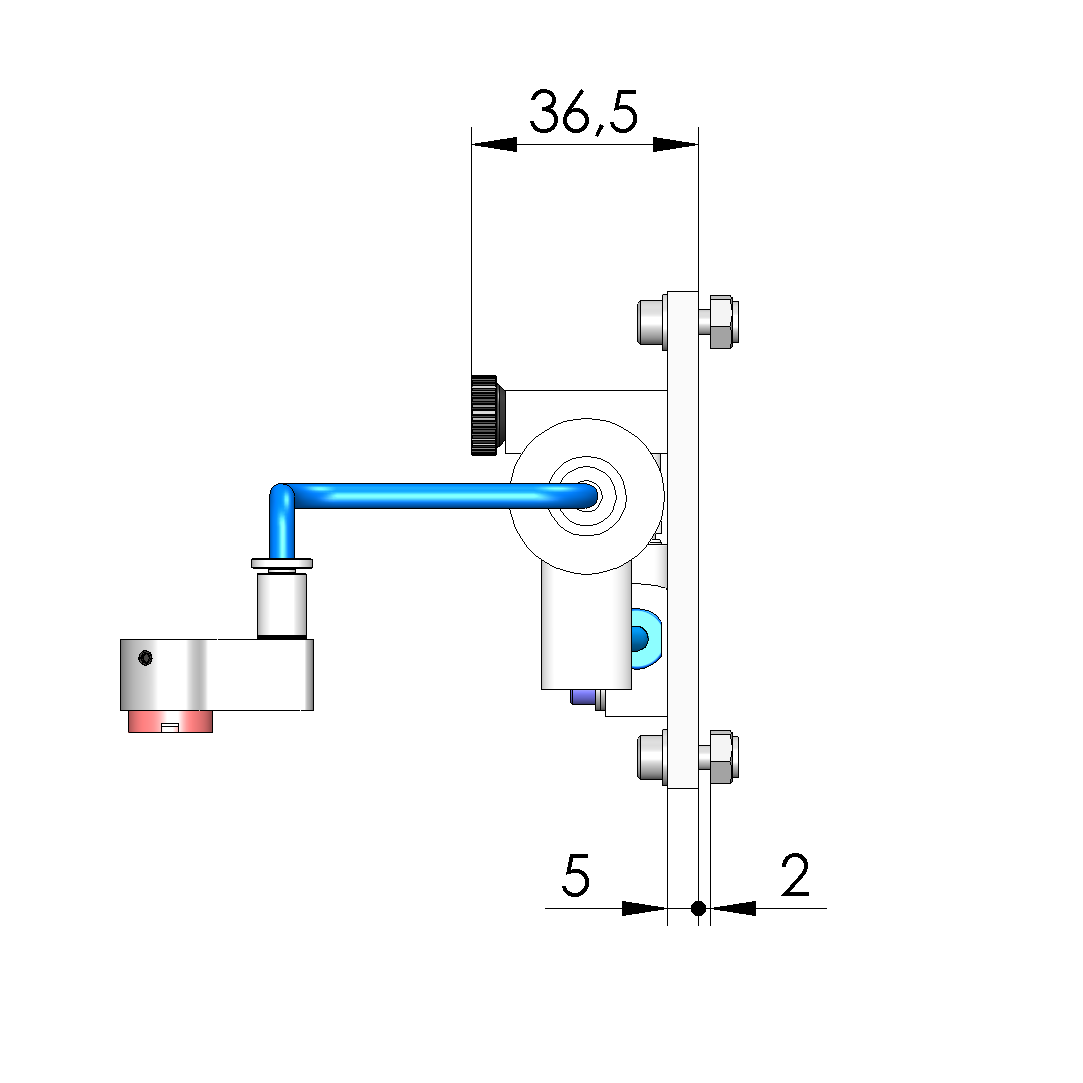

| Outer dimensionS (WxDxH): | 120 x 37 x 80 mm [4.72 x 1.45 x 3.14 in] |
| Product group: | Pneumatic accessory |
| RoHS-compliant: | Yes |
| Scope of delivery: | Pre-assembled |
| Series: | ASV |
| Suction nozzle (WxDxH): | 16 x 31 x 28 mm [.629 x 1.22 x 1.1 in] |
| Type: | Suction device |
| Version: | ME-P |
| Weight: | 0.24 kg [.529 lbs] |
| Width: | 37 mm [1.45 in] |
Login
Product Details
- Suction device for electric board marker probe (ME)
- Suction to remove shavings caused by the marking process
- Removeable collection container (no tools required)
- Quick, easy installation
Other products in this series:
Technical data
General data
- Max. temperature: 60 °C [140 °F]
- Width: 37 mm [1.45 in]
- Version: ME-P
- Scope of delivery: Pre-assembled
- Accessory type: Additional function
- Type: Suction device
- Min. temperature: 10 °C [50 °F]
- Weight: 0.24 kg [.529 lbs]
- RoHS-compliant: Yes
- Product group: Pneumatic accessory
- Series: ASV
- Height: 80 mm [3.14 in]
Technical data
- Compressed air connection: QS-4
- Installation: Thread M4
- Outer dimensionS (WxDxH): 120 x 37 x 80 mm [4.72 x 1.45 x 3.14 in]
- Length: 120 mm [4.72 in]
- Suction nozzle (WxDxH): 16 x 31 x 28 mm [.629 x 1.22 x 1.1 in]
Compatible with
- Board marker probe (ME): ME-P-xx,x-xx-xxx-xxx
