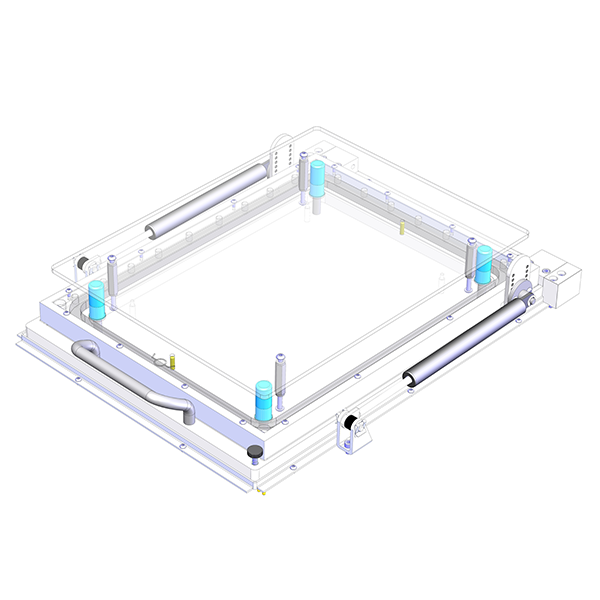

Product information "ZSK-10-VAxx70S"
| Accessory type: | Additional function |
|---|---|
| Contact stroke generation: | Vacuum |
| Exchangeable kits version: | No limitations |
| Free space above PCB: | 5 mm [.196 in] |
| Height: | 75 mm [2.95 in] |
| Length: | 444 mm [17.4 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 360 x 444 x 75 mm [14.1 x 17.4 x 2.95 in] |
| Parallel stroke: | 10 mm [.393 in] |
| Pressure frame opening angle: | 85 ° |
| Product group: | Mounted units |
| Pushrod length: | 15 mm [.59 in] |
| Series: | ZSK-VAxxxx |
| Test probe installation height, top: | 10.5 mm [.413 in] |
| Type: | ZSK-VA-P |
| Useable area (WxD): | 190 x 290 mm [7.48 x 11.4 in] |
| Version: | Top single-stage |
| Weight: | 4.7 kg [10.3 lbs] |
| Width: | 360 mm [14.1 in] |
Login
Other products in this series:
Technical data
Technical data
- Free space above PCB: 5 mm [.196 in]
- Length: 444 mm [17.4 in]
- Outer dimensionS (WxDxH): 360 x 444 x 75 mm [14.1 x 17.4 x 2.95 in]
- Pressure frame opening angle: 85 °
- Pushrod length: 15 mm [.59 in]
- Parallel stroke: 10 mm [.393 in]
- Useable area (WxD): 190 x 290 mm [7.48 x 11.4 in]
- Test probe installation height, top: 10.5 mm [.413 in]
General data
- Max. temperature: 60 °C [140 °F]
- Contact stroke generation: Vacuum
- Height: 75 mm [2.95 in]
- Product group: Mounted units
- Accessory type: Additional function
- Type: ZSK-VA-P
- Min. temperature: 10 °C [50 °F]
- Weight: 4.7 kg [10.3 lbs]
- Width: 360 mm [14.1 in]
- Version: Top single-stage
- Series: ZSK-VAxxxx
Compatible with
- Exchangeable kits version: No limitations
