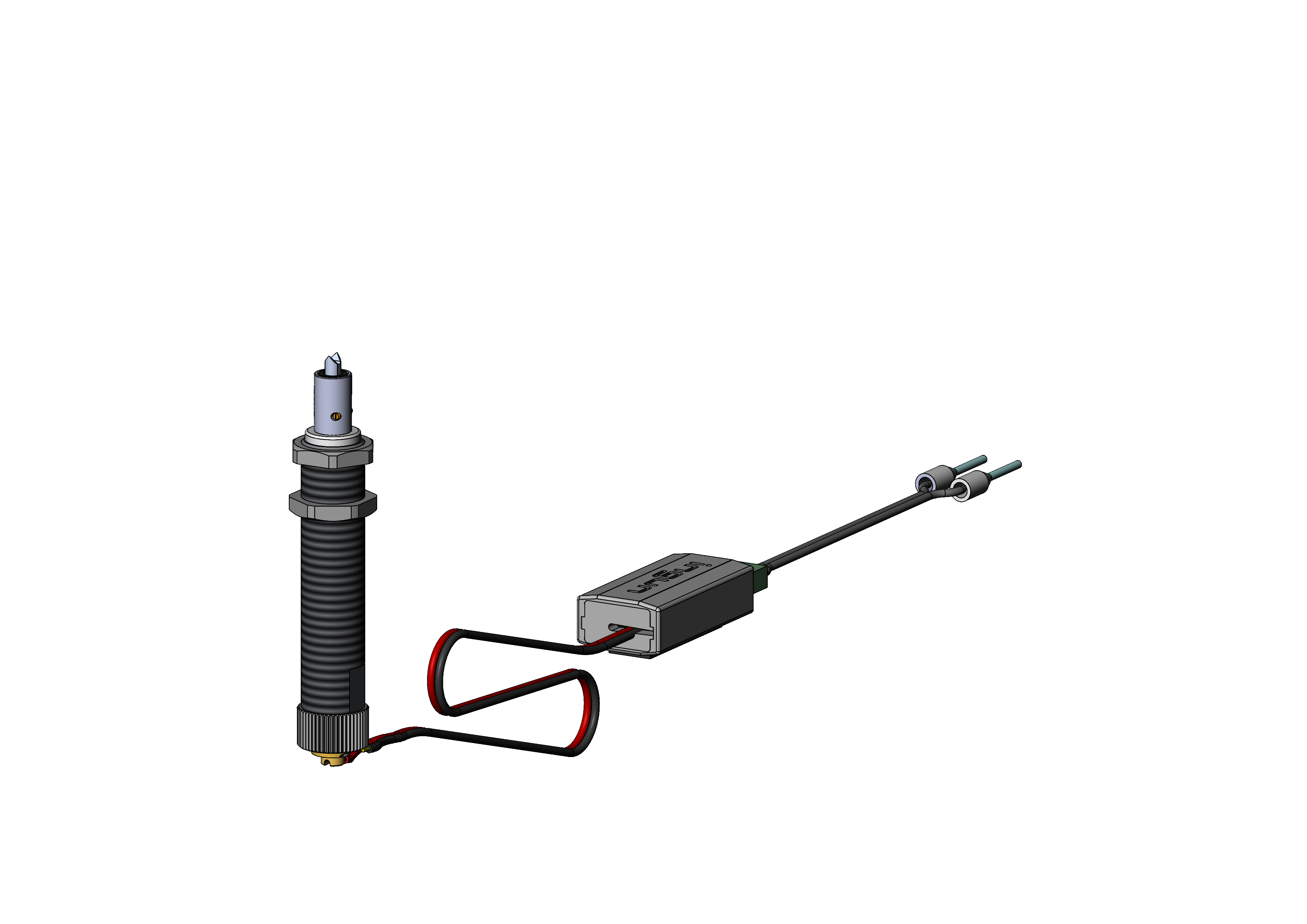

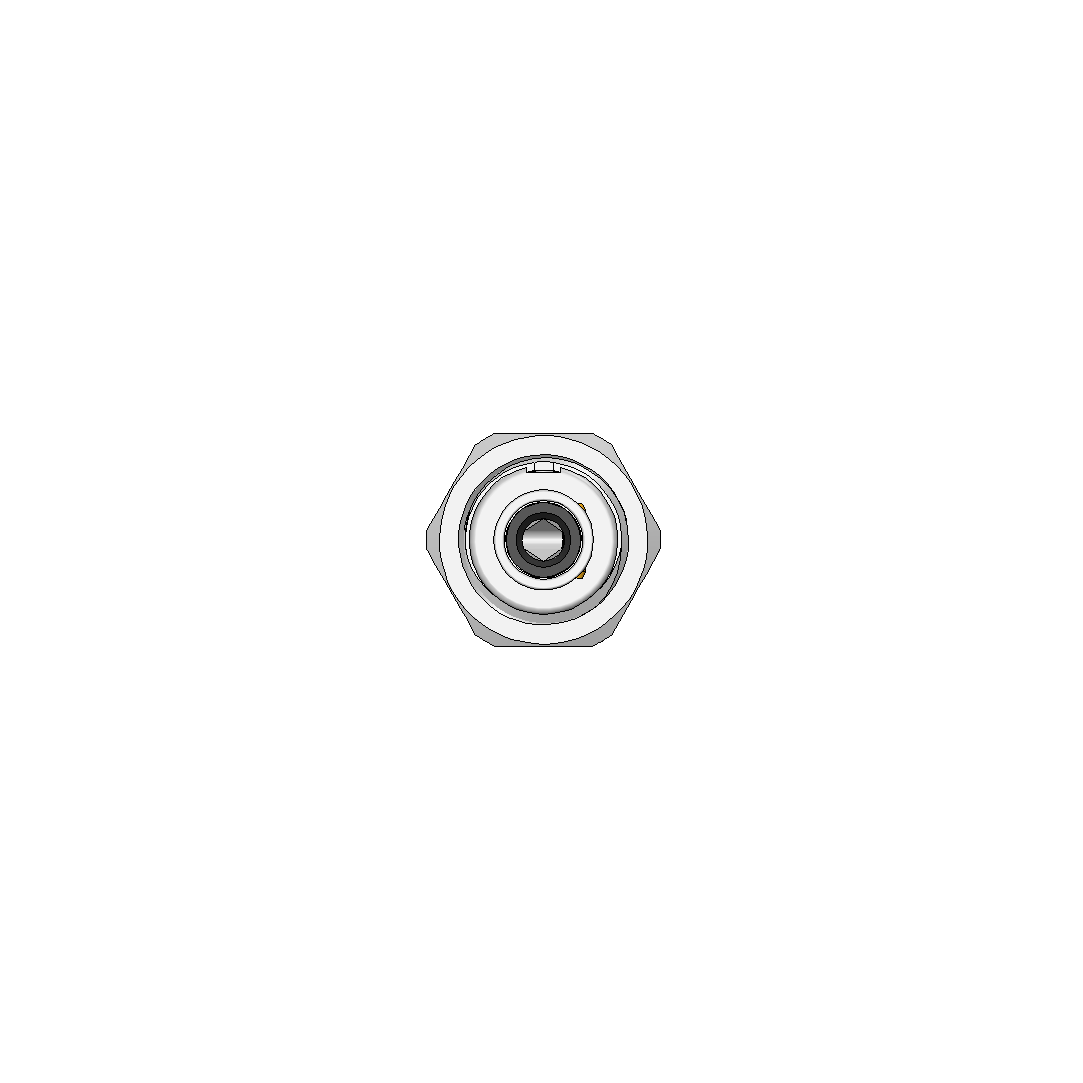

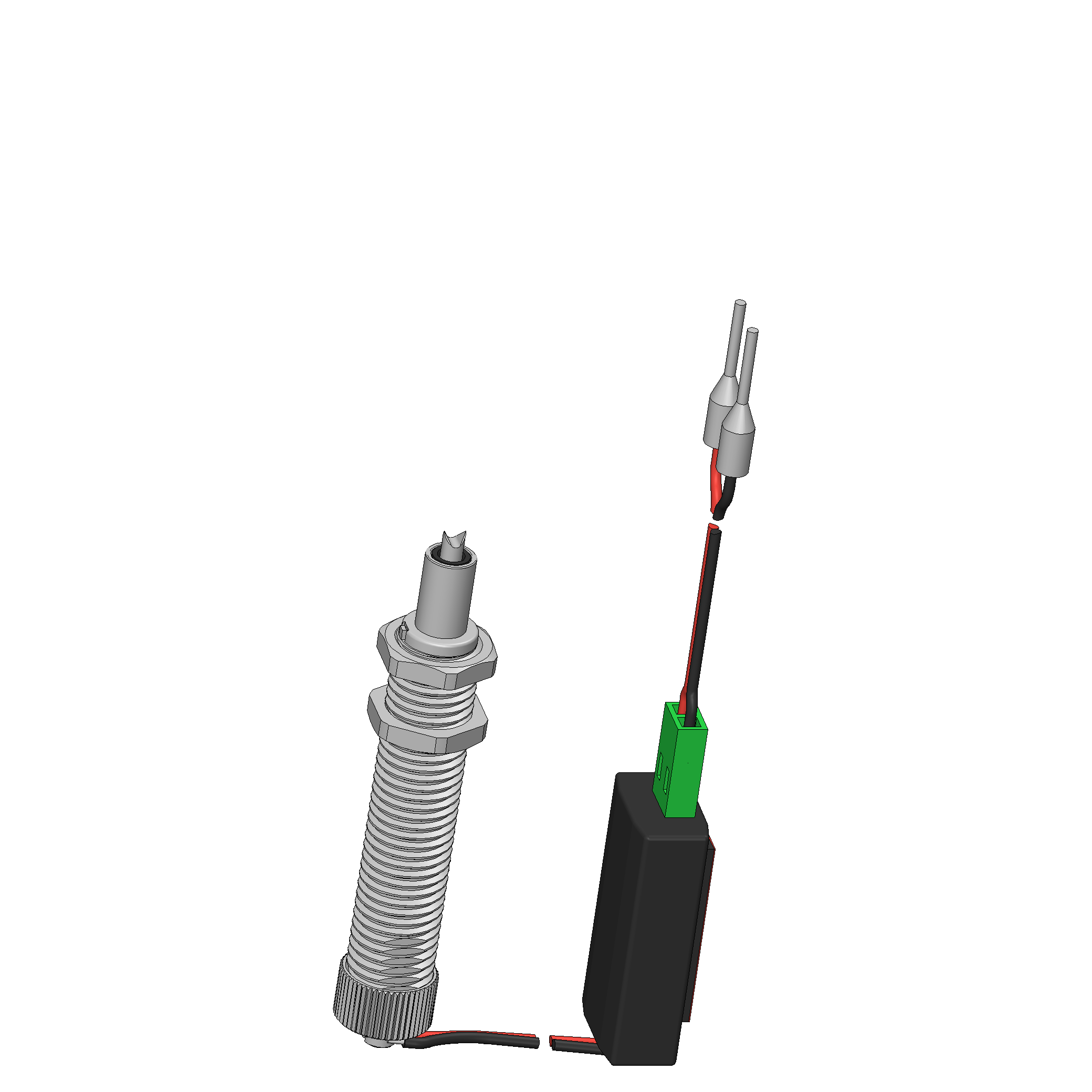

Product information "ME-E-R2,0-08-053-2S-BL6V-42V"
- Short, compact design
- Marking tip with a new dual scratching engraver
- Precise, adjustable positioning

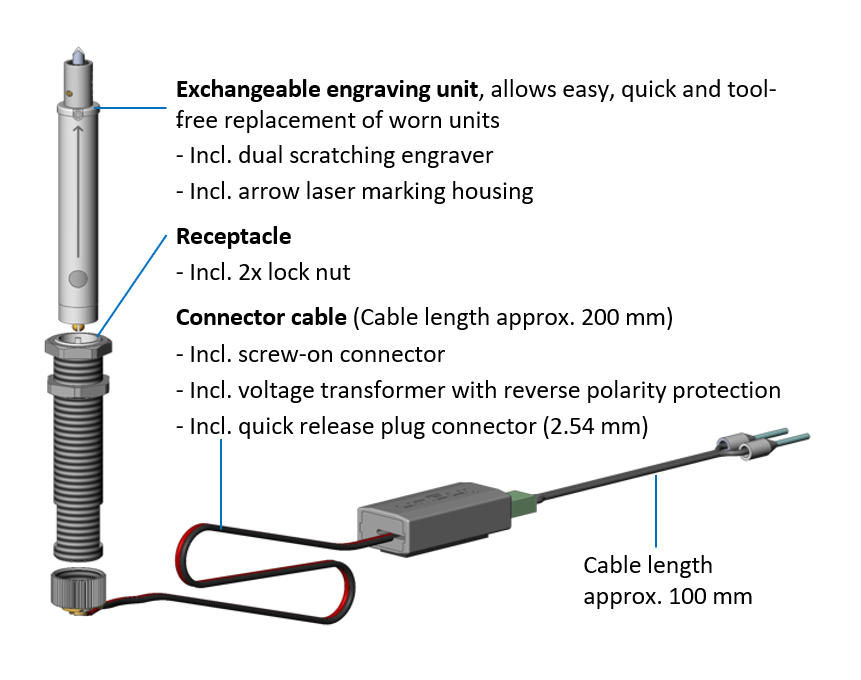

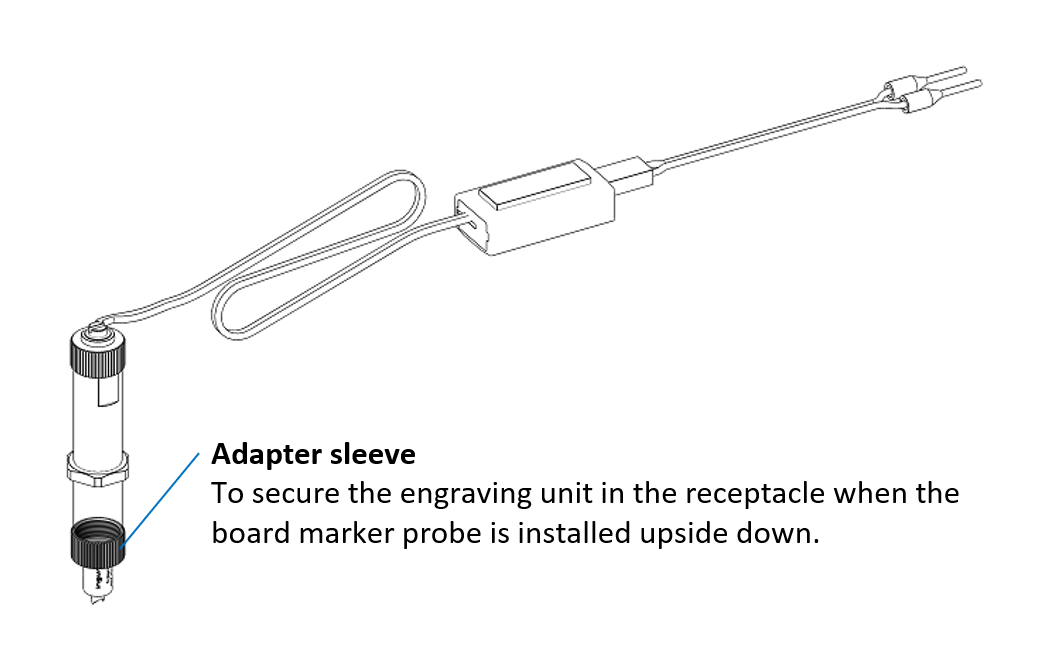

- Quick-exchange engraving unit
- Operating voltage from 6 V to 42 V
- Permanent marking of various materials
- Outstanding service life, highly resistant to wear
- Typical extraction force from receptacle: 3 N to 9.5 N
| Accessory type: | Customising accessories |
|---|---|
| Approx. compression at working stroke: | 3 N [10.7 ozf] |
| Approx. engraver hardness: | 1600 HV |
| Approx. idle speed: | 138 U/min |

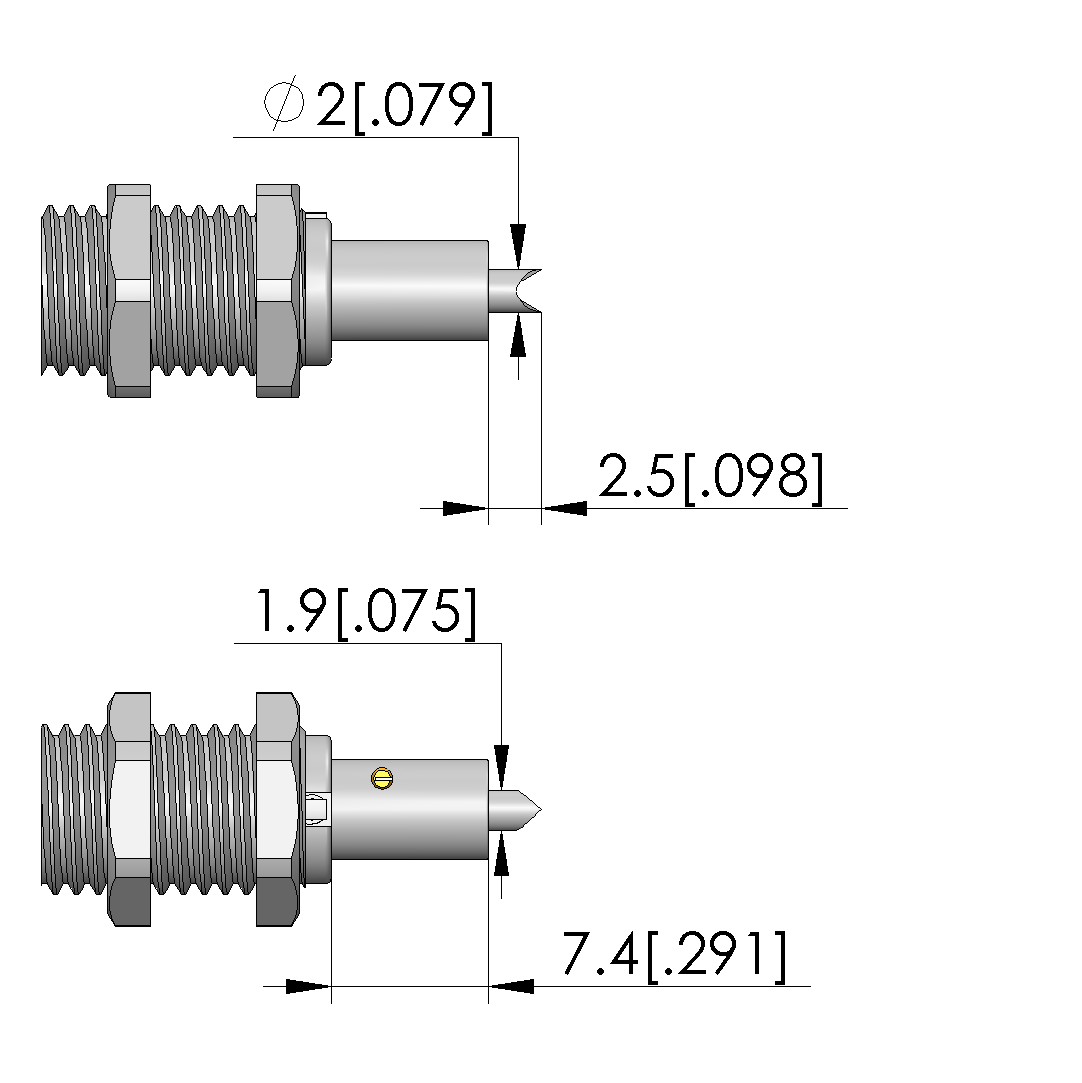

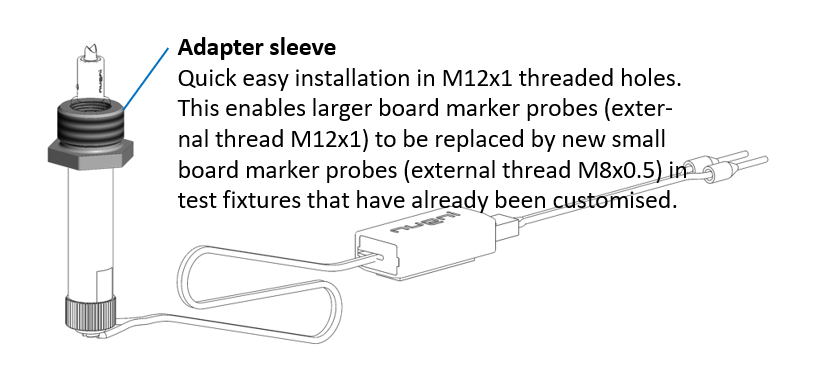

| Approx. marking Ø: | 2 mm [.078 in] |
| Drive: | Electric gear motor |
| Engraver material: | Solid carbide |
| Lock nut width across flats: | 10 mm [.393 in] |
| MA exchangeable kits (ATS MA): | no name |
| Manual test fixtures (MA): | MA 20xx |
| Marking tip: | Double-tip scratching engraver |
| Marking type: | Circle |
| Max. load current: | 10 mA |
| Max. temperature: | 60 °C [140 °F] |
| Max. torque: | 29 mNm [.256 lbf·in] |
| Maximum stroke (ME): | 1.6 mm [.062 in] |
| Min. temperature: | 10 °C [50 °F] |
| Motor connection via: | Plug connector |
| No-load current: | 5 mA |
| Noise emission: | |
| Outer dimensions (TxL): | 8 x 53 mm [.314 x 2.08 in] |
| Outer thread: | M8 x 0,5 |
| PA exchangeable kits (ATS PA): | ATS PAZxxx, ATS PAxxxx |
| Product group: | Board marker probes (ME) |
| Rated output: | .12 W |
| Rated voltage: | 12 V DC |
| Recommended marking impulse: | 1 s |
| Recommended working stroke: | 1 mm [.039 in] |
| RoHS-compliant: | Yes |
| Series: | ME-E |
| Starting current: | 25 mA |
| Surface material: | Hard / soft |
| VA exchangeable kits (ATS VA): | ATS VINxxx |
| Vacuum test fixtures (VA): | VA xxxx |
| Version: | Electrical |
| Weight: | 0.02 kg [.044 lbs] |
Login
Product Details
- Short, compact design
- Marking tip with a new dual scratching engraver
- Precise, adjustable positioning
- Quick-exchange engraving unit
- Operating voltage from 6 V to 42 V
- Permanent marking of various materials
- Outstanding service life, highly resistant to wear
- Typical extraction force from receptacle: 3 N to 9.5 N
Other products in this series:
Technical data
Technical data
- Starting current: 25 mA
- Noise emission:
- Recommended working stroke: 1 mm [.039 in]
- Approx. idle speed: 138 U/min
- Max. load current: 10 mA
- Drive: Electric gear motor
- Recommended marking impulse: 1 s
- Rated voltage: 12 V DC
- No-load current: 5 mA
- Approx. compression at working stroke: 3 N [10.7 ozf]
- Marking tip: Double-tip scratching engraver
- Rated output: .12 W
- Motor connection via: Plug connector
- Approx. engraver hardness: 1600 HV
- Engraver material: Solid carbide
- Maximum stroke (ME): 1.6 mm [.062 in]
- Max. torque: 29 mNm [.256 lbf·in]
General data
- Max. temperature: 60 °C [140 °F]
- Outer thread: M8 x 0,5

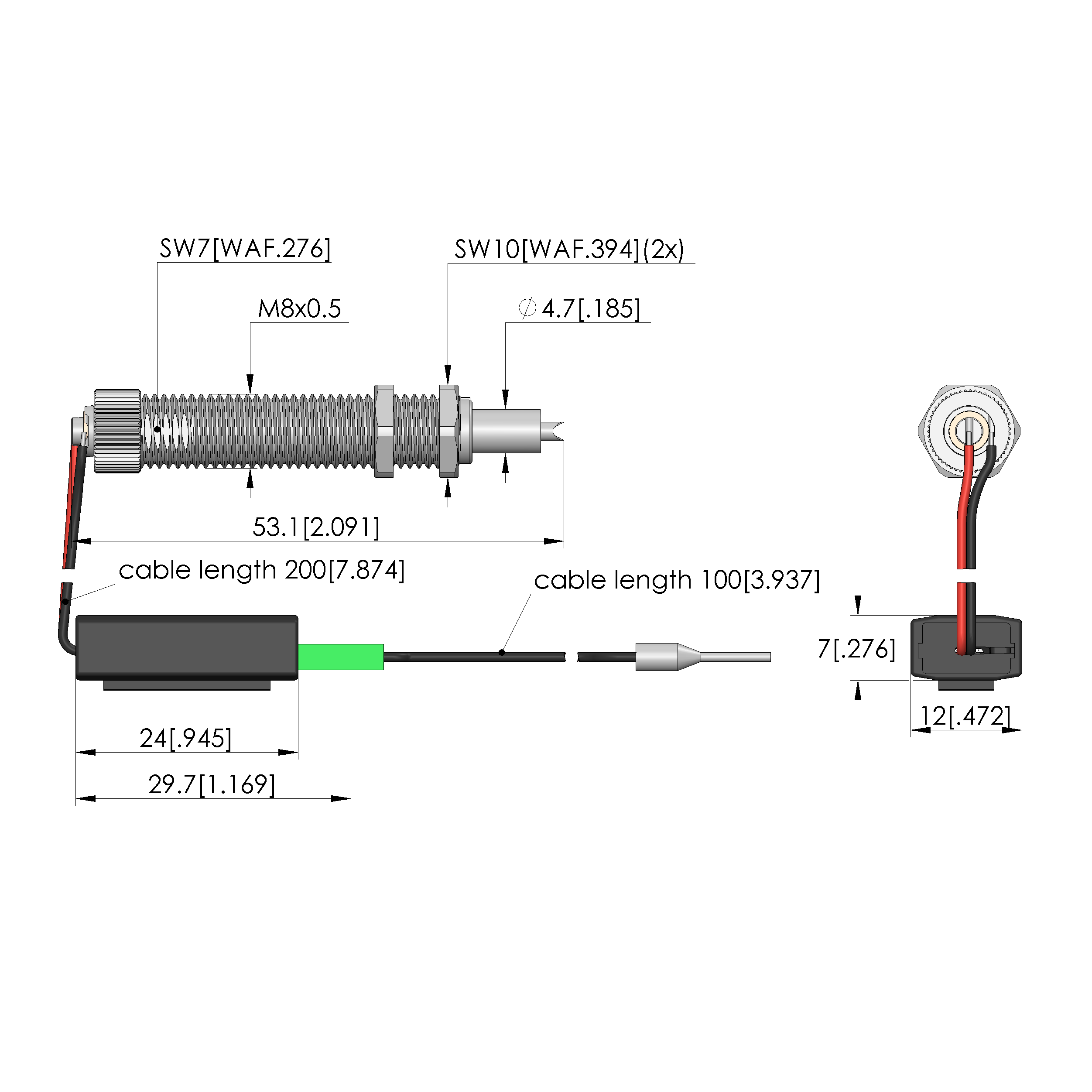

- Outer dimensions (TxL): 8 x 53 mm [.314 x 2.08 in]
- Lock nut width across flats: 10 mm [.393 in]
- Accessory type: Customising accessories
- Version: Electrical
- Approx. marking Ø: 2 mm [.078 in]
- Min. temperature: 10 °C [50 °F]
- Product group: Board marker probes (ME)
- RoHS-compliant: Yes
- Marking type: Circle
- Weight: 0.02 kg [.044 lbs]
- Series: ME-E
- Surface material: Hard / soft
Compatible with
- PA exchangeable kits (ATS PA): ATS PAxxxx

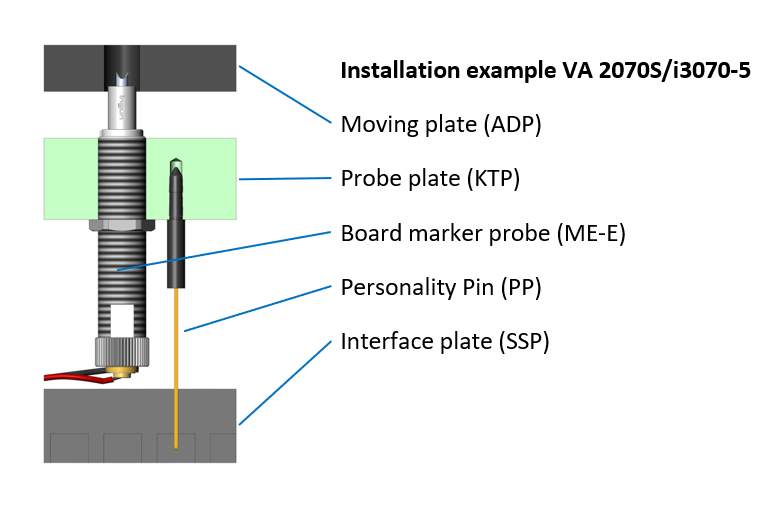

- Vacuum test fixtures (VA): VA xxxx
- PA exchangeable kits (ATS PA): ATS PAZxxx
- Manual test fixtures (MA): MA 20xx
- MA exchangeable kits (ATS MA): no name
- VA exchangeable kits (ATS VA): ATS VINxxx
