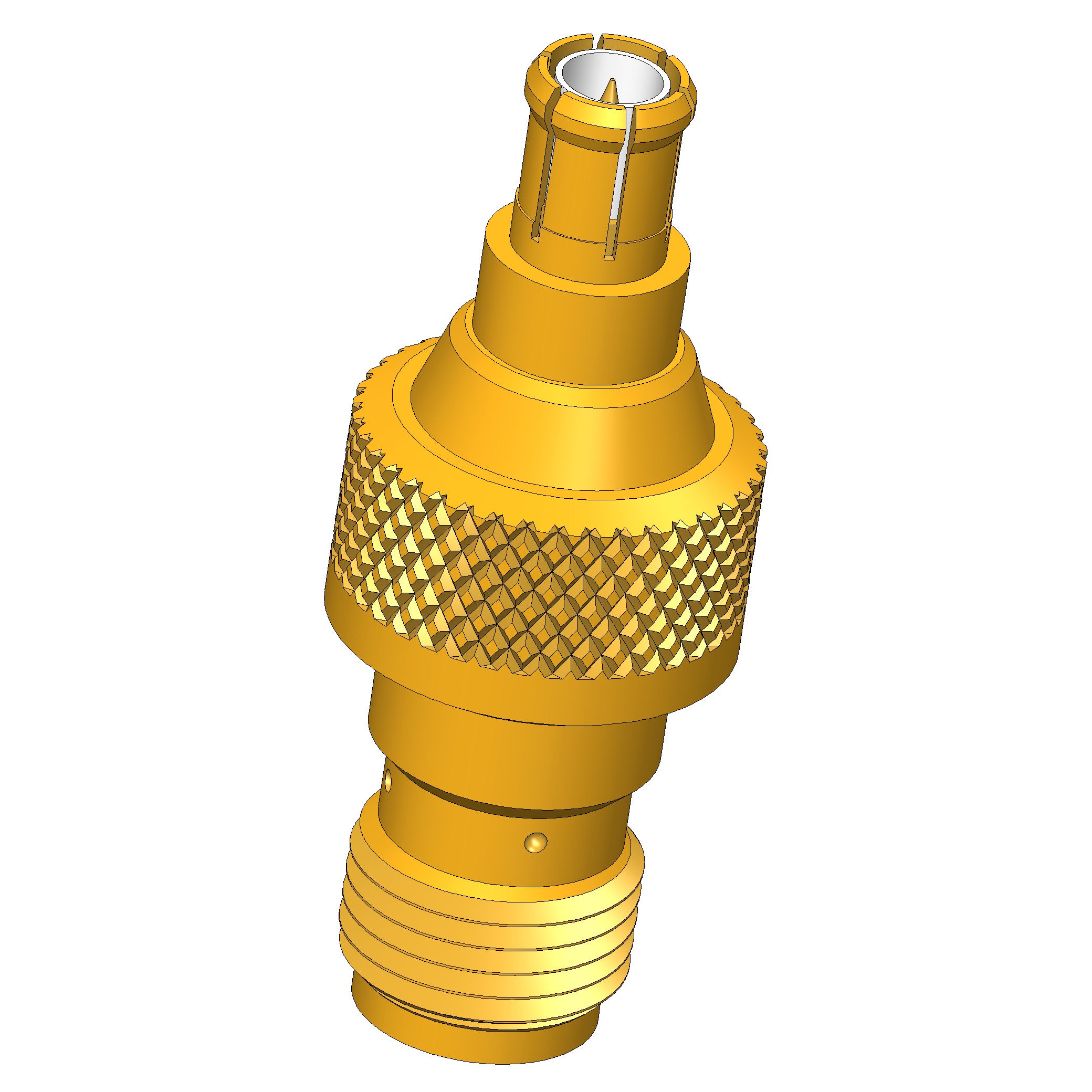

Product information "HFS-ADA-MCX-M-SMA-F"
- To adapt the interface of radio-frequency probes in the HFS-810, HFS-840, HFS-860, HFS-410 and HFS-440 series.
| Impedance: | 50 Ohm |
|---|---|
| Interface 1: | MCX |
| Interface 2: | SMA |
| Interface gender 1: | M signal conductor male / plug |
| Interface gender 2: | F signal conductor female / socket |
| Max. temperature: | 125 °C [257 °F] |
| Maximum frequency: | 6 GHz |
| Min. temperature: | -55 °C [-67 °F] |
| Moment interface 2: | 45 cNm [3.98 lbf·in] |
| Product group: | Test fixture (HFS-ADA) |
| RoHS-compliant: | Yes |
| Series: | RF ADA fixture |
| Sub-series: | RF ADA fixture |
| Version 1: | Straight |
| Version 2: | Straight |
Login
Product Details
- To adapt the interface of radio-frequency probes in the HFS-810, HFS-840, HFS-860, HFS-410 and HFS-440 series.
Other products in this series:
Technical data
General data
- Product group: Test fixture (HFS-ADA)
- Series: RF ADA fixture
- Sub-series: RF ADA fixture
- Min. temperature: -55 °C [-67 °F]
- Max. temperature: 125 °C [257 °F]
- RoHS-compliant: Yes
Connector data

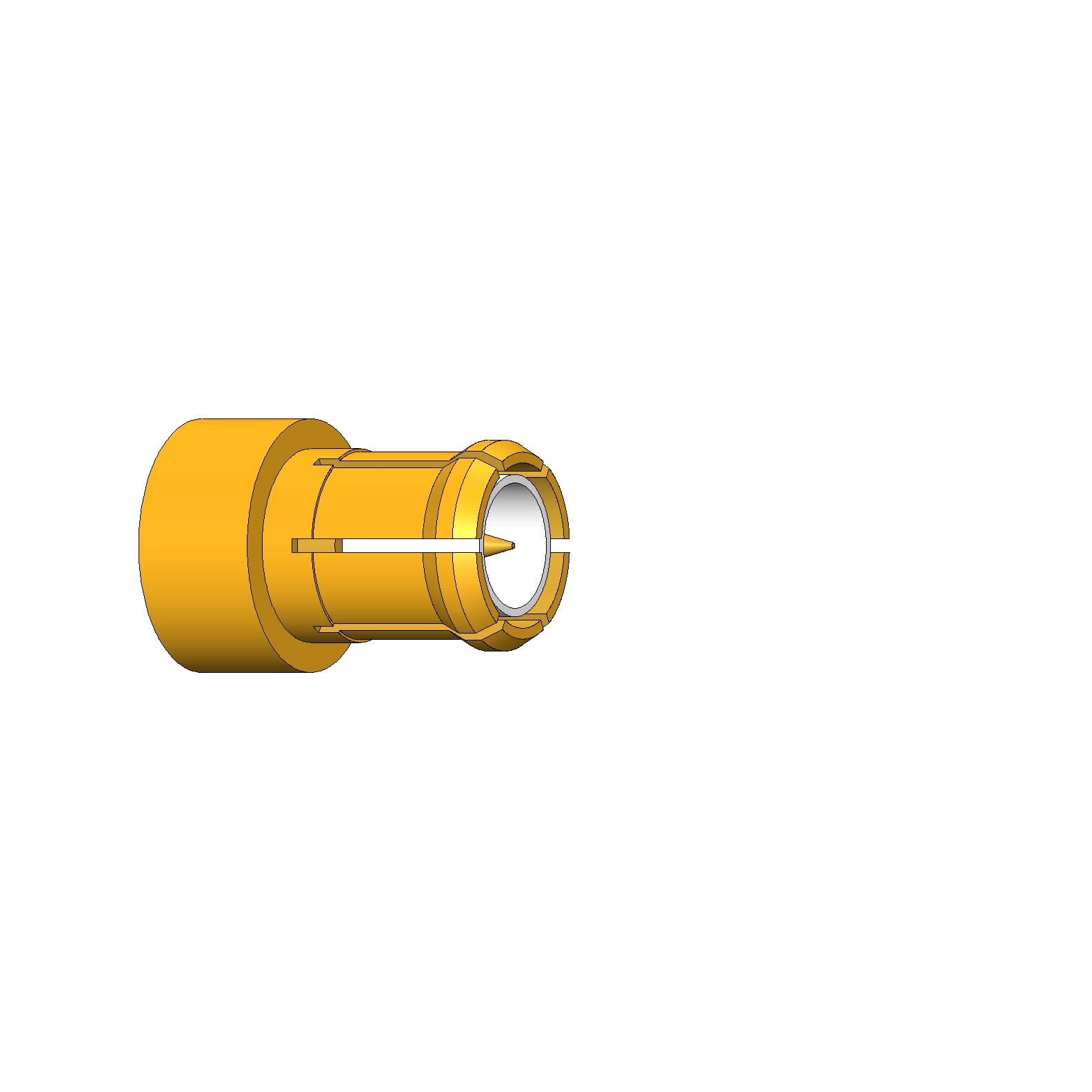

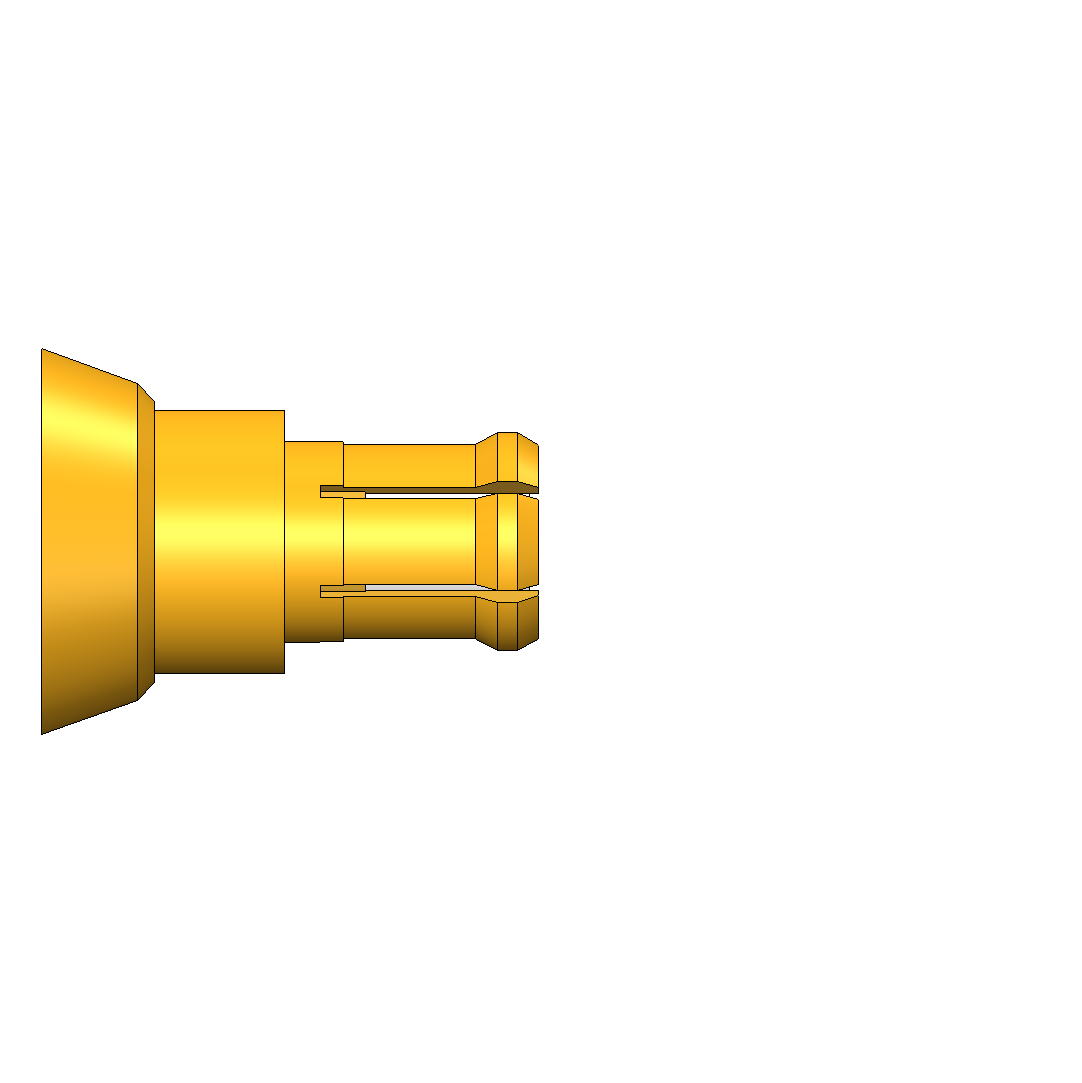

- Interface 1: MCX
- Interface gender 1: M signal conductor male / plug
- Version 1: Straight

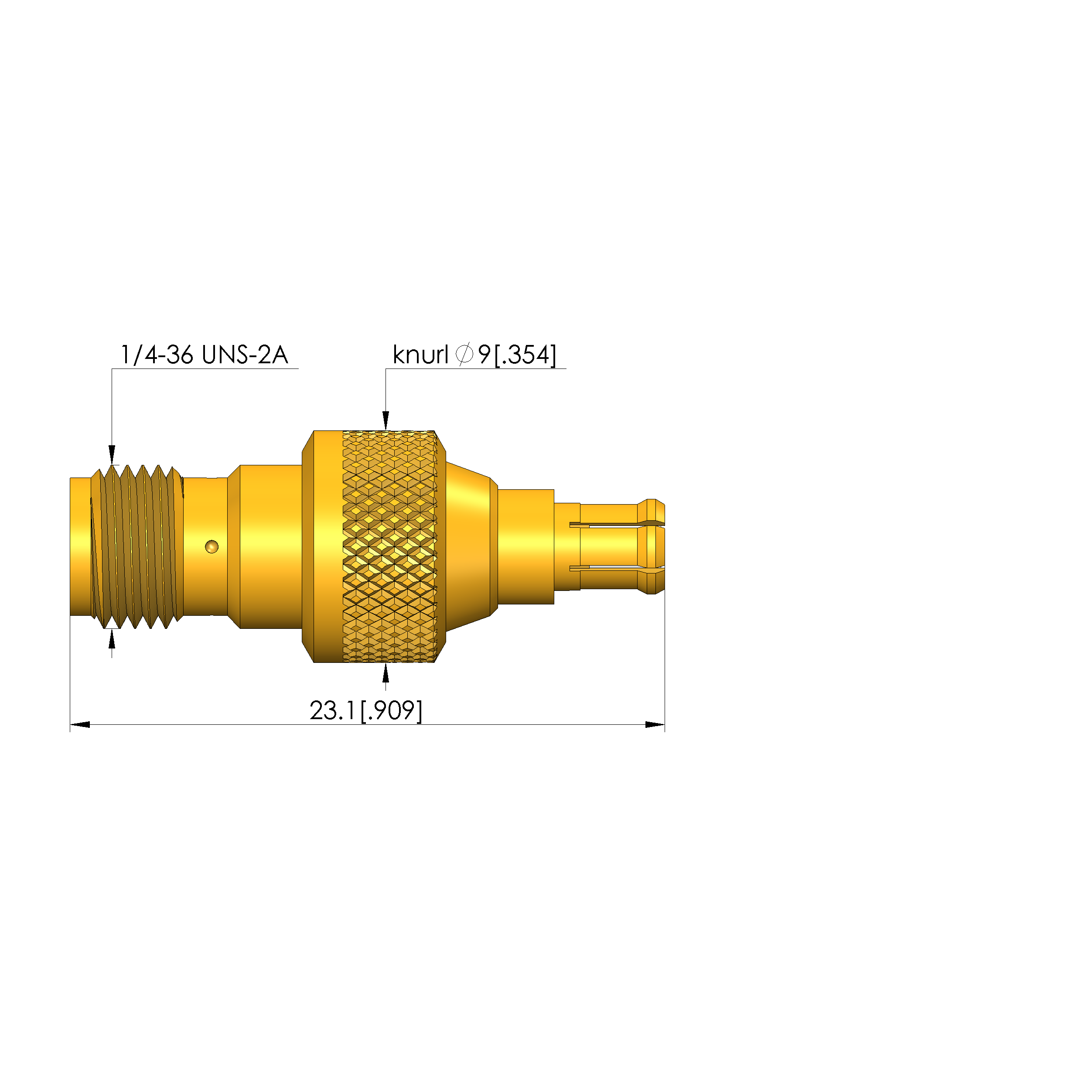

- Interface 2: SMA
- Interface gender 2: F signal conductor female / socket
- Version 2: Straight
- Moment interface 2: 45 cNm [3.98 lbf·in]
Electrical data
- Maximum frequency: 6 GHz
- Impedance: 50 Ohm
