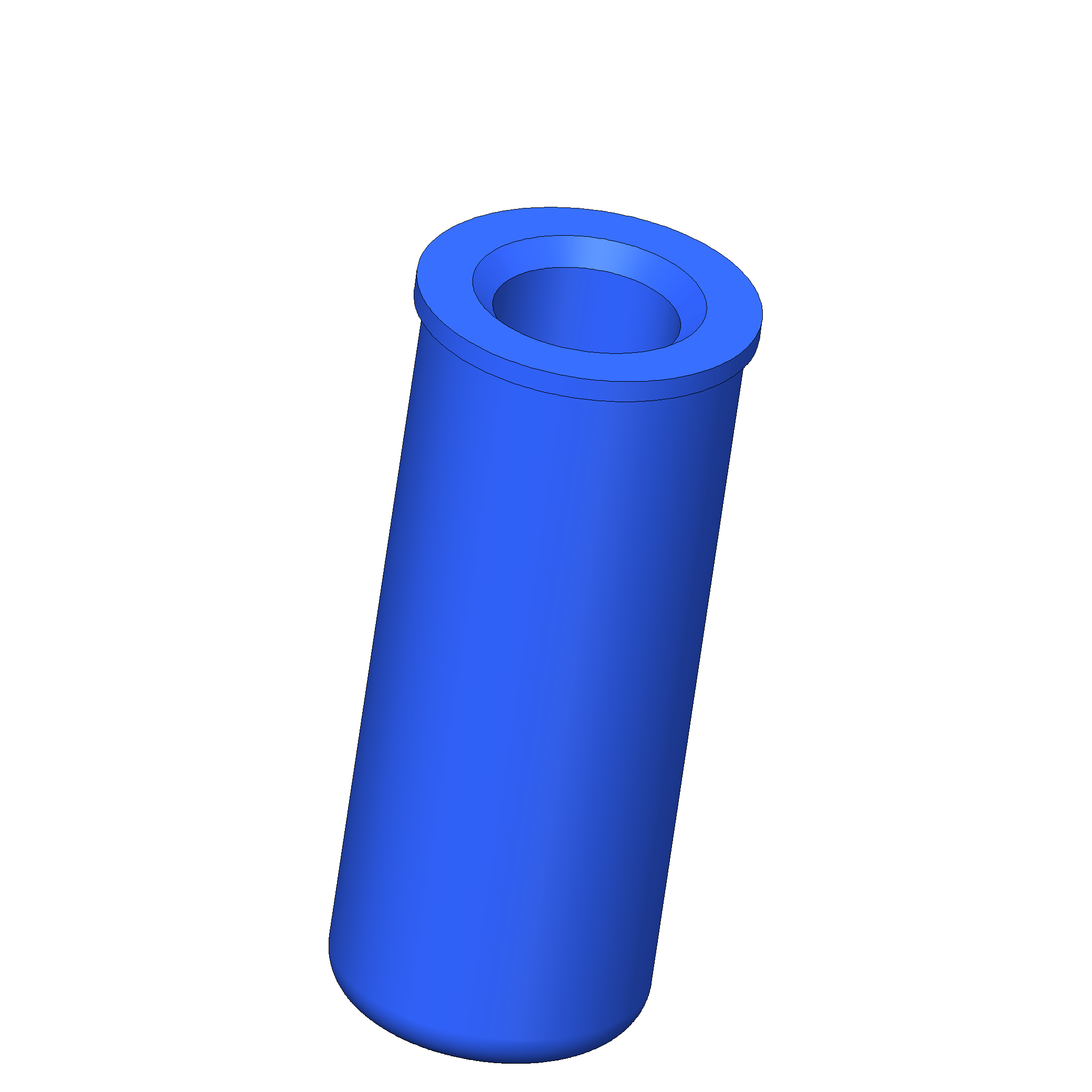

Product information "FUB-08-14-35-POM-BL-B"
- HIgh-precision guide bush
- Precise, low-friction contacting
- Centring accuracy of +/- 0.075 mm in combination with guide pins #2229 #2230
- Quick, easy installation
| Accessory type: | Customising accessories |
|---|---|
| Colour: | Blue |

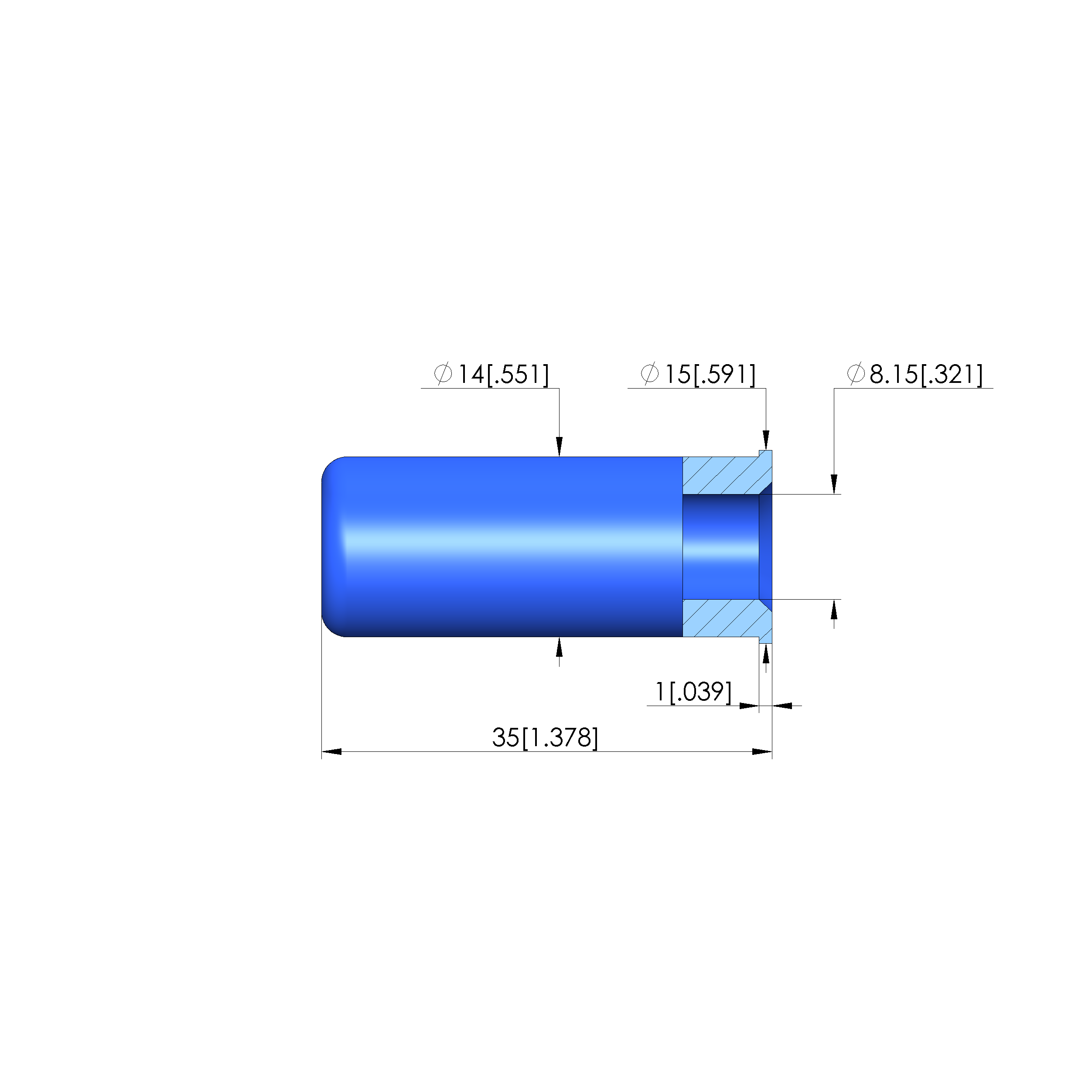

| Diameter: | 14 mm [.551 in] |
| Inner diameter: | 8.2 mm [.322 in] |
| Installation: | Pressed in |
| Length: | 35 mm [1.37 in] |
| Material: | POM |
| Product group: | Mechanical accessory |
| RoHS-compliant: | Yes |
| Series: | FU |
| Type: | Guide bush |
| Vacuum test fixtures (VA): | VA xxxx |
| Version: | With collar 1 x d15 mm |
Login
Product Details
- HIgh-precision guide bush
- Precise, low-friction contacting
- Centring accuracy of +/- 0.075 mm in combination with guide pins #2229 #2230
- Quick, easy installation
Other products in this series:
Technical data
General data
- Colour: Blue
- Type: Guide bush
- Material: POM
- Accessory type: Customising accessories
- Series: FU
- Product group: Mechanical accessory
- Version: With collar 1 x d15 mm
- RoHS-compliant: Yes
Technical data
- Inner diameter: 8.2 mm [.322 in]
- Diameter: 14 mm [.551 in]
- Length: 35 mm [1.37 in]
- Installation: Pressed in
Compatible with
- Vacuum test fixtures (VA): VA xxxx
