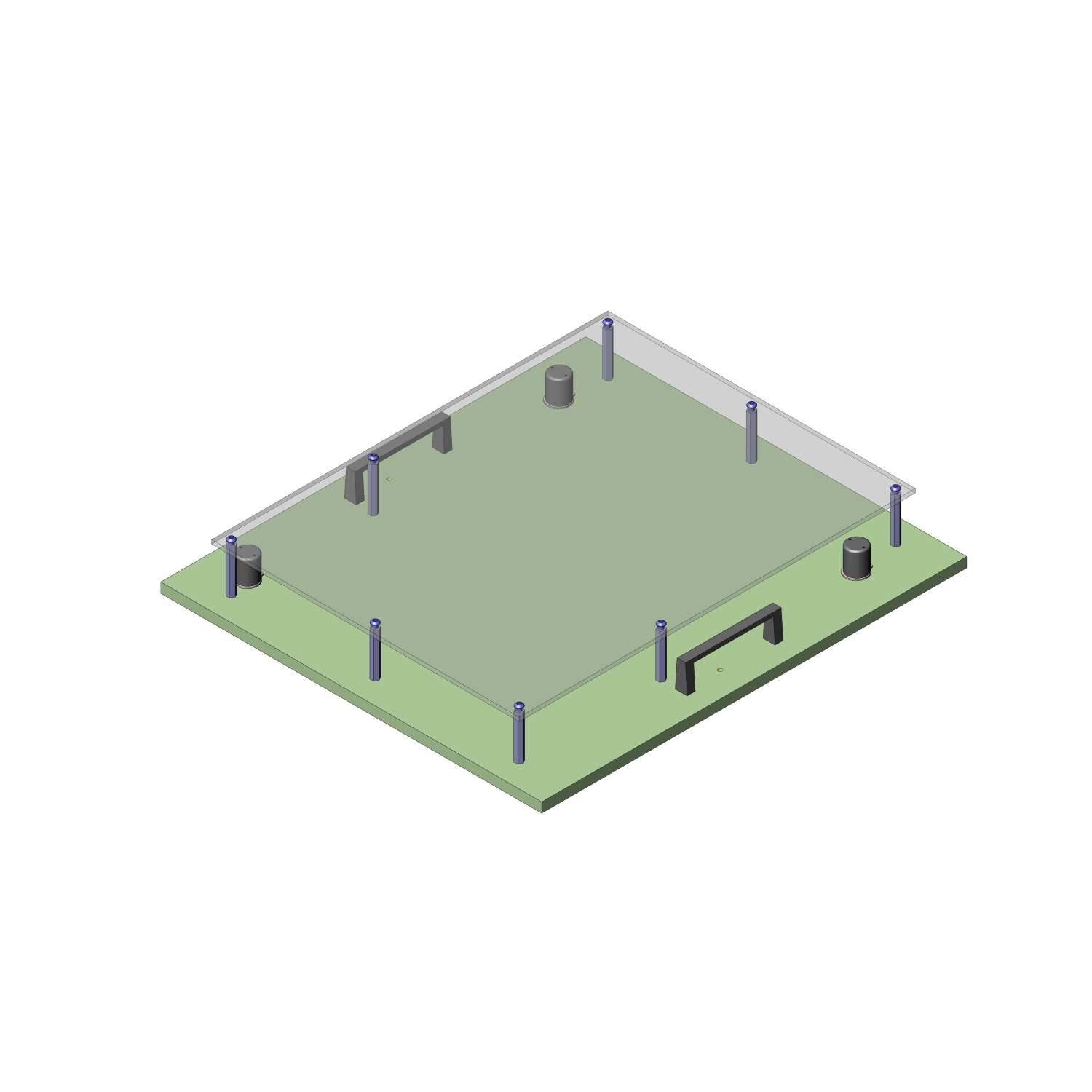

Product information "ATS ZSKVAxx70S/FR4"
| Free space above PCB: | 10 mm [.393 in] |
|---|---|
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 389 x 434 x 59 mm [15.3 x 17 x 2.32 in] |
| Product group: | no name |
| Pushrod length: | 15 mm [.59 in] |
| RoHS-compliant: | Yes |
| Series: | ATS ZSK |
| Test probe installation height, top: | 16 mm [.629 in] |
| Useable area (WxD): | 275 x 350 mm [10.8 x 13.7 in] |
| Version: | Without interface |
Login
Other products in this series:
Technical data
Technical data
- Pushrod length: 15 mm [.59 in]
- Test probe installation height, top: 16 mm [.629 in]
- Free space above PCB: 10 mm [.393 in]
- Useable area (WxD): 275 x 350 mm [10.8 x 13.7 in]
- Outer dimensionS (WxDxH): 389 x 434 x 59 mm [15.3 x 17 x 2.32 in]
General data
- Product group: no name
- Series: ATS ZSK
- Version: Without interface
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
