Maximum precision on the connector side
Innovative USB3.1C male test plugs – compact, robust, reliable
USB3.1C plug connectors have become key components in automotive and consumer electronics applications. At the same time, the requirements for signal quality, repeatability and process reliability in test procedures are increasing. It is for exactly this reason that INGUN has developed the new USB3.1C male version: for precise and reliable testing of USB3.1C plug connectors on the connector side.
Robust technology in a compact design

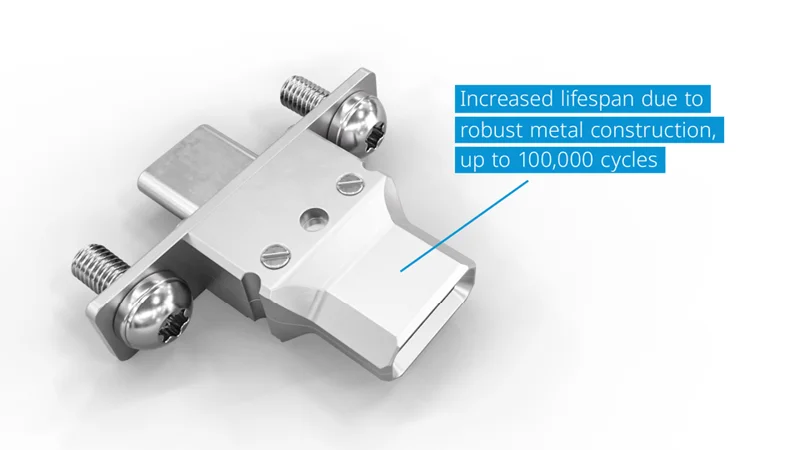

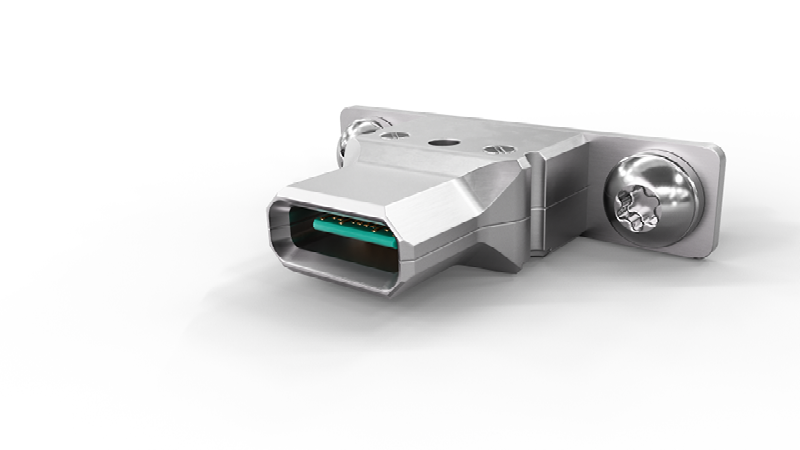

Thanks to its compact design (13.5 × 2 × 7 mm), the test plug can be integrated even in test setups with limited space. The robust metal construction ensures a long service life and stable contacting – also with high mating cycles and high data rates.
Versatile use

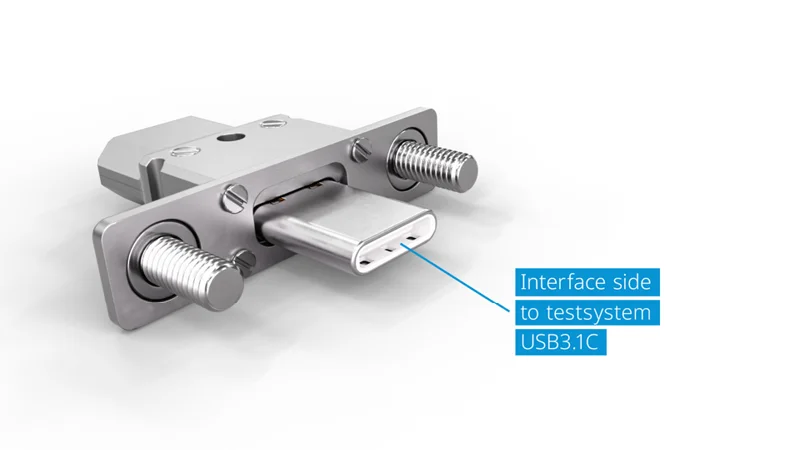

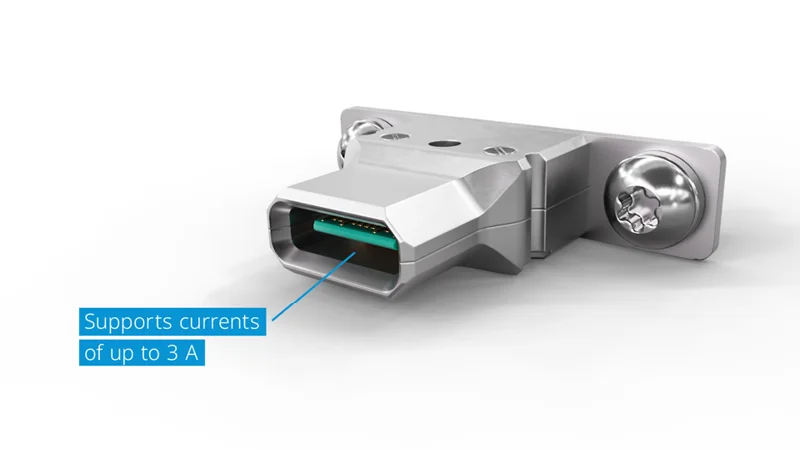

The test plug is integrated into the test fixture and connected via a standard USB3.1C cable, ensuring that it fits seamlessly into the test setup. In addition to plug connector testing, it also enables reliable testing of complete USB-C cables, such as those used for power supply, data transmission and image signal transmission in common USB-C applications.
Proven INGUN quality
As a natural extension of INGUN’s successful USB3.1C test portfolio, the USB3.1C male test plug offers a future-proof solution for stable and repeatable USB-C tests – from development to series testing.
Added value at a glance
Increase the reliability of your USB-C test processes and reduce downtimes and incorrect measurements. The USB3.1C male test plug helps you to achieve this through its compact design, robustness and excellent signal quality.
- Safe testing of USB3.1C male connectors

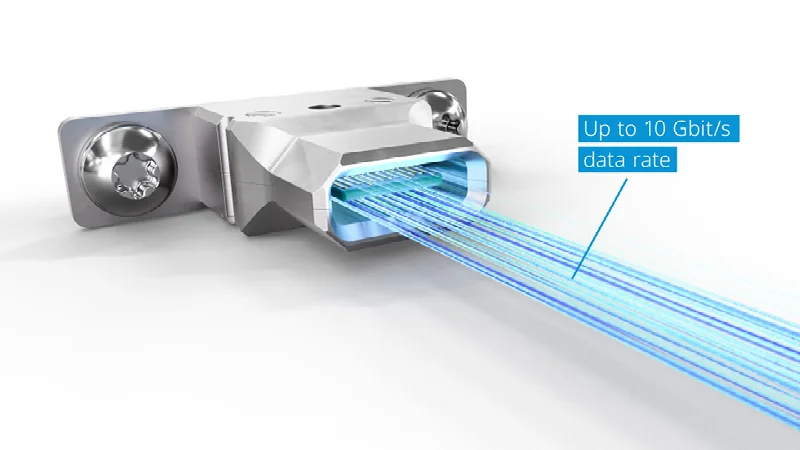

- Excellent data throughput for realistic tests
- High reliability and robustness in series operation

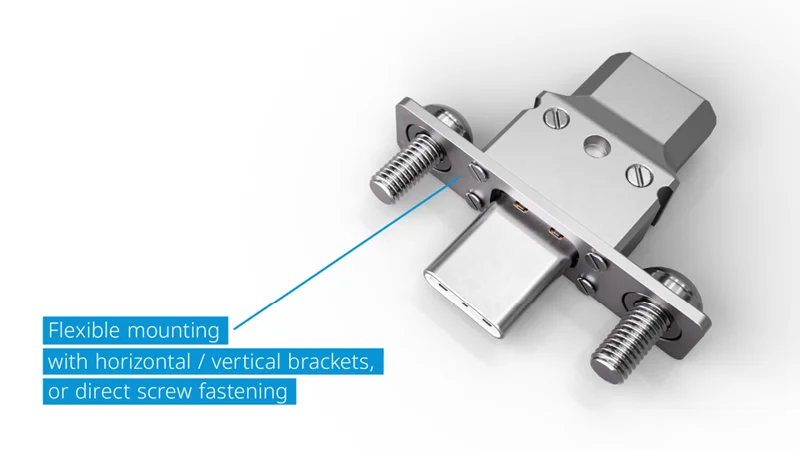

- Flexible integration thanks to horizontal or vertical mounting options
- Compact dimensions for maximum design freedom

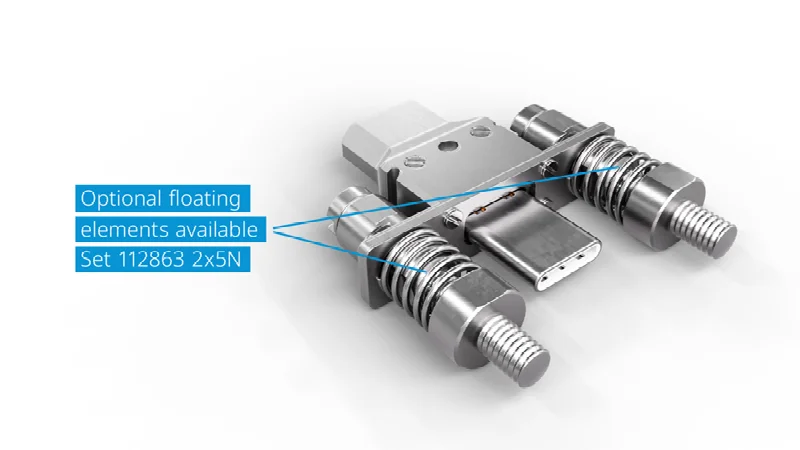

- Spring elements optionally available for optimal compensation of angular errors
Your perfect solution
Got questions?
Talk to our experts. We will be happy to advise you on integration, floating bearing and the optimum test setup for your application. Our customer service team is always there for you. Use the contact form below or simply pick up the phone: +49 7531 8105 888
