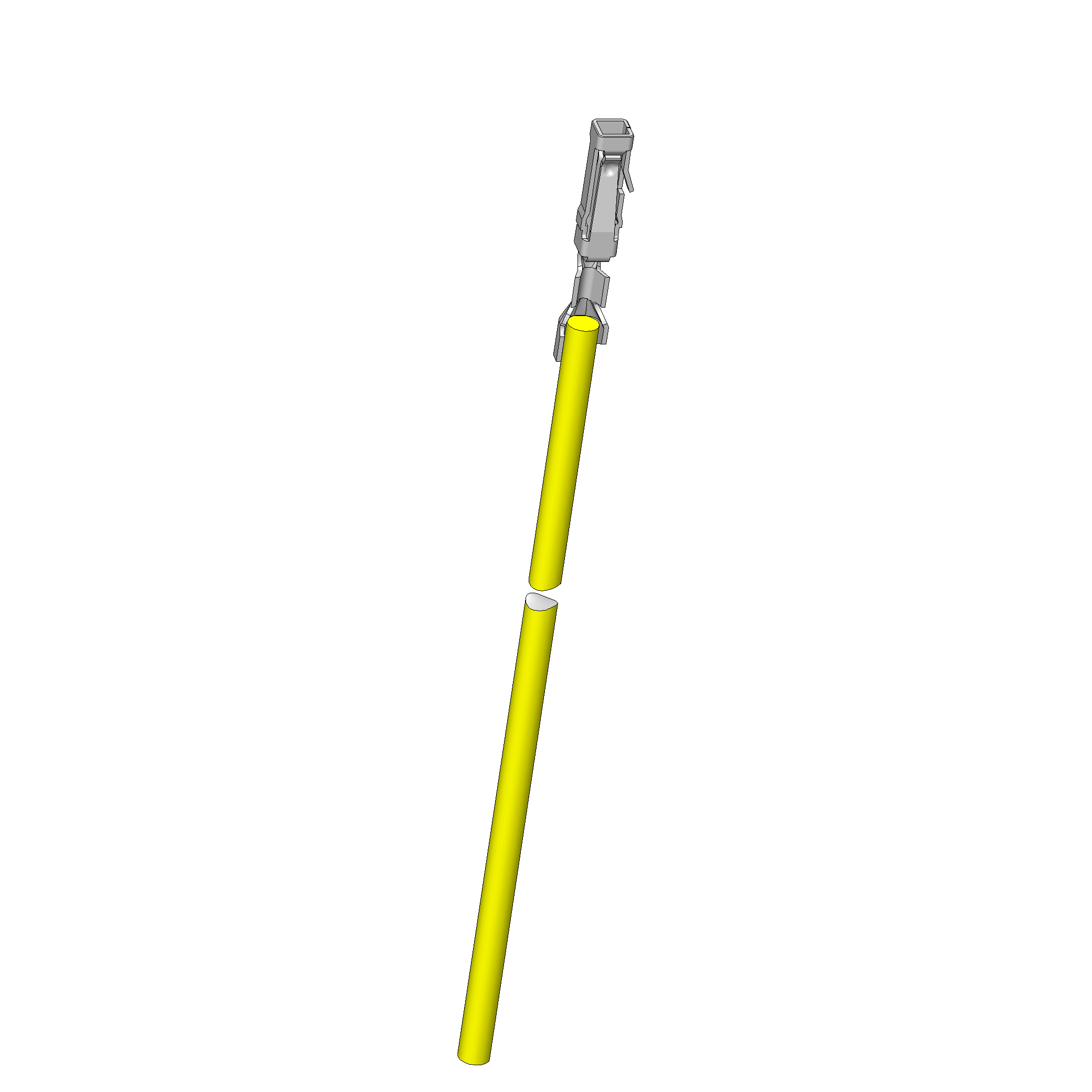

Product information "SLL-CK-AWG26-GE-700"
- Stranded wire with crimp connection for 10-pole/17-pole connector housing
- Consistently stable signal quality throughout
- Flexible stranded wire for the greatest possible freedom of movement
- Crimp connection with internal stop and contact blade which ensures secure clamping with high retention force
| Accessories: | STV-BL10-F-C, STV-BL17-F-C |
|---|---|
| Accessory type: | Customising accessories |
| Cable length: | 700 mm [27.5 in] |
| Colour: | Yellow |
| Connection: | Plug / solder /crimp connection |
| Diameter: | AWG26 mm |
| Force: | 2 N [7.19 ozf] |
| Installation grid: | 2.54 mm [.1 in] |
| Material: | Copper stranded wire, zinc plated |
| Max. current: | 3.6 A |
| Max. temperature: | 80 °C [176 °F] |
| Max. voltage: | 250 V |
| Min. temperature: | -20 °C [-4 °F] |
| Product group: | Electric accessory |
| RoHS-compliant: | Yes |
| Scope of delivery: | Pre-wired |
| Series: | SLL |
| Type: | Stranded wire |
| Typical resistance (Ri) of one GKS: | 85 mOhm |
| Version: | Crimp connection |
Login
Product Details
- Stranded wire with crimp connection for 10-pole/17-pole connector housing
- Consistently stable signal quality throughout
- Flexible stranded wire for the greatest possible freedom of movement
- Crimp connection with internal stop and contact blade which ensures secure clamping with high retention force
Other products in this series:
Technical data
Compatible with
- Accessories: STV-BL10-F-C
- Accessories: STV-BL17-F-C
General data
- Product group: Electric accessory
- Series: SLL
- Type: Stranded wire
- Version: Crimp connection
- Accessory type: Customising accessories
- Scope of delivery: Pre-wired
- Material: Copper stranded wire, zinc plated
- Colour: Yellow
- Min. temperature: -20 °C [-4 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Technical data
- Connection: Plug / solder /crimp connection
- Force: 2 N [7.19 ozf]
- Max. current: 3.6 A
- Max. voltage: 250 V
- Installation grid: 2.54 mm [.1 in]
- Diameter: AWG26 mm
- Cable length: 700 mm [27.5 in]
Electrical data
- Typical resistance (Ri) of one GKS: 85 mOhm
