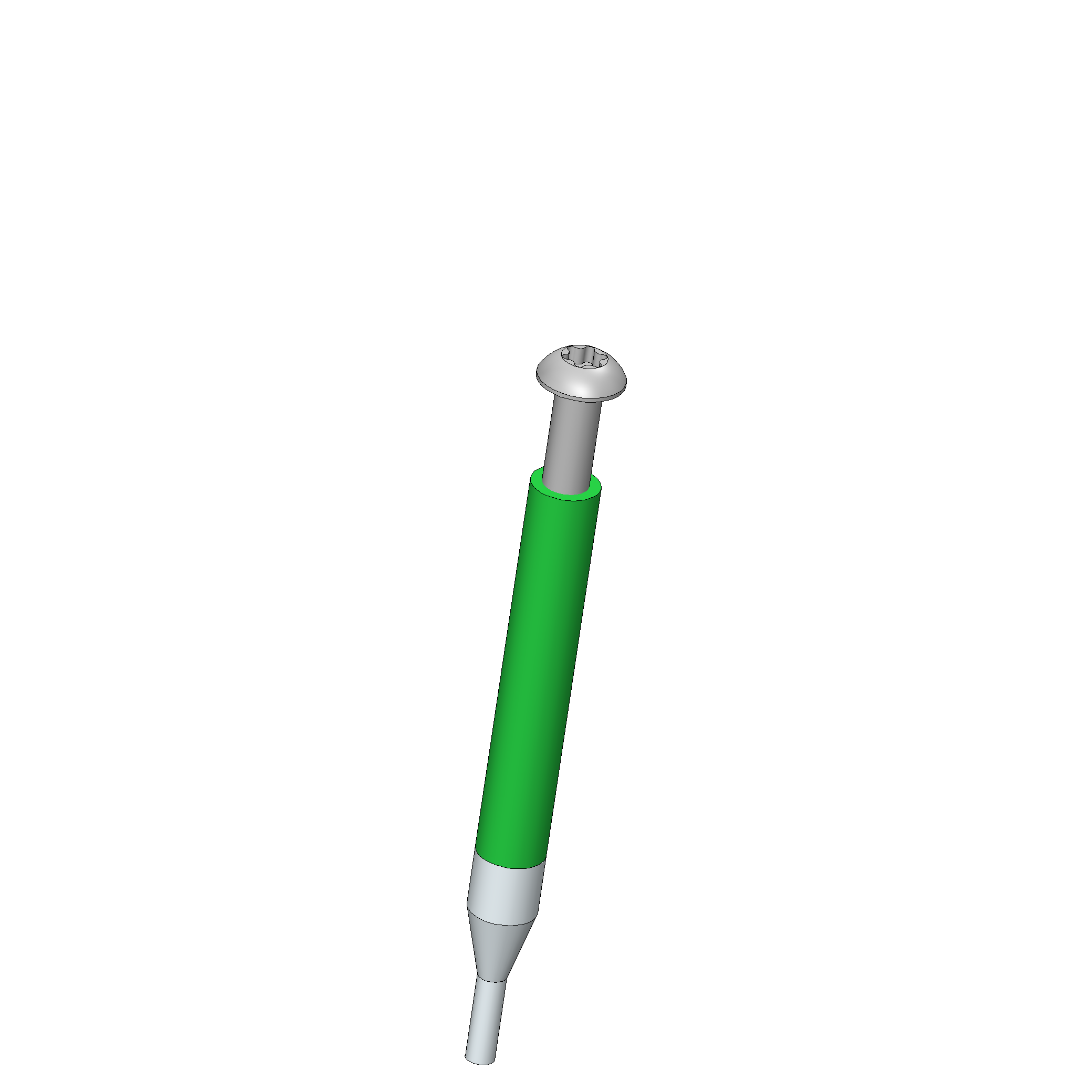

Product information "NHS-ST-55,6-2,5-POM-AL"
- Trusted push rods for reliable, rigid fixing of the PCB in the probe field against the force of the test probes
- Robust, pressure-resistant design
- Quick, easy installation
| Accessory type: | Customising accessories |
|---|---|
| Colour: | Green |
| Installation: | Screwed in |
| Outer dimensions (TxL): | 6 x 55.6 mm [.236 x 2.18 in] |
| Product group: | Push rods (NHS) |
| Pushrod shaft diameter: | 6 mm [.236 in] |
| RoHS-compliant: | Yes |
| Series: | NHS-ST |
| Shaft material: | AL |

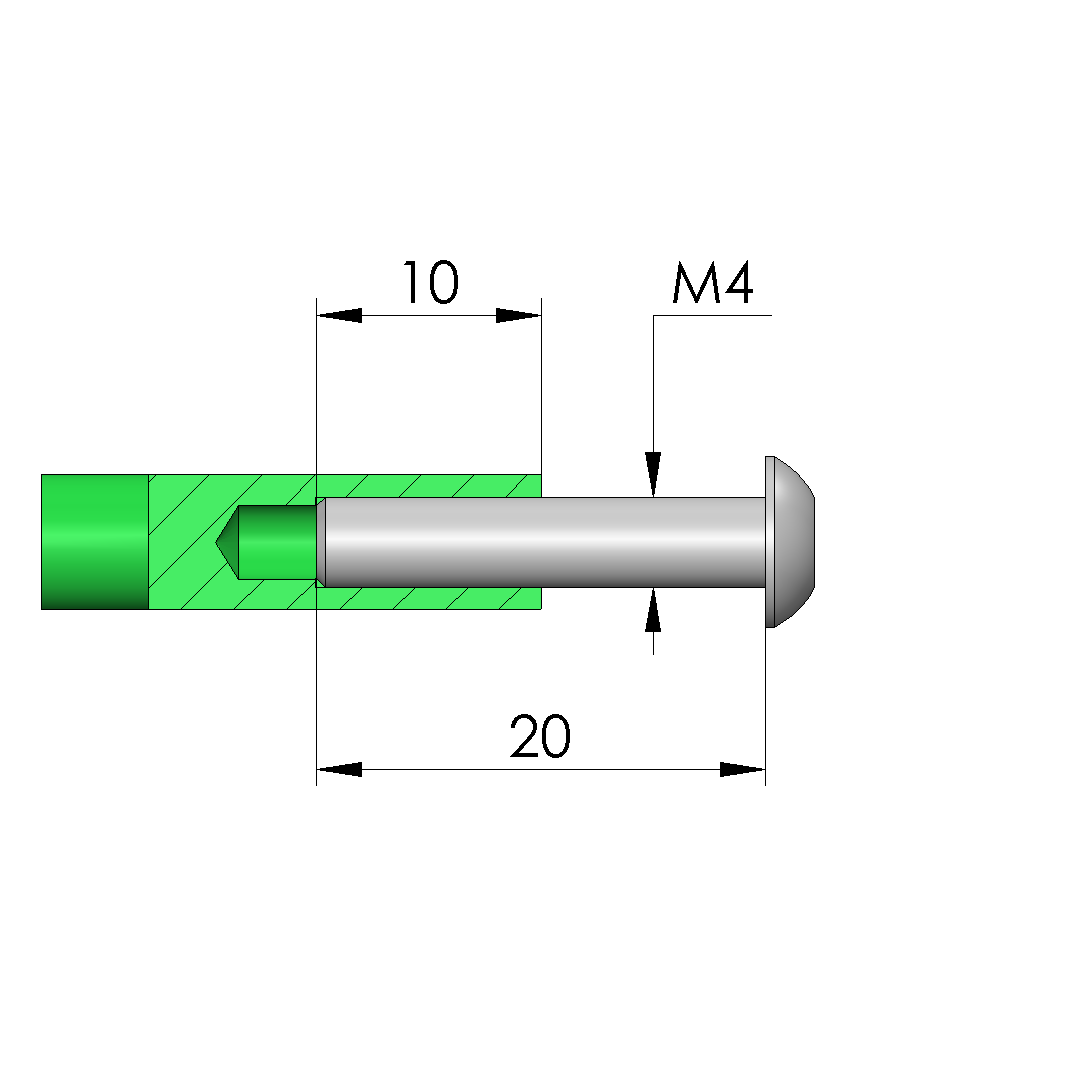

| Thread: | M4x10 mm |
| Tip diameter: | 2.5 mm [.098 in] |
| Tip length: | 20 mm [.787 in] |
| Tip material: | POM |
| Total length: | 55.6 mm [2.18 in] |
| True running: | 2768-mK |
| Type: | Rigid |
| Vacuum test fixtures (VA): | 3xxx, VA 2xxx |
| Version: | Not ESD compliant |
Login
Product Details
- Trusted push rods for reliable, rigid fixing of the PCB in the probe field against the force of the test probes
- Robust, pressure-resistant design
- Quick, easy installation
Other products in this series:
Technical data
General data
- Product group: Push rods (NHS)
- Series: NHS-ST
- RoHS-compliant: Yes
- Version: Not ESD compliant
- Colour: Green
- Type: Rigid
- Accessory type: Customising accessories
- Outer dimensions (TxL): 6 x 55.6 mm [.236 x 2.18 in]
Technical data
- Tip material: POM
- Thread: M4x10 mm
- True running: 2768-mK
- Tip length: 20 mm [.787 in]
- Pushrod shaft diameter: 6 mm [.236 in]
- Shaft material: AL
- Tip diameter: 2.5 mm [.098 in]
- Installation: Screwed in
Mechanical data
- Total length: 55.6 mm [2.18 in]
Compatible with
- Vacuum test fixtures (VA): VA 2xxx
- Vacuum test fixtures (VA): 3xxx
