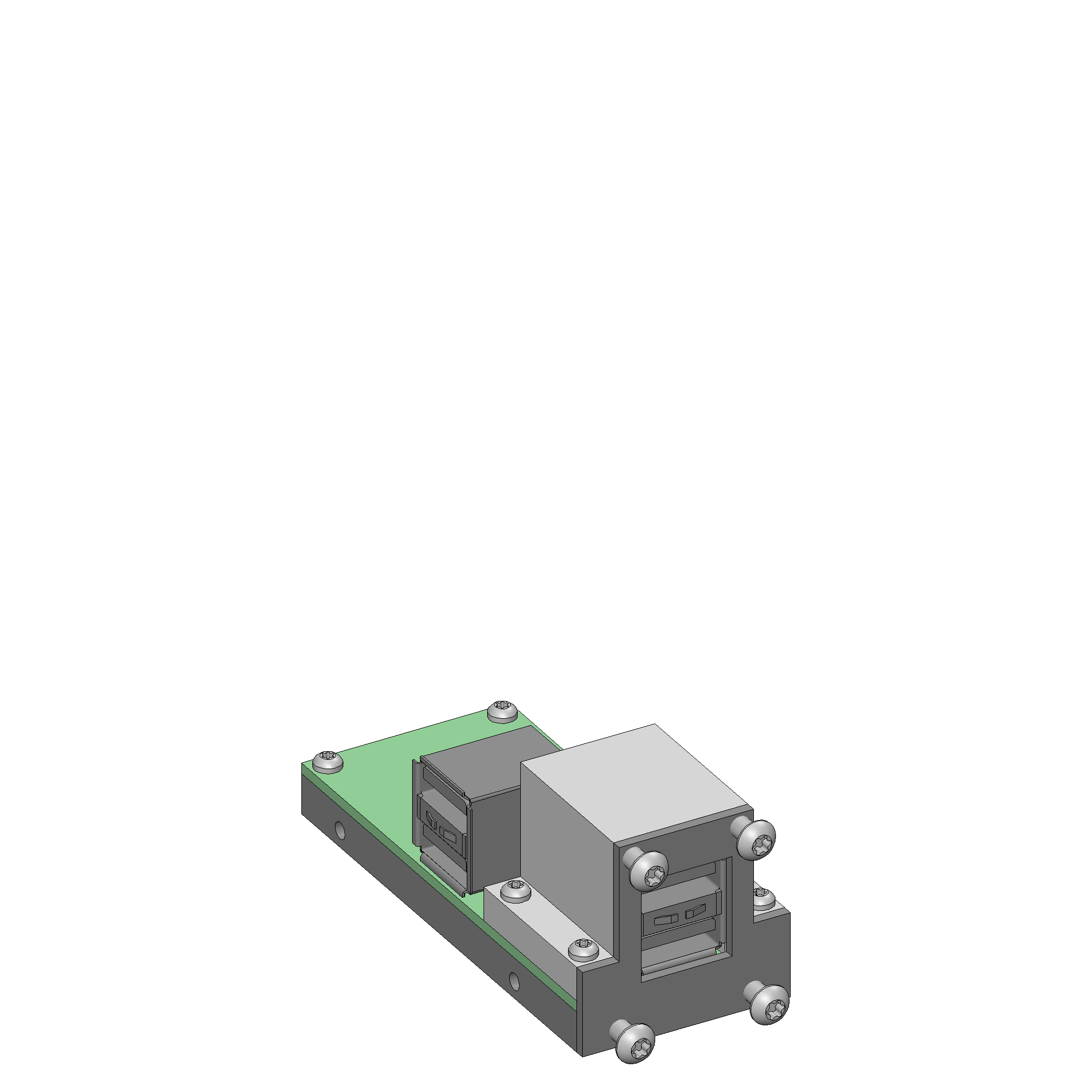

Product information "HF-U-USB2.0-AF-AF-2-SF"
- EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
- Interference-free transmission of USB signals
| Accessory type: | Customising accessories |
|---|---|
| Connection: | USB 2.0 plug |
| Exchangeable kits version: | HF |
| Gross data rate: | .5 Gbit/s |
| Height: | 29.6 mm [1.16 in] |
| Length: | 71 mm [2.79 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx/HF/AL/ESD |
| Max. current: | .5 A |
| Max. temperature: | 60 °C [140 °F] |
| Max. voltage: | 10 VDC |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 2 |

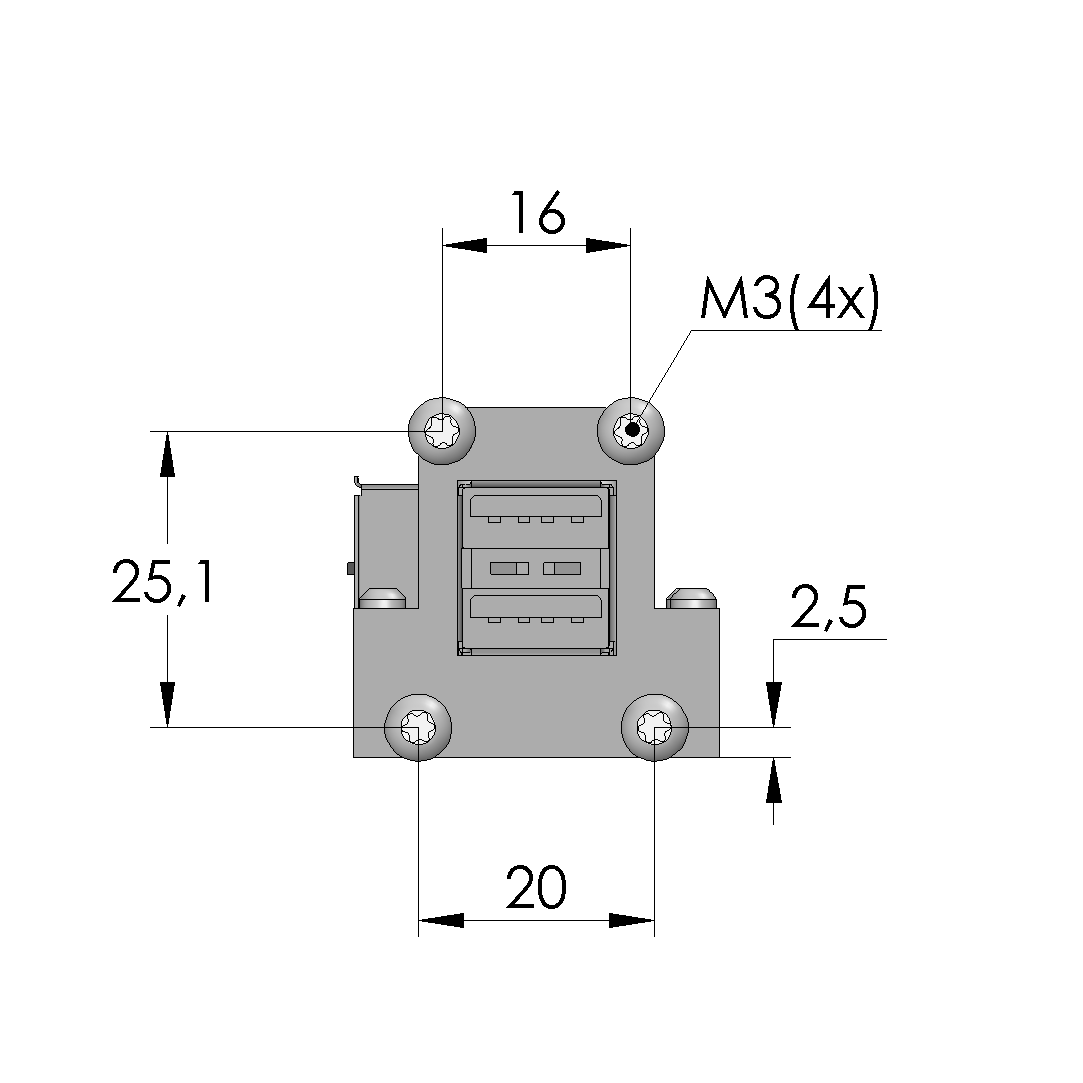

| Outer dimensionS (WxDxH): | 31 x 71 x 29.6 mm [1.22 x 2.79 x 1.16 in] |
| Product group: | RF accessories |
| RoHS-compliant: | Yes |
| Series: | HF-U |
| Type: | RF transfer |
| Version: | USBA 2.0 filter |
| Weight: | 0.05 kg [.11 lbs] |
| Width: | 31 mm [1.22 in] |
Login
Product Details
- EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
- Interference-free transmission of USB signals
Other products in this series:
Technical data
Technical data
- Outer dimensionS (WxDxH): 31 x 71 x 29.6 mm [1.22 x 2.79 x 1.16 in]
- Number of poles: 2
- Gross data rate: .5 Gbit/s
- Max. current: .5 A
- Connection: USB 2.0 plug
- Length: 71 mm [2.79 in]
- Max. voltage: 10 VDC
General data
- Max. temperature: 60 °C [140 °F]
- Series: HF-U
- Weight: 0.05 kg [.11 lbs]
- Width: 31 mm [1.22 in]
- Accessory type: Customising accessories
- Type: RF transfer
- Min. temperature: 10 °C [50 °F]
- Product group: RF accessories
- RoHS-compliant: Yes
- Version: USBA 2.0 filter
- Height: 29.6 mm [1.16 in]
Compatible with
- MA exchangeable kits (ATS MA): ATS MAxx/HF/AL/ESD
- Exchangeable kits version: HF
