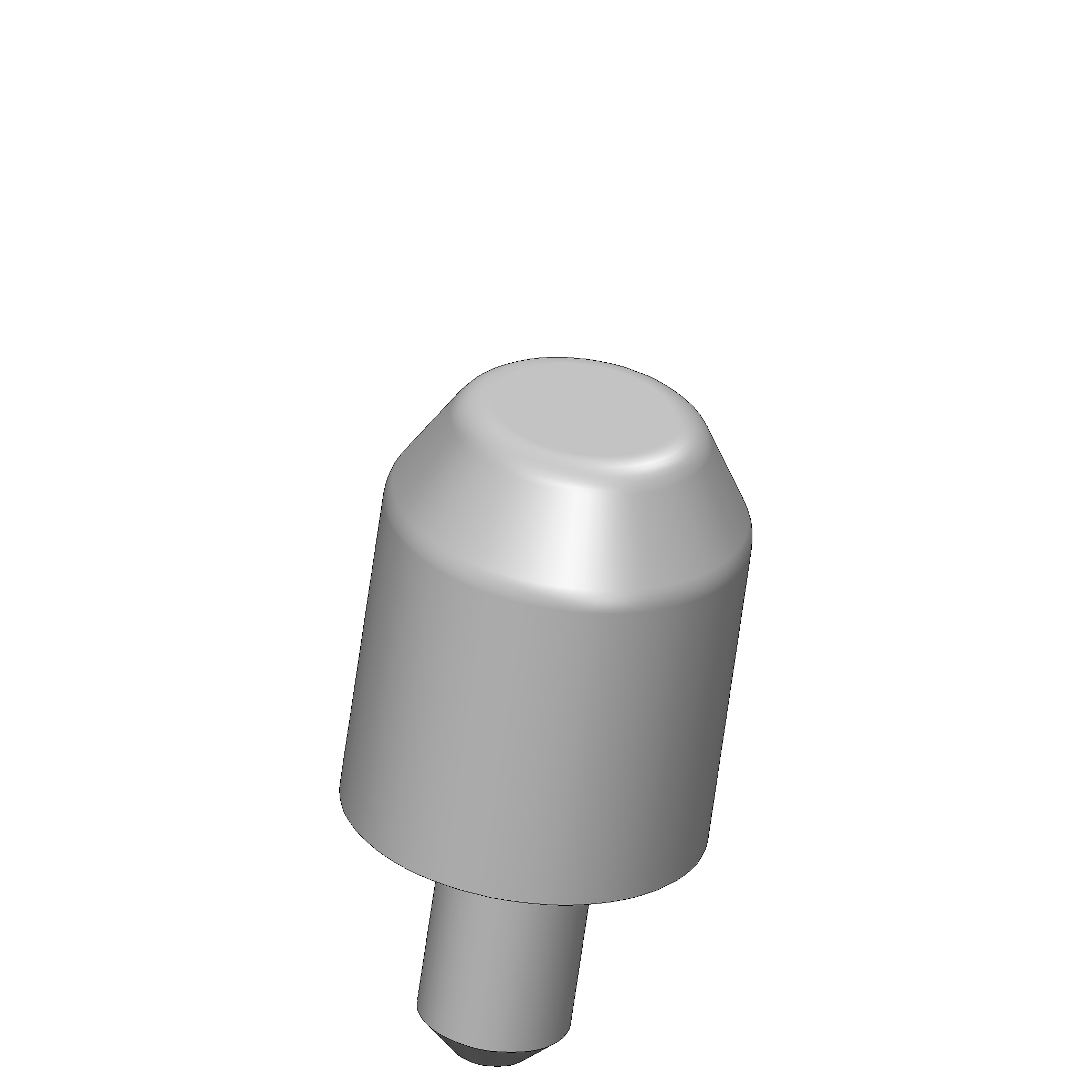

Product information "FS-4,80-RD-06-02"
- Trusted tooling pins for reliable positioning of the PCB via the tooling holes
- Rigid design
- Low tolerances
- Numerous tip styles in 0.1 mm diameter increments
- Different lengths for easy mounting in pressure plate and probe plate
| Accessory type: | Customising accessories |
|---|---|
| Diameter: | 2 mm [.078 in] |
| For dual-stage contacting: | Yes |
| Installation: | Plugged |
| Length: | 9.5 mm [.374 in] |
| Material: | 1.4305 |
| Pin diameter: | 2 mm [.078 in] |
| Product group: | Tooling pins |
| RoHS-compliant: | Yes |
| Series: | FS-ST |
| Tip diameter: | 4.8 mm [.188 in] |
| Tip height: | 6 mm [.236 in] |
| Type: | Round |
| Version: | ADP, 4 mm thick |
Login
Product Details
- Trusted tooling pins for reliable positioning of the PCB via the tooling holes
- Rigid design
- Low tolerances
- Numerous tip styles in 0.1 mm diameter increments
- Different lengths for easy mounting in pressure plate and probe plate
Other products in this series:
Technical data
Technical data
- Tip diameter: 4.8 mm [.188 in]
- Installation: Plugged
- Length: 9.5 mm [.374 in]
- Tip height: 6 mm [.236 in]
- Diameter: 2 mm [.078 in]
- Pin diameter: 2 mm [.078 in]
General data
- Product group: Tooling pins
- Series: FS-ST
- Type: Round
- Version: ADP, 4 mm thick
- Accessory type: Customising accessories
- Material: 1.4305
- RoHS-compliant: Yes
Compatible with
- For dual-stage contacting: Yes
