Puntas de prueba para frecuencia
38 Serie
High-Frequency Probe
HFS-864
- Rejilla 23 mm – 23,5 mm
- Longitud total 63,9 mm
- Rango de frecuencia hasta 7,5 GHz
- Interfaz ensamblaje compatible SMA 50 Ohm
High-Frequency Probe
HFS-810 4M
- Rejilla 6,5 mm – 7 mm
- Longitud total 43 mm – 45 mm
- Rango de frecuencia hasta 2 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm
INGUN SELECTION

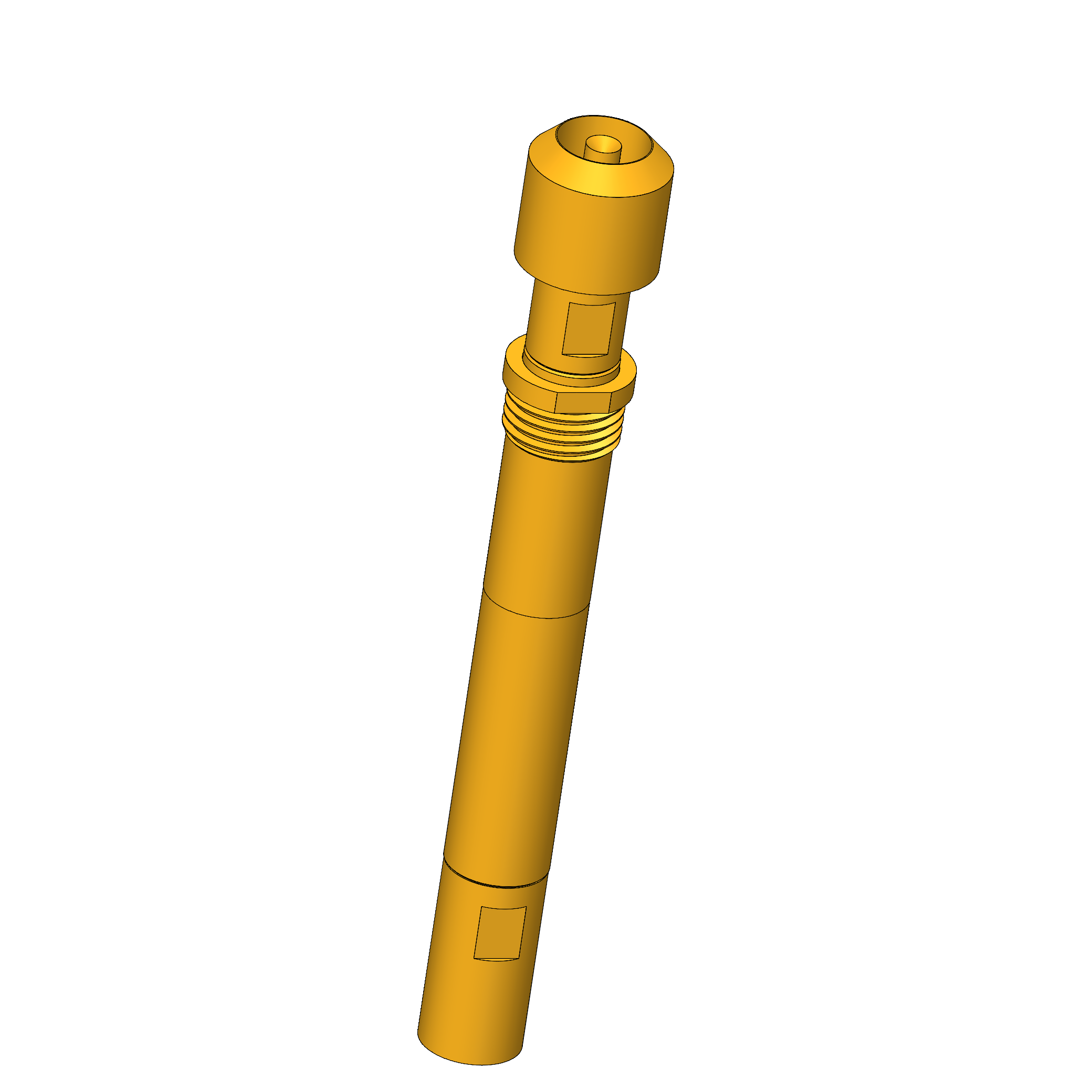

High-Frequency Probe
HFS-840 M
- Rejilla 5,9 mm – 13,5 mm
- Longitud total 42,2 mm – 45,9 mm
- Rango de frecuencia hasta 4 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm

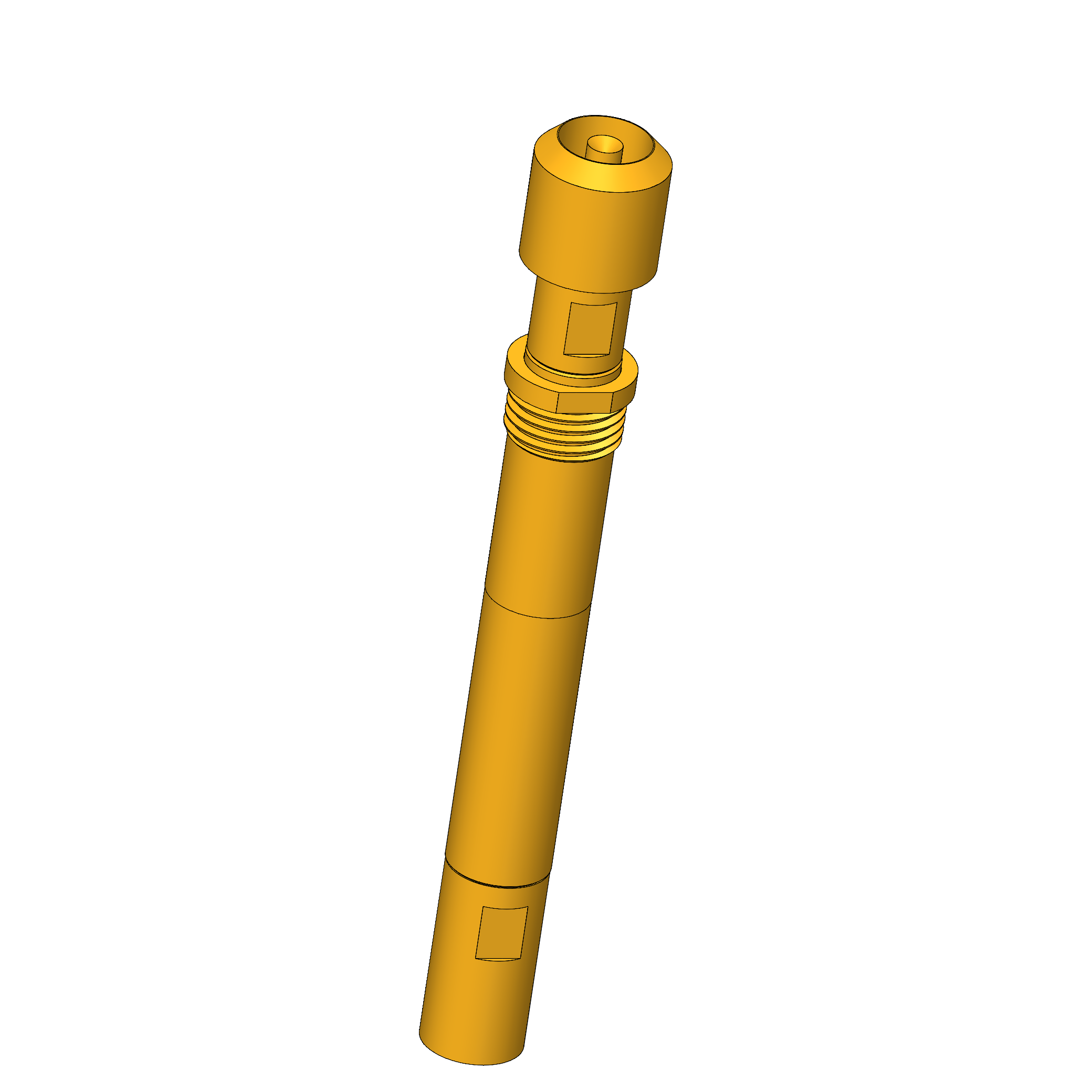

High-Frequency Probe
HFS-810 M
- Rejilla 6,5 mm – 10,5 mm
- Longitud total 42,2 mm – 45,9 mm
- Rango de frecuencia hasta 2 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm

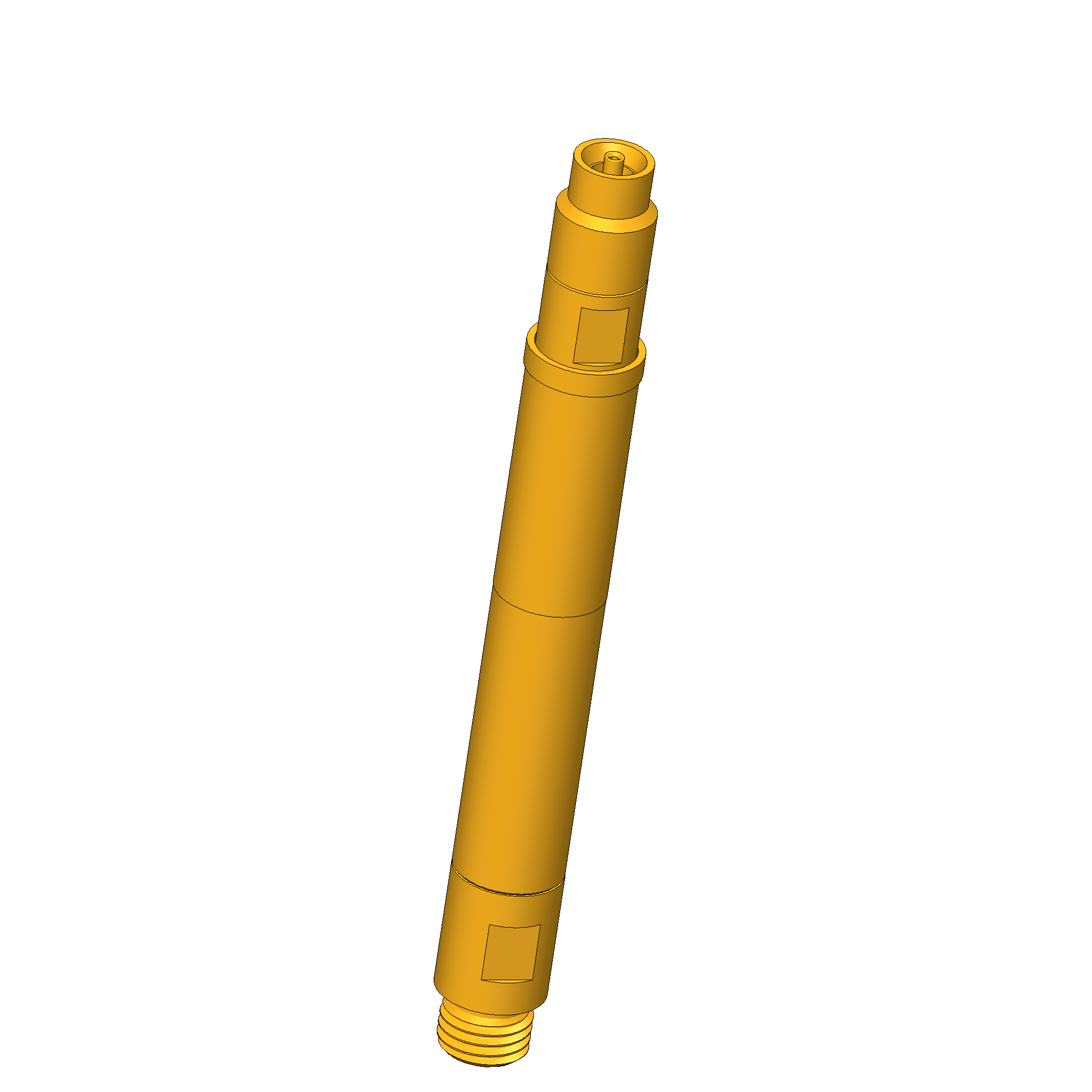

High-Frequency Probe
HFS-890
- Rejilla 5,8 mm – 8 mm
- Longitud total 39,2 mm – 43,9 mm
- Rango de frecuencia hasta 6 GHz – 20 GHz
- Interfaz ensamblaje compatible SMPM 50 Ohm

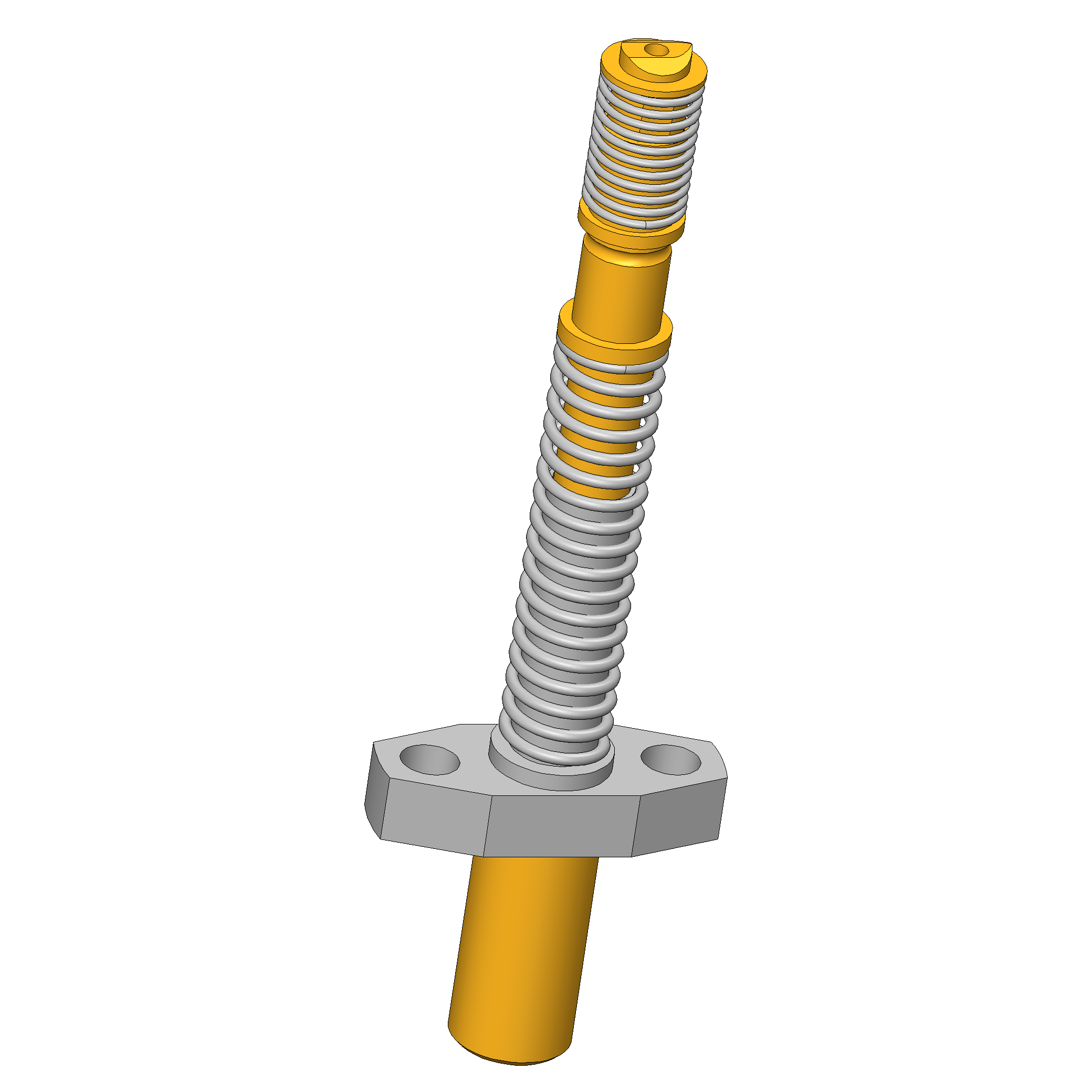

High-Frequency Probe
HFS-837
- Rejilla 4,5 mm
- Longitud total 24,1 mm – 32,2 mm
- Rango de frecuencia hasta 6 GHz – 12 GHz
- Interfaz ensamblaje compatible SMPM 50 Ohm

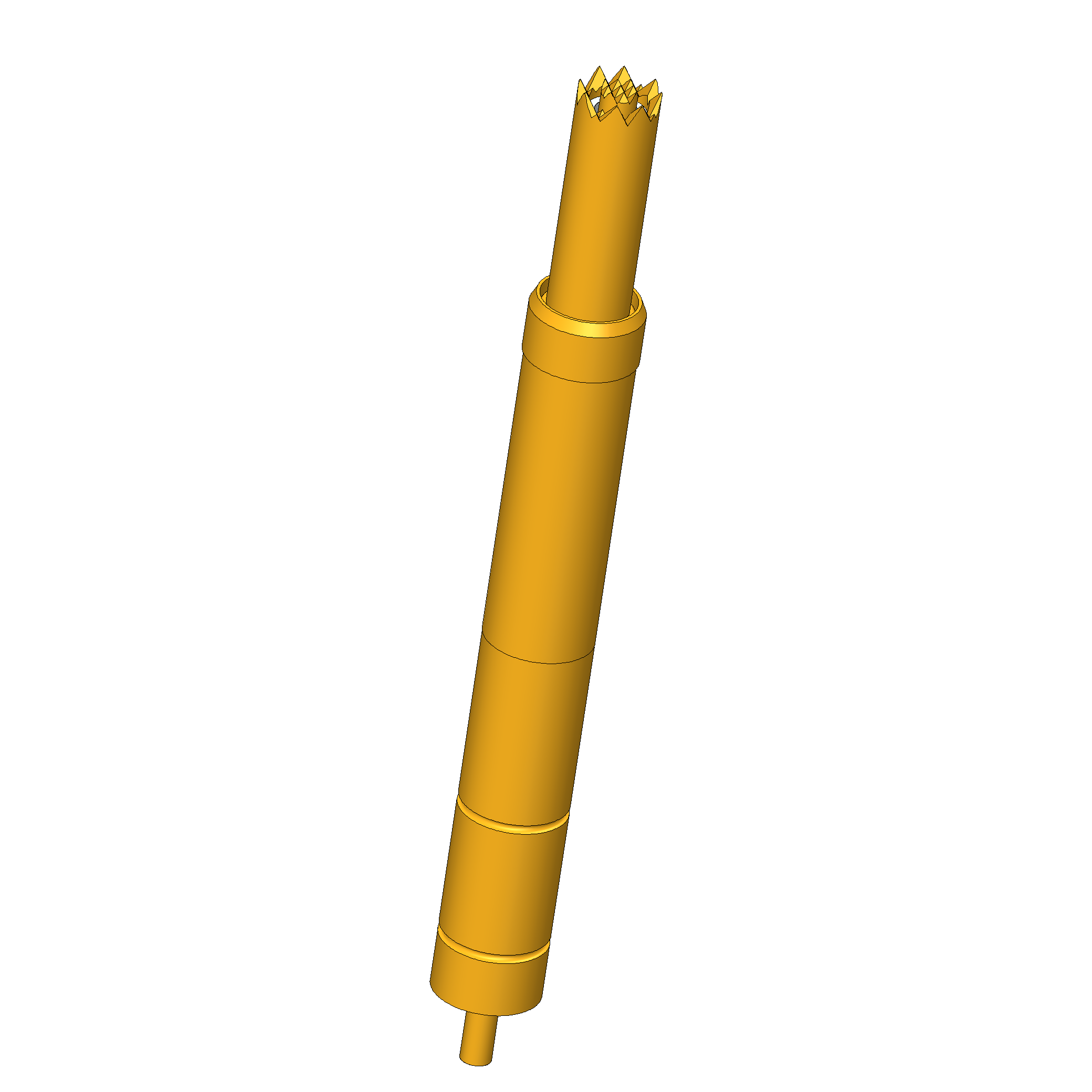

High-Frequency Probe
HFS-110 B
- Rejilla 4,5 mm
- Longitud total 34,5 mm
- Rango de frecuencia hasta 0,7 GHz
- Fuerza de resorte total durante la carrera de trabajo 4,5 N
High-Frequency Probe
HFS-860 M
- Rejilla 6,5 mm – 12,5 mm
- Longitud total 40,9 mm – 49,4 mm
- Rango de frecuencia hasta 6 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm
INGUN SELECTION

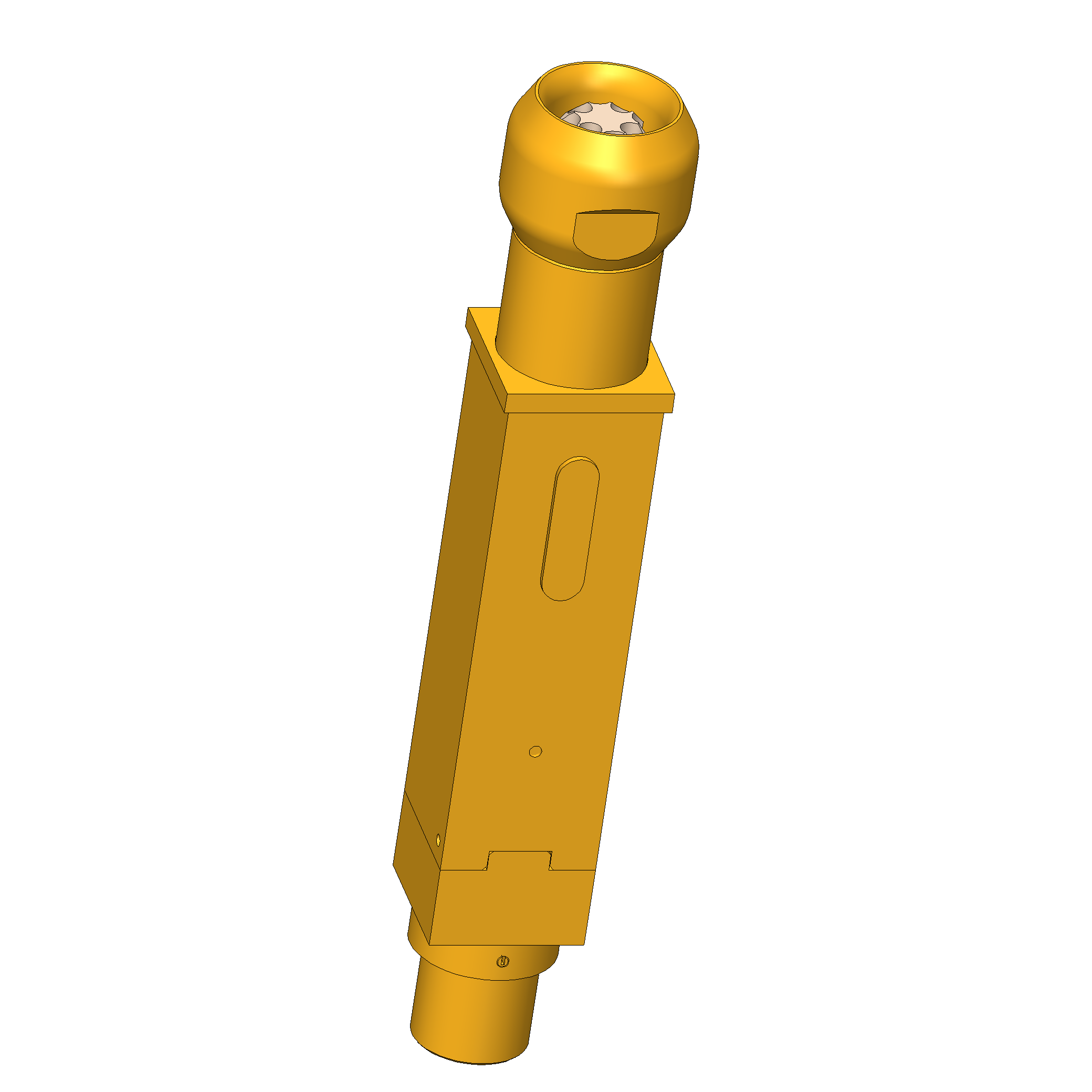

High-Frequency Probe
HFS-819
- Rejilla 12 mm
- Longitud total 48,9 mm – 51,8 mm
- Interfaz ensamblaje compatible HSD
- Fuerza de resorte total durante la carrera de trabajo 12,7 N – 20,7 N

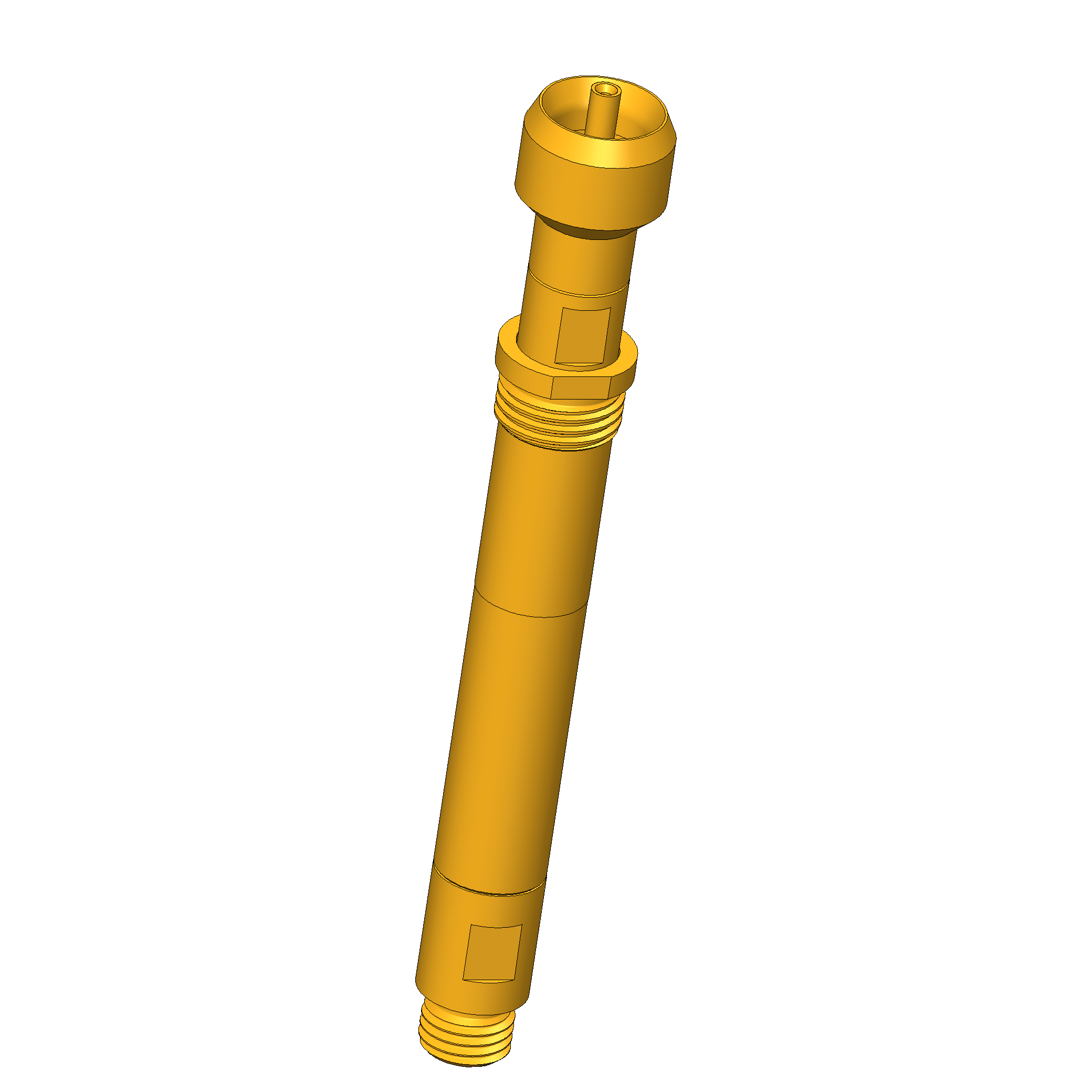

High-Frequency Probe
HFS-890 M
- Rejilla 6,5 mm – 8 mm
- Longitud total 39,2 mm – 43,9 mm
- Rango de frecuencia hasta 6 GHz – 20 GHz
- Interfaz ensamblaje compatible SMPM 50 Ohm
INGUN SELECTION
High-Frequency Probe
HFS-840
- Rejilla 5,8 mm – 13,5 mm
- Longitud total 42,2 mm – 47,5 mm
- Rango de frecuencia hasta 2 GHz – 4 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm
INGUN SELECTION
- Rejilla 10 mm
- Longitud total 28,1 mm – 33,5 mm
- Rango de frecuencia hasta 6 GHz
- Interfaz ensamblaje compatible SMA 50 Ohm
INGUN SELECTION

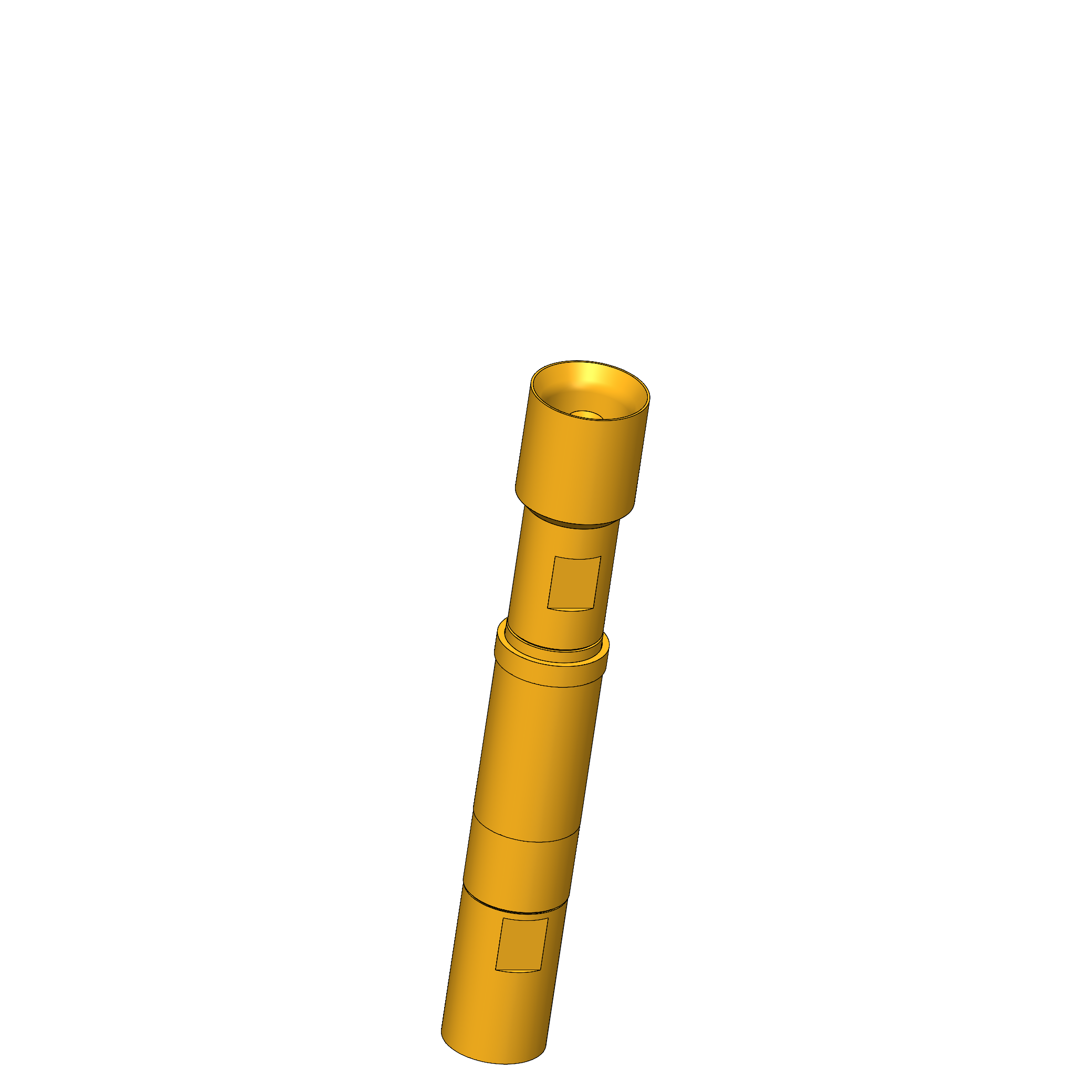

High-Frequency Probe
HFS-410
- Rejilla 5,8 mm – 6,6 mm
- Longitud total 28,9 mm – 31,1 mm
- Rango de frecuencia hasta 2 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm

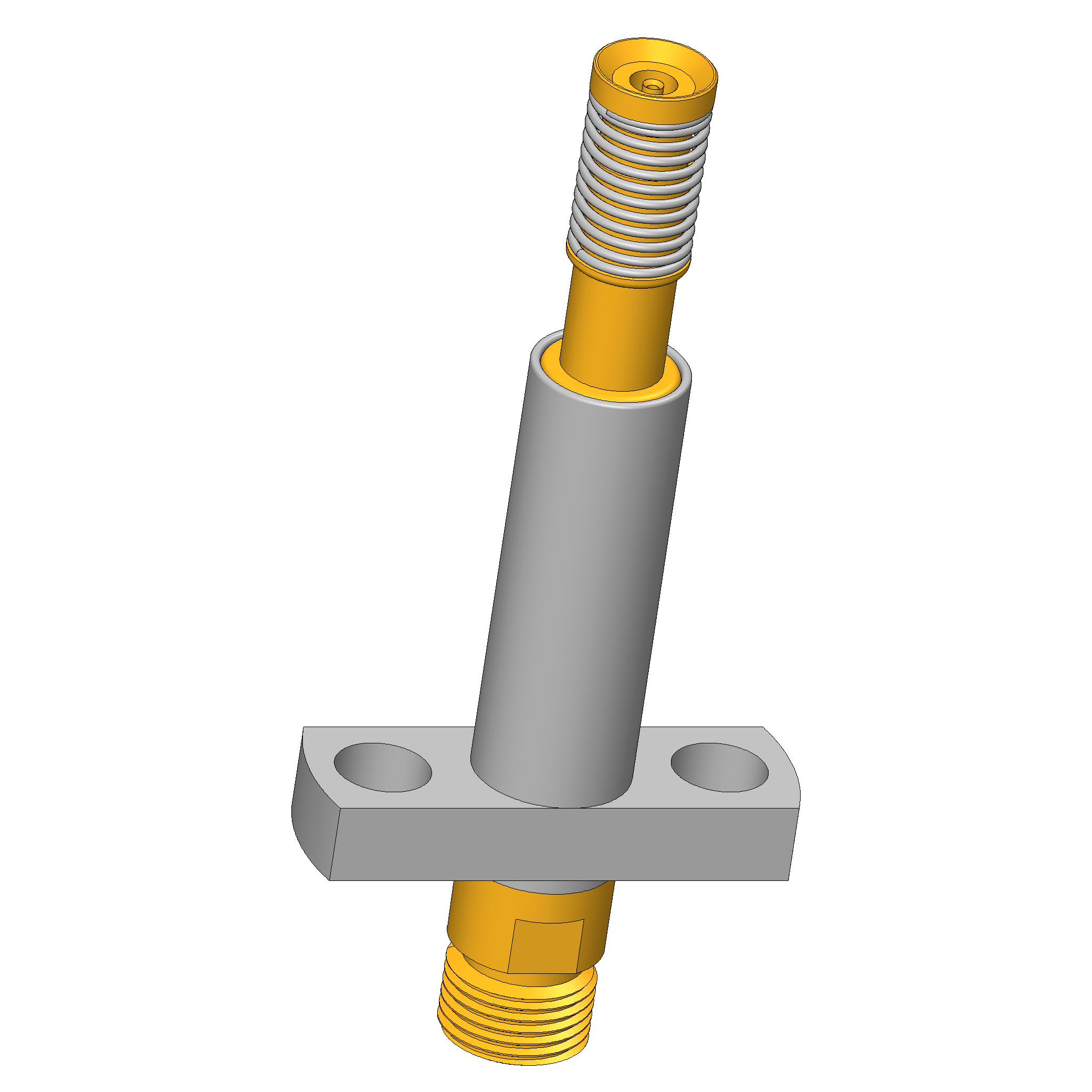

High-Frequency Probe
HFS-852
- Rejilla 4,4 mm
- Longitud total 26,6 mm
- Rango de frecuencia hasta 6 GHz – 12 GHz
- Interfaz ensamblaje compatible SMPM 50 Ohm

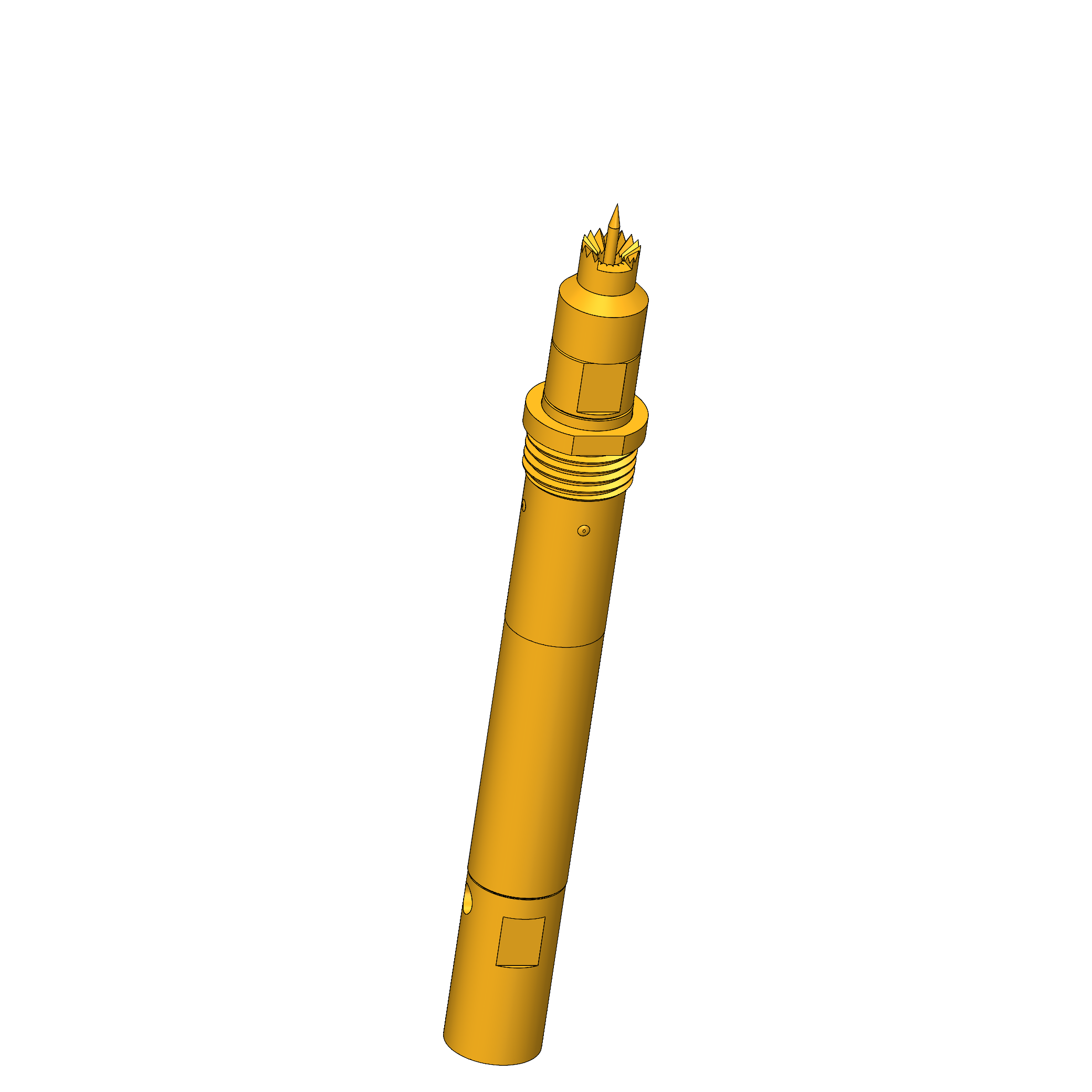

High-Frequency Probe
HFS-860 4M
- Rejilla 6,5 mm
- Longitud total 43 mm
- Rango de frecuencia hasta 6 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm

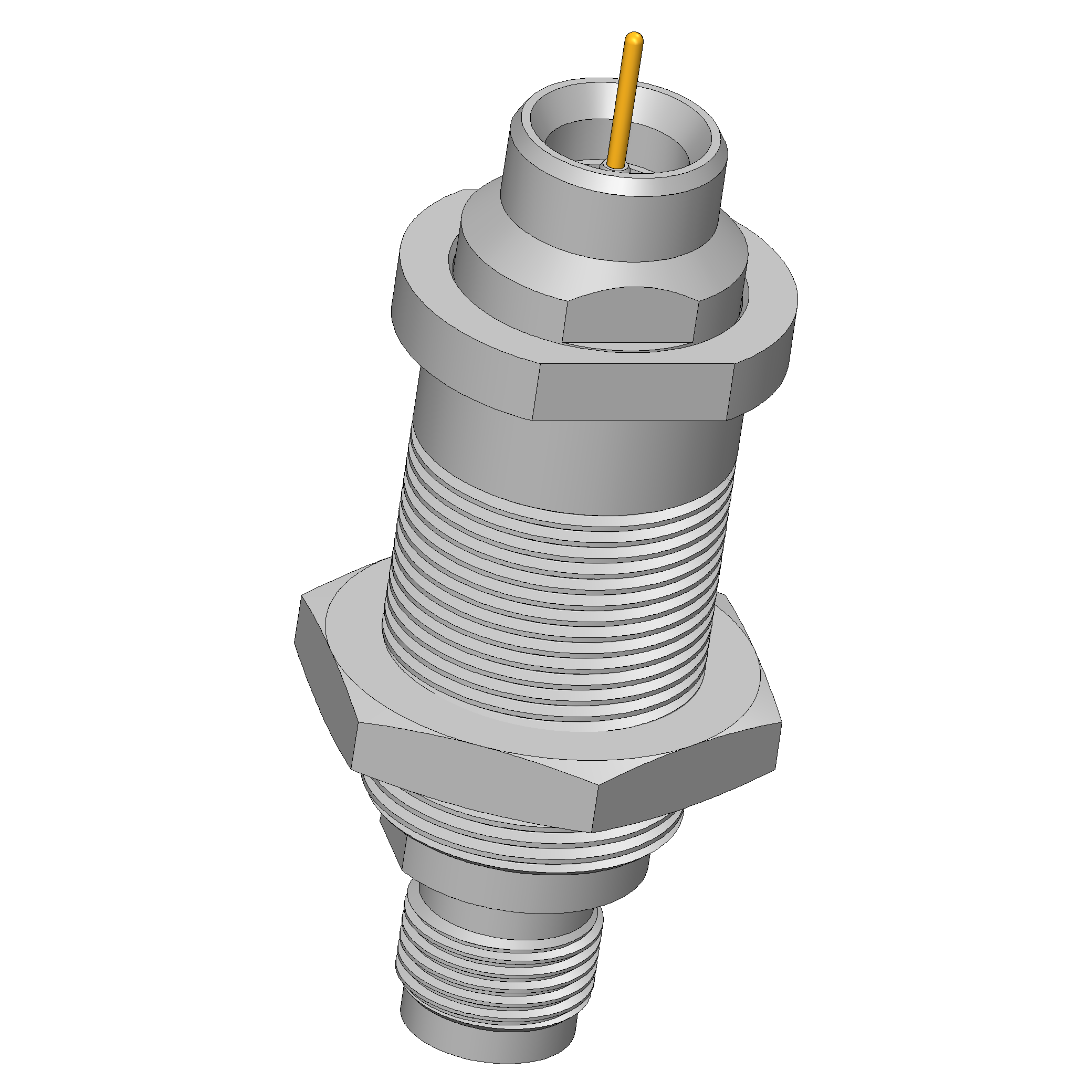

High-Frequency Probe
HFS-409
- Rejilla 30 mm
- Longitud total 59,3 mm – 62,3 mm
- Rango de frecuencia hasta 1,5 GHz
- Interfaz ensamblaje compatible TNC 50 Ohm

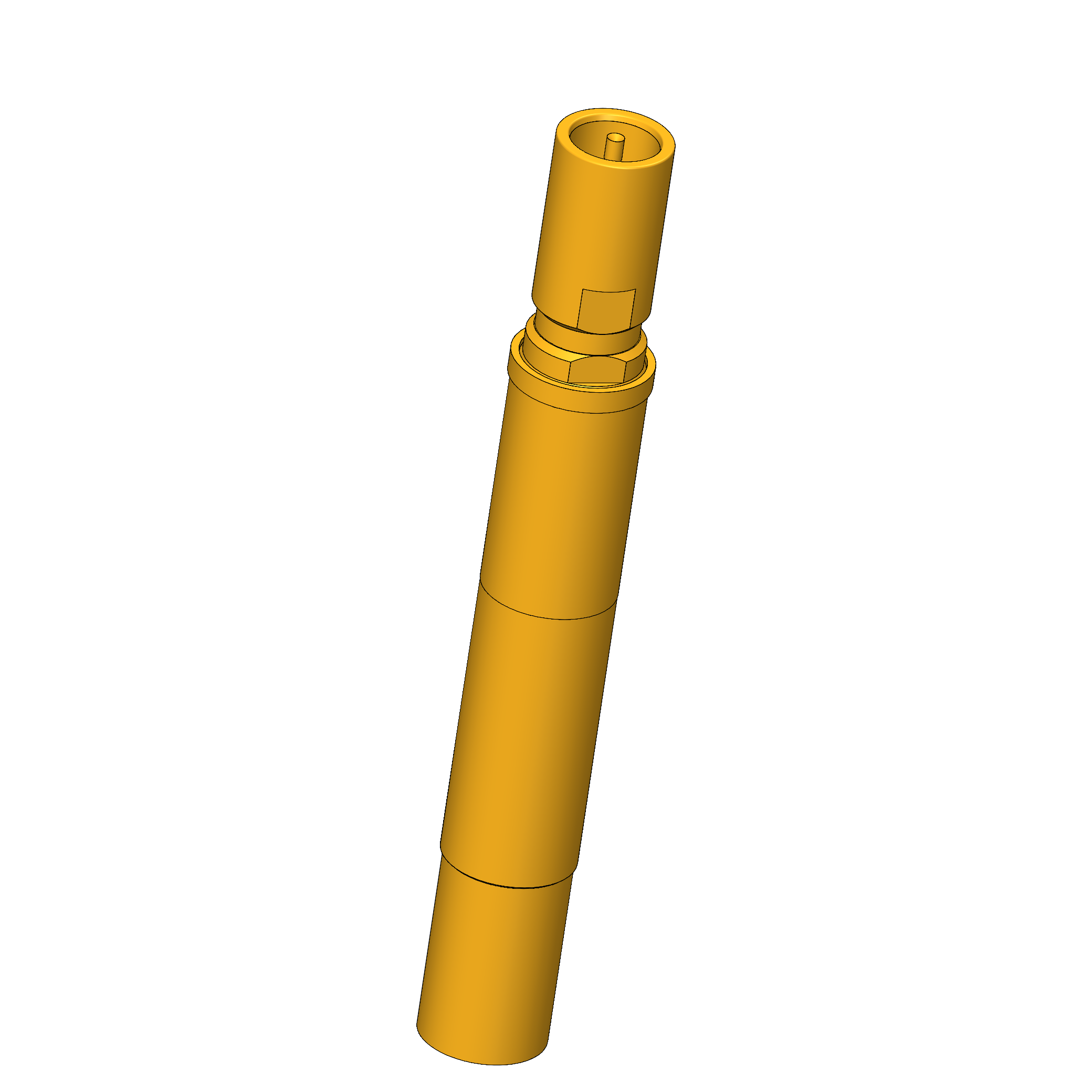

High-Frequency Probe
HFS-858
- Rejilla 7,1 mm
- Longitud total 43 mm
- Rango de frecuencia hasta 1 GHz
- Interfaz ensamblaje compatible SE-858 V

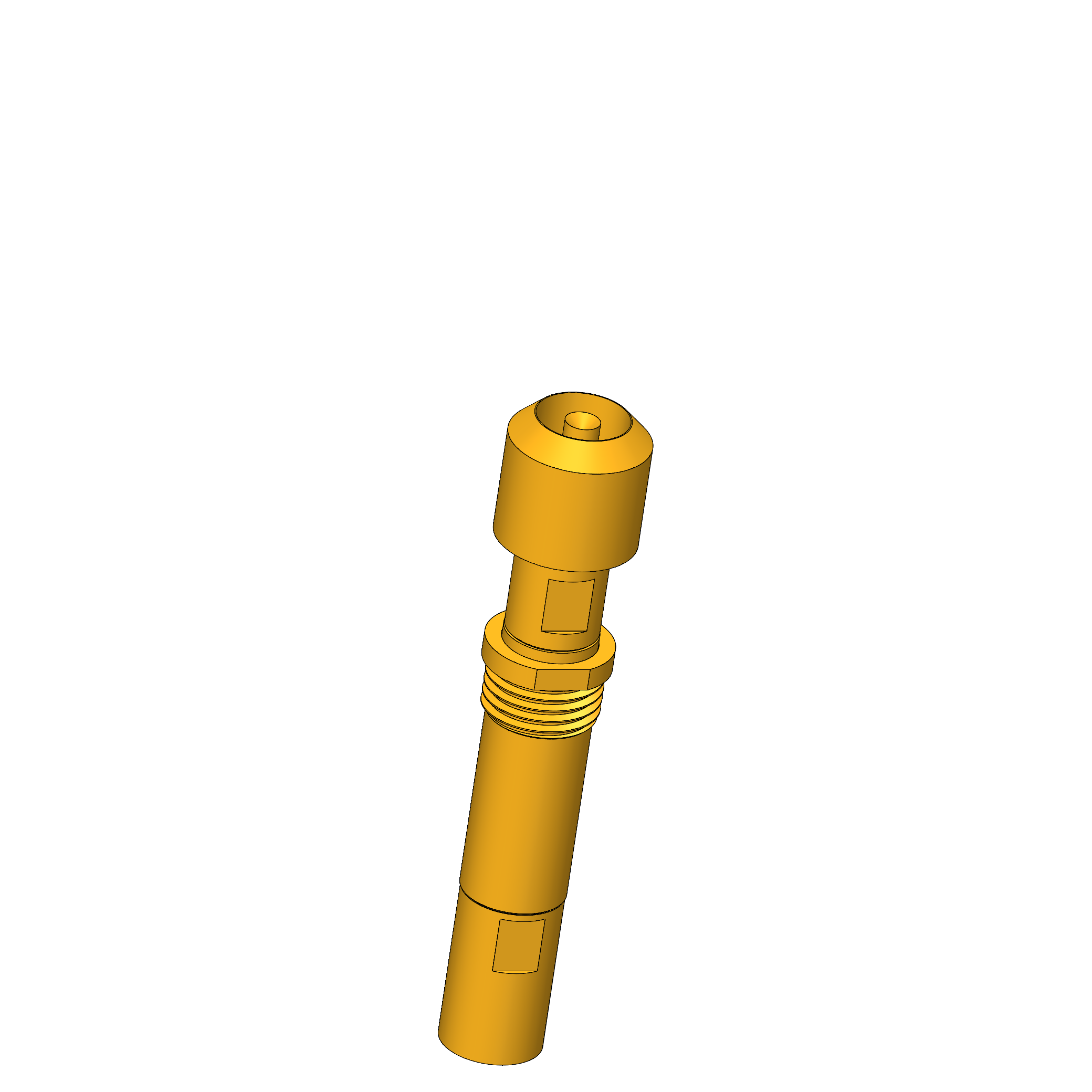

High-Frequency Probe
HFS-410 M
- Rejilla 5,8 mm – 6,6 mm
- Longitud total 28,9 mm – 31,1 mm
- Rango de frecuencia hasta 2 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm
High-Frequency Probe
HFS-110 A
- Rejilla 4,5 mm
- Longitud total 31 mm – 35 mm
- Rango de frecuencia hasta 0,7 GHz
- Interfaz ensamblaje compatible Ensamblaje de Cable y enchufe SE-110 para HFS-110

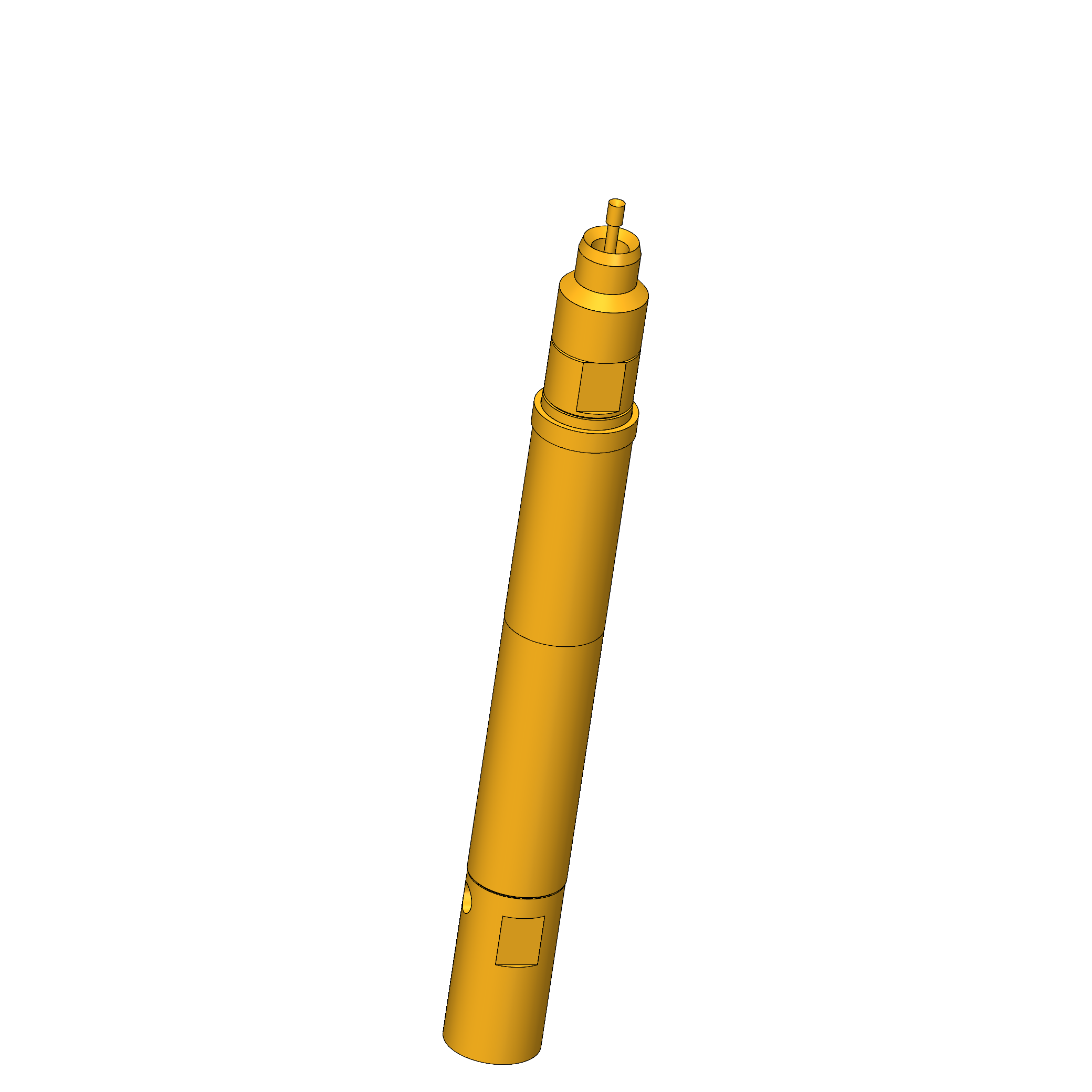

High-Frequency Probe
HFS-860
- Rejilla 5,8 mm – 12,5 mm
- Longitud total 40,9 mm – 49,4 mm
- Rango de frecuencia hasta 6 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm
INGUN SELECTION

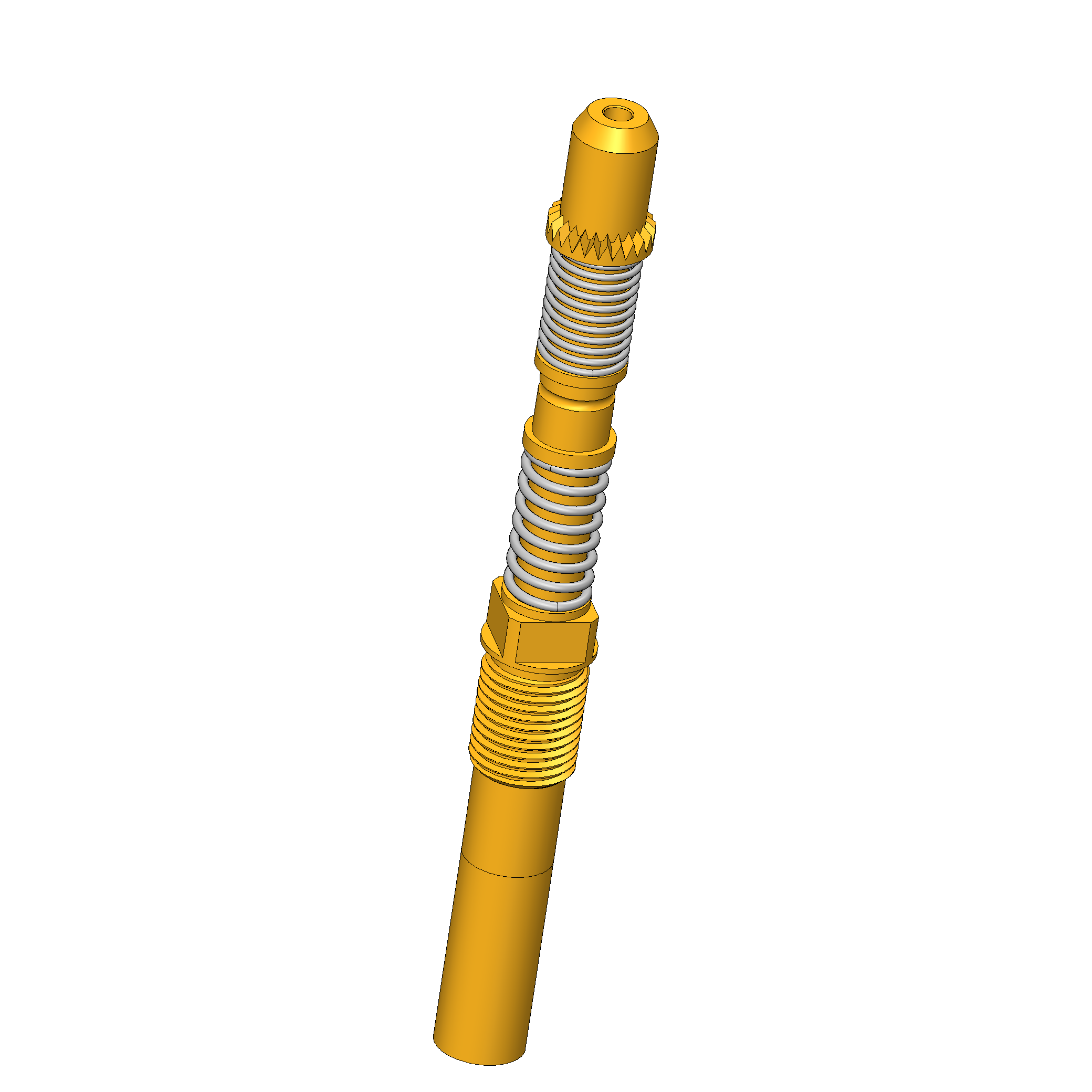

High-Frequency Probe
HFS-807 M
- Rejilla 4 mm
- Longitud total 33,5 mm – 35,5 mm
- Rango de frecuencia hasta 12 GHz
- Interfaz ensamblaje compatible SMPM 50 Ohm

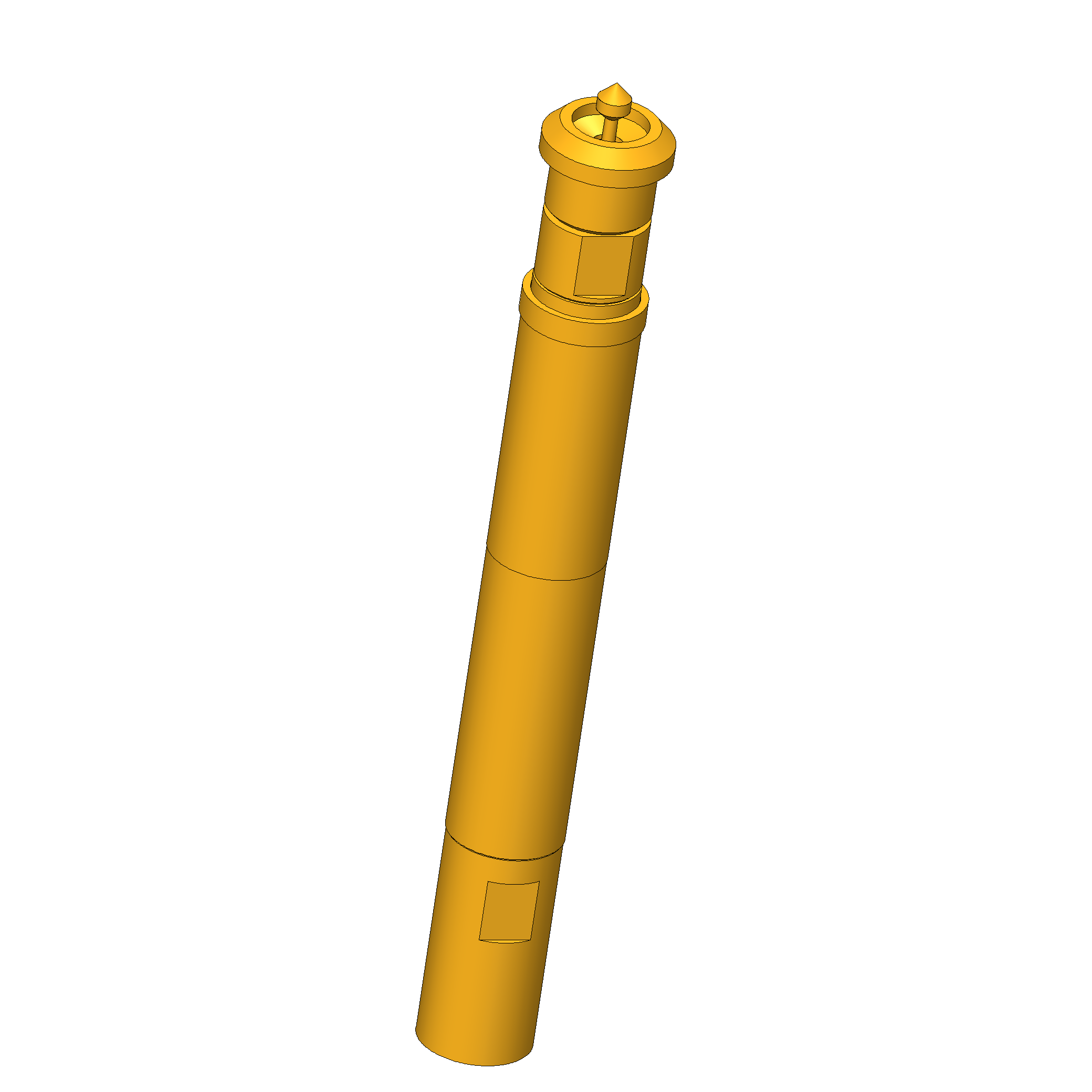

High-Frequency Probe
HFS-865
- Rejilla 5,5 mm – 5,8 mm
- Longitud total 39,7 mm – 42,5 mm
- Rango de frecuencia hasta 6 GHz – 12 GHz
- Interfaz ensamblaje compatible MMPX 50 Ohm

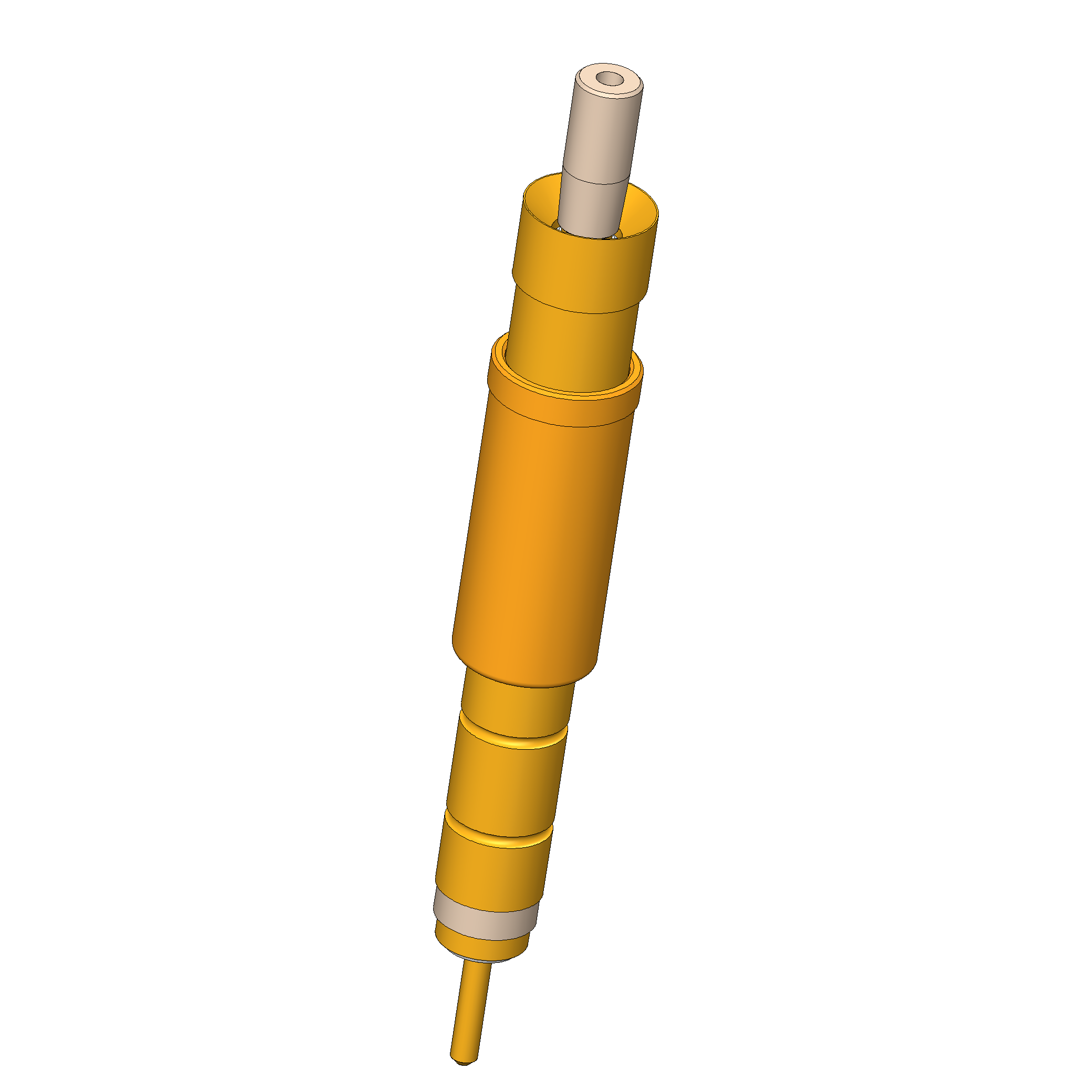

Dipole Pobe
DPS-445
- Rejilla 5 mm – 6 mm
- Longitud total 31 mm – 33,3 mm
- Fuerza de resorte total durante la carrera de trabajo 5,5 N – 6,5 N

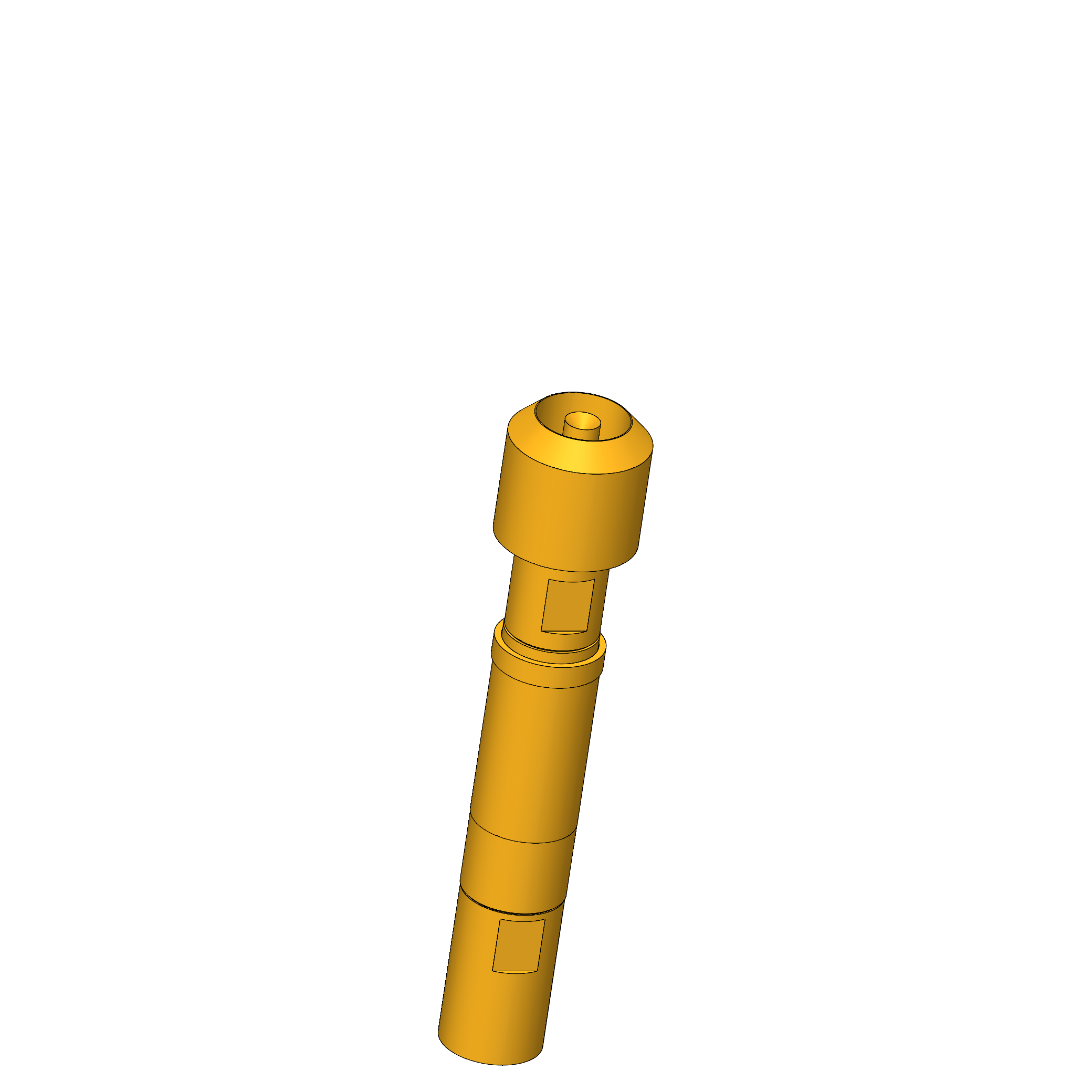

High-Frequency Probe
HFS-440
- Rejilla 5,8 mm – 13,5 mm
- Longitud total 29,7 mm – 31,7 mm
- Rango de frecuencia hasta 4 GHz
- Interfaz ensamblaje compatible MCX 50 Ohm
