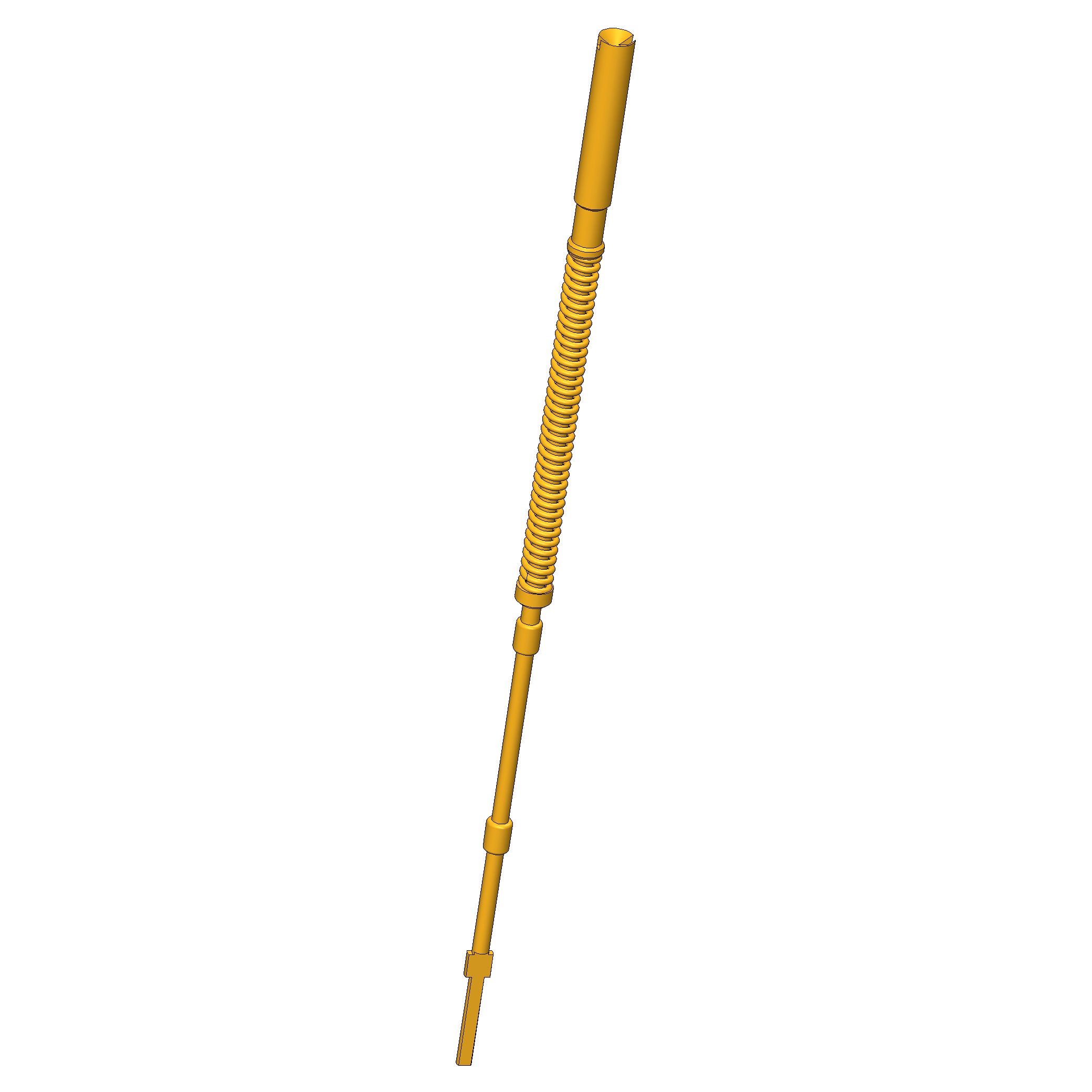

Product information "VF25-203 220 A 100"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2 mm [.078 in] |
| Compatible receptacle(s): | KS-VF25 |
| Contacting from: | Post, Pin |
| Continuous plunger: | ø0,9 x 0,5 x 7,5 |
| Current load capacity / rated current: | 5 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Bayonet |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6 mm [.236 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | Yes |
| Product group: | Screw-in test probe, Push-back probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | VF25 |
| Spring force at working stroke: | 10 N [35.9 ozf] |
| Spring pre-load: | 3.33 N [11.9 ozf] |
| Sub-product group: | Push-back probes |
| Tip diameter: | 2.2 mm [.086 in] |
| Tip style: | 03 inverse cone |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |
| Total length: | 69.5 mm [2.73 in] |
| Typical resistance (Ri): | 50 mOhm |
| Working stroke: | 5 mm [.196 in] |
Login
Other products in this series:
Technical data
General data
- Product group: Screw-in test probe
- Product group: Push-back probes
- Sub-product group: Push-back probes
- Series: VF25
- Grid: 2.54 mm [100 mil]
- Contacting from: Pin
- Contacting from: Post
- Magnetic: Yes
- Installation type: Bayonet
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: Yes
- Continuous plunger: ø0,9 x 0,5 x 7,5
- Compatible receptacle(s): KS-VF25
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Mechanical data

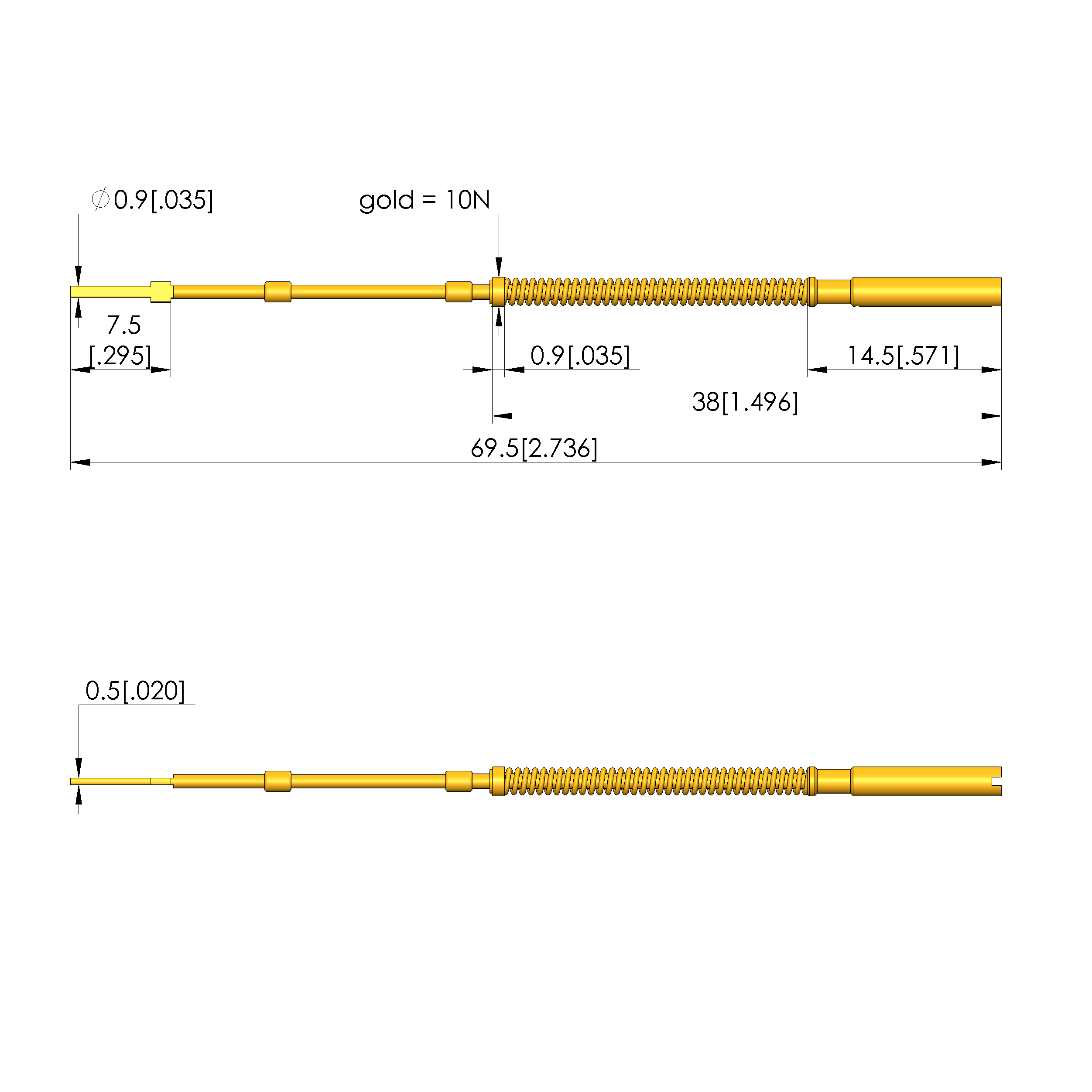

- Total length: 69.5 mm [2.73 in]
- Barrel diameter: 2 mm [.078 in]
- Maximum stroke: 6 mm [.236 in]

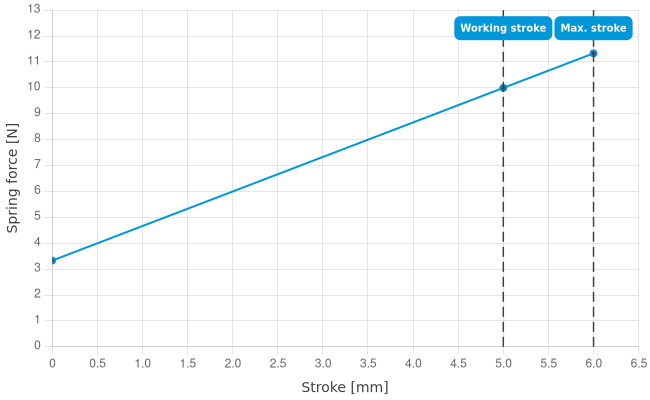

- Spring pre-load: 3.33 N [11.9 ozf]
- Spring force at working stroke: 10 N [35.9 ozf]
- Working stroke: 5 mm [.196 in]
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 50 mOhm

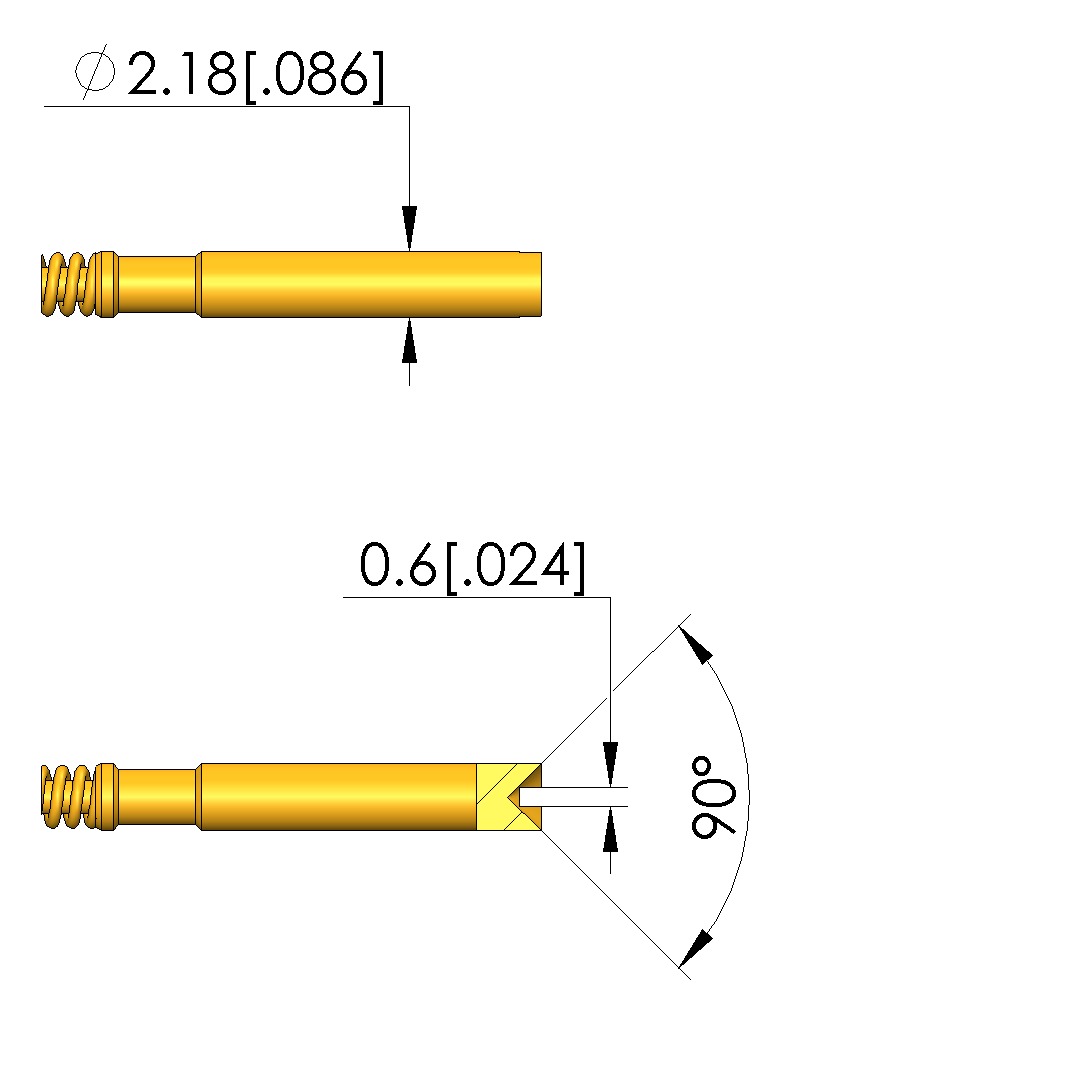

Tip style data

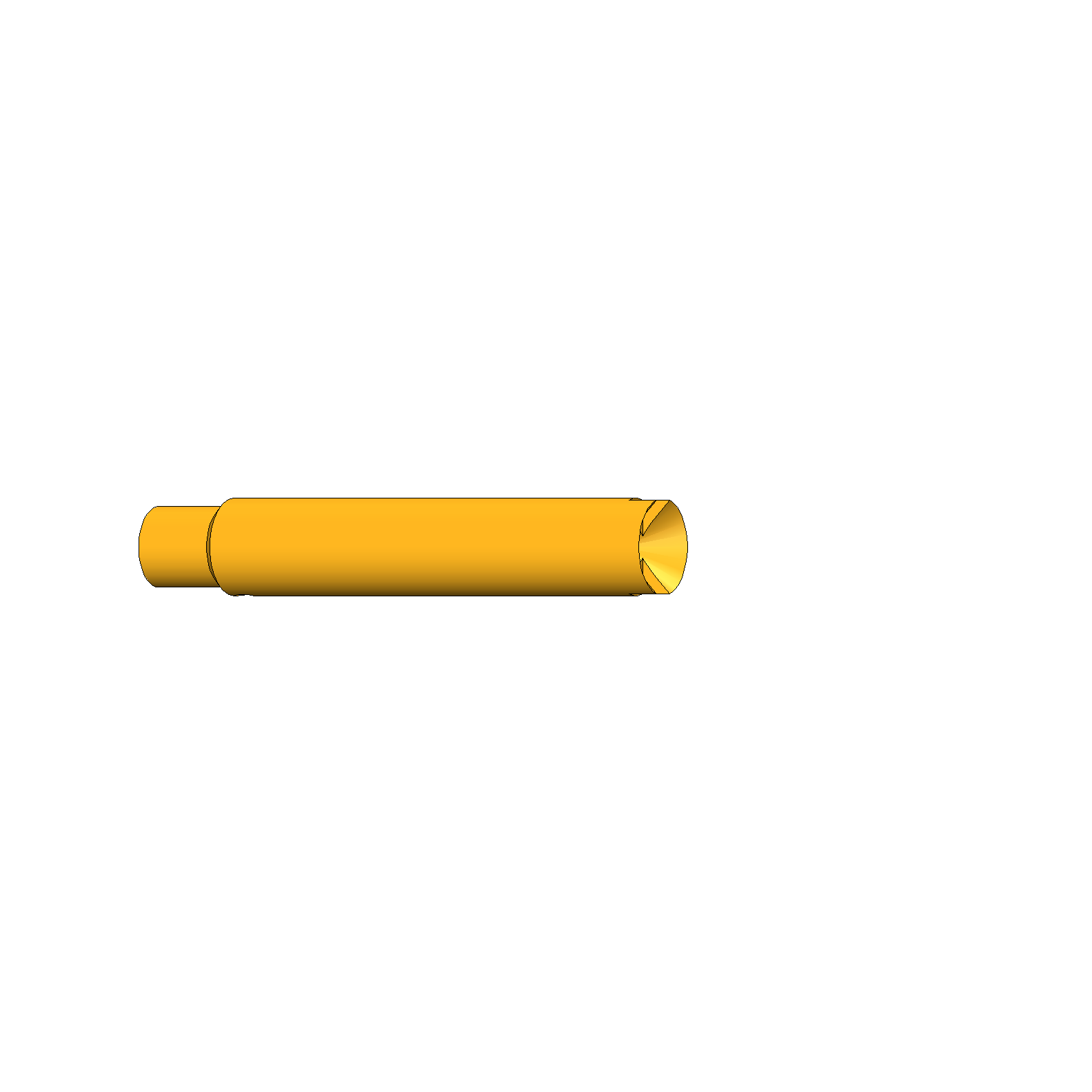

- Tip style: 03 inverse cone
- Tip diameter: 2.2 mm [.086 in]
- Tip style surface: A gold
- Tip style material: 2 steel
