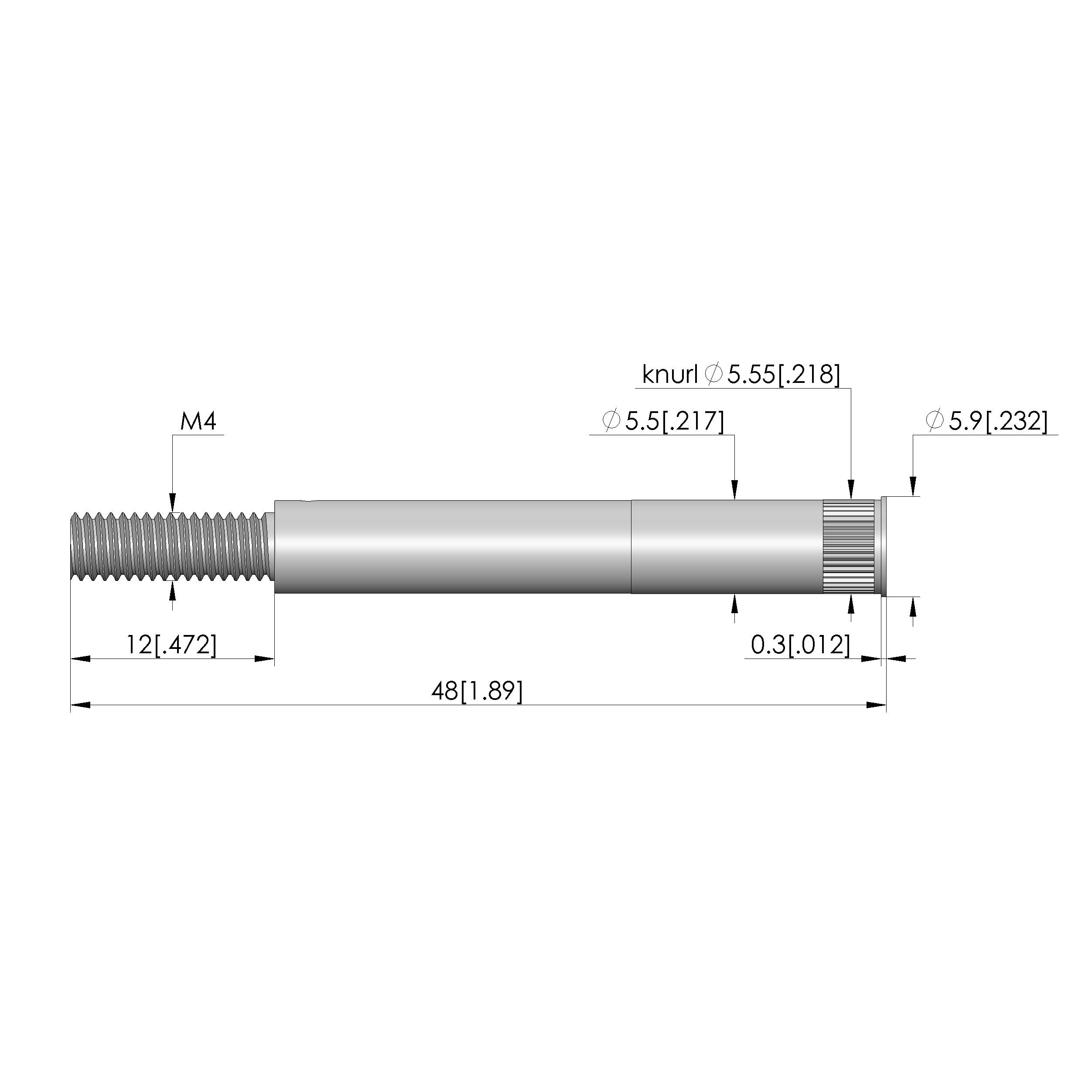

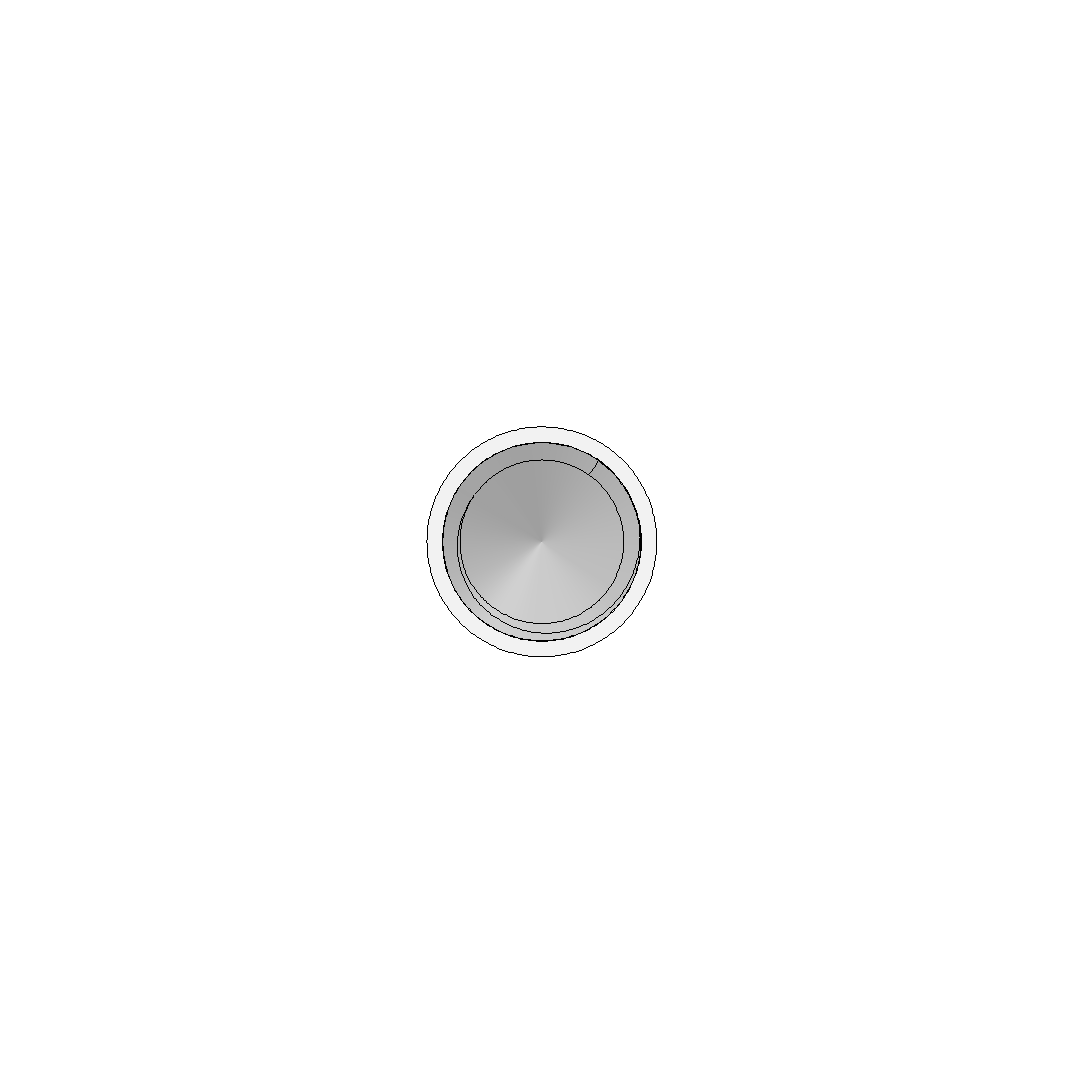

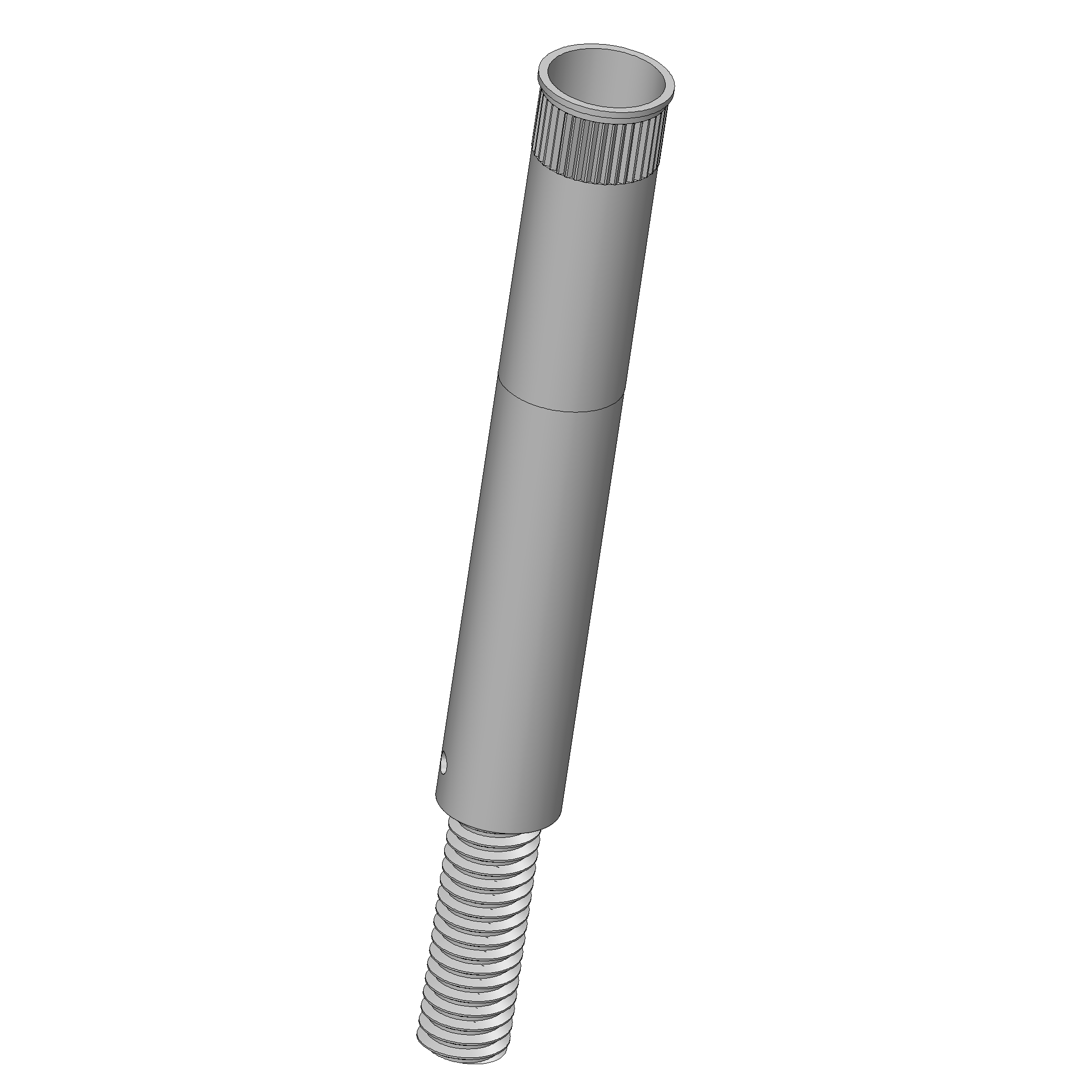

Product information "KS-621 M4 M5-R"
| Collar diameter: | 5.9 mm [.232 in] |
|---|---|
| Collar height: | 0.3 mm [.011 in] |
| Knurl: | Yes |
| Mounting hole in CEM1: | 5.5 – 5.52 mm [.216 – .217 in] |
| Mounting hole in FR4: | 5.5 – 5.52 mm [.216 – .217 in] |
| Outer diameter: | 5.5 mm [.216 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-621 |
| Sub-series: | KS-621 M screw-in version |
| Surface area: | Silver |
| Total length: | 48 mm [1.88 in] |
| Type of receptacle connection: | Thread (M) |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
Mechanical data
- Total length: 48 mm [1.88 in]
- Outer diameter: 5.5 mm [.216 in]
General data
- Product group: Receptacles (KS)
- Series: KS-621
- Sub-series: KS-621 M screw-in version
- Type of receptacle connection: Thread (M)
- Press ring: No
- Surface area: Silver
- Collar diameter: 5.9 mm [.232 in]
- Collar height: 0.3 mm [.011 in]
- Knurl: Yes
- Vacuum-tight: No
- RoHS-compliant: Yes
Mounting hole
- Mounting hole in CEM1: 5.5 – 5.52 mm [.216 – .217 in]
- Mounting hole in FR4: 5.5 – 5.52 mm [.216 – .217 in]
