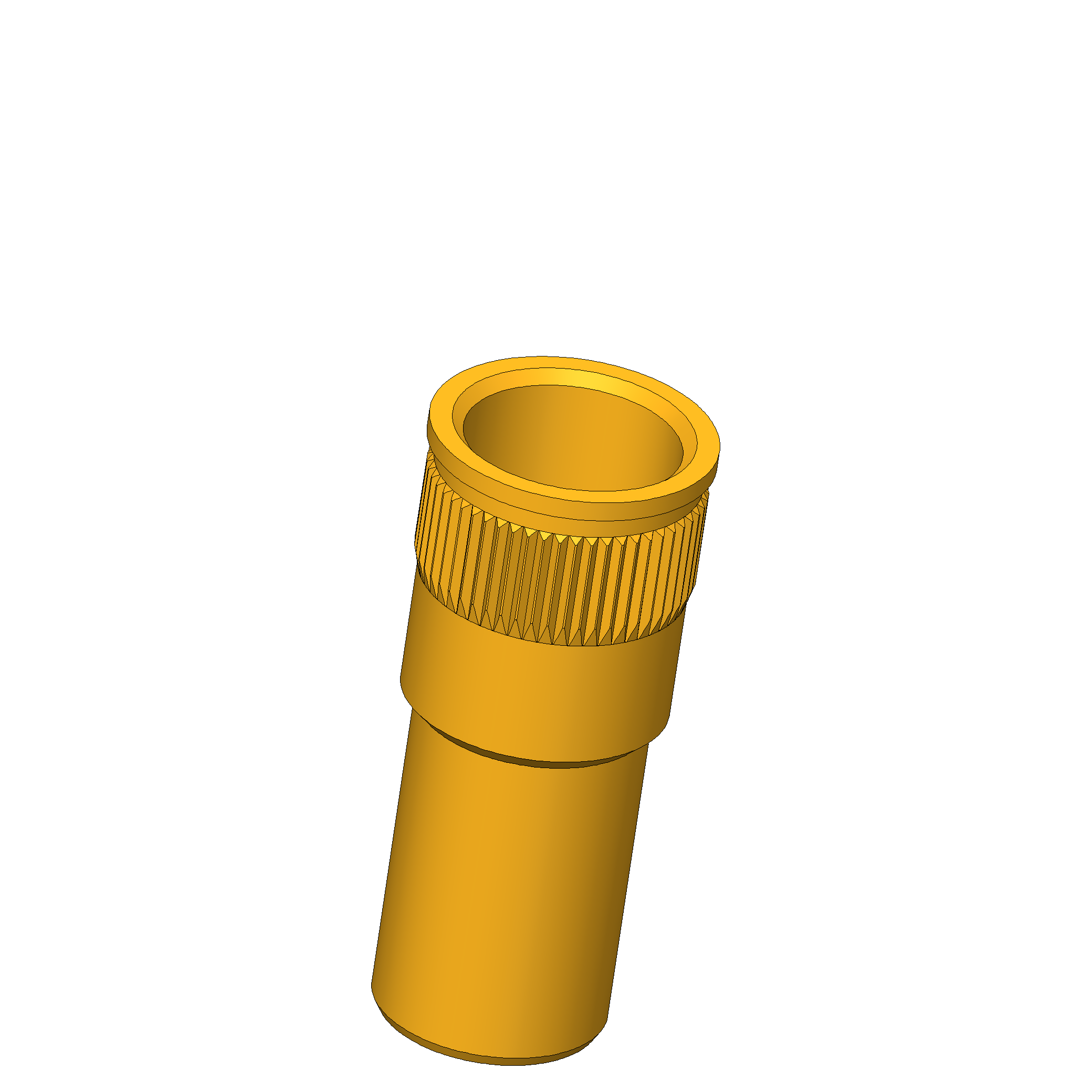

Product information "KS-449 M6 R"
| Collar diameter: | 7 mm [.275 in] |
|---|---|
| Collar height: | 0.5 mm [.019 in] |
| Knurl: | Yes |
| Mounting hole in CEM1: | 6.7 – 6.72 mm [.263 – .264 in] |
| Mounting hole in FR4: | 6.7 – 6.72 mm [.263 – .264 in] |
| Outer diameter: | 6.5 mm [.255 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-449 |
| Sub-series: | KS-449 M screw-in version |
| Surface area: | Gold |
| Total length: | 16 mm [.629 in] |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-449
- Sub-series: KS-449 M screw-in version
- Press ring: No
- Surface area: Gold
- Knurl: Yes
- Vacuum-tight: No
- RoHS-compliant: Yes

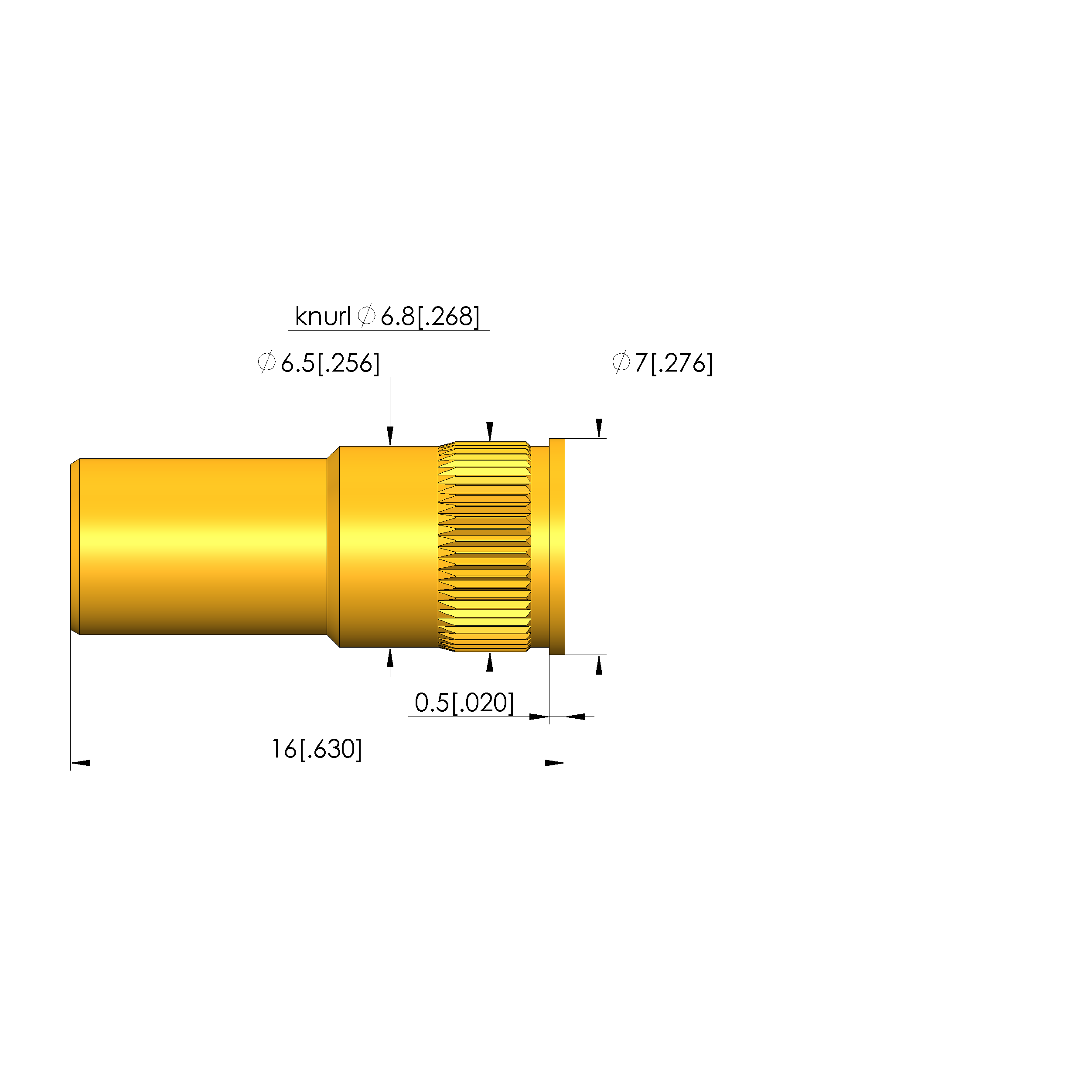

- Collar height: 0.5 mm [.019 in]
- Collar diameter: 7 mm [.275 in]
Mechanical data
- Total length: 16 mm [.629 in]
- Outer diameter: 6.5 mm [.255 in]
Mounting hole
- Mounting hole in CEM1: 6.7 – 6.72 mm [.263 – .264 in]
- Mounting hole in FR4: 6.7 – 6.72 mm [.263 – .264 in]
