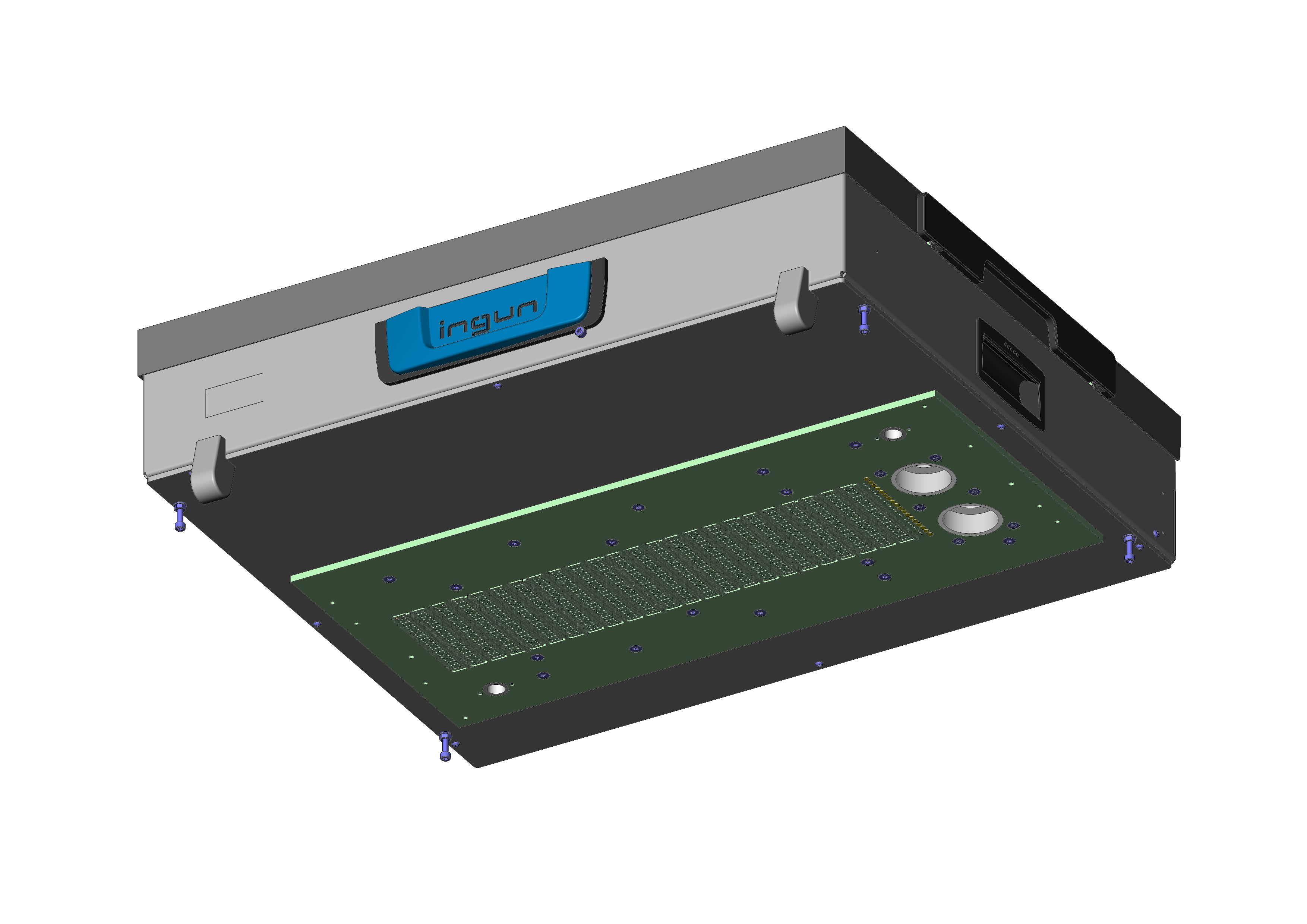

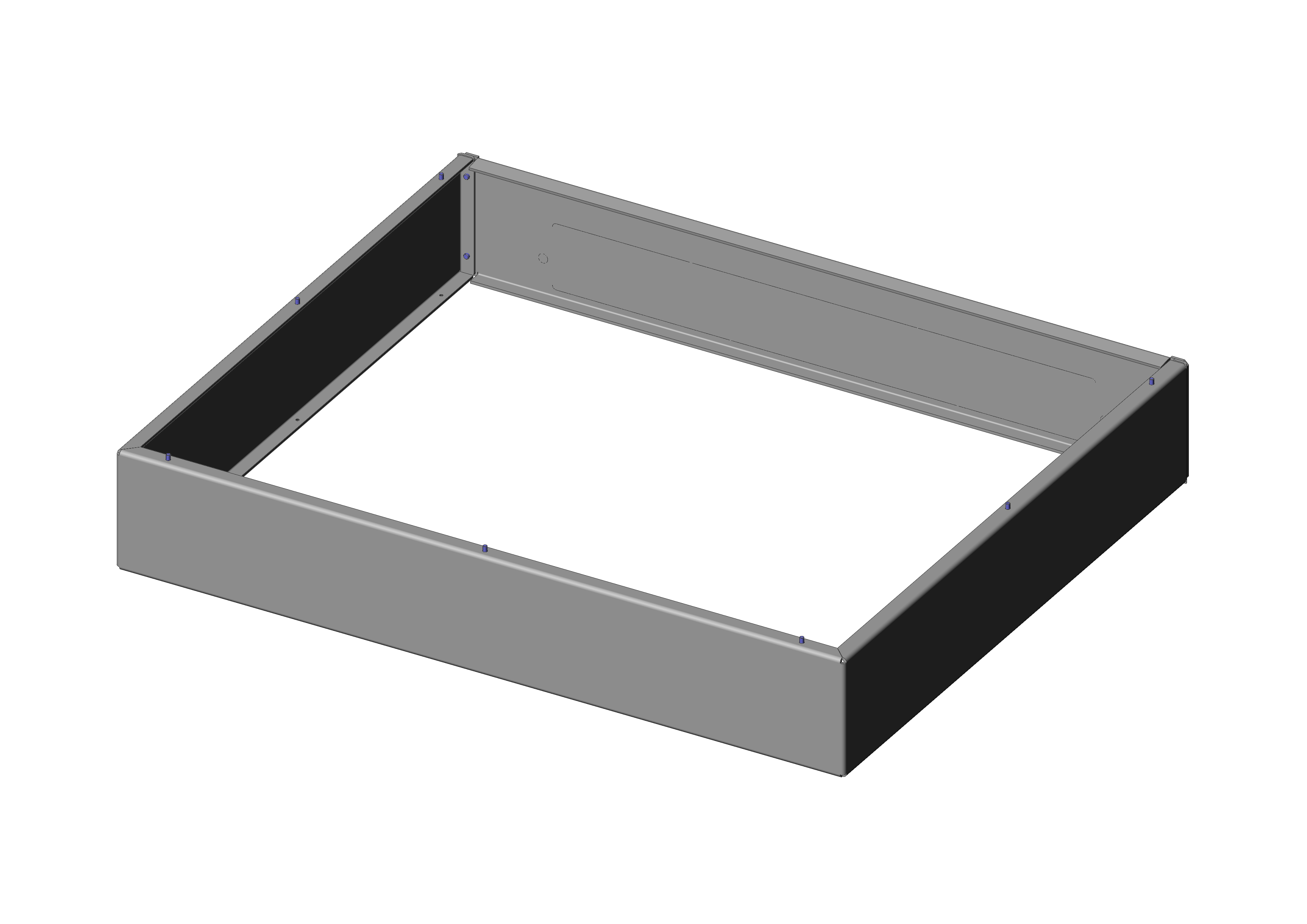

Vacuum test fixture VA 3040/F/H/88xx-S Item 104434
- Vacuum test fixture with parallel closing vacuum cassette for testing large PCB quantities
- Robust, maintenance-friendly design with outstanding service life
- Stand-alone test fixtures with and without pre-configured test system interface
- Available for all common test systems
- Increased operating convenience without significant closing forces
- Intuitive, easy handling
- Can be modularly expanded to a dual-stage set-up
- Easy access to the interface due to hinged cassette
- Detailed accompanying documents (e.g., customising guidelines)
Vacuum test fixture VA 3040/F/H/88xx-S Item 104434
Please log in to show the price
Login
The prices listed in the scale are displayed rounded, therefore deviation in the total price is possible.
Shipping costs
* The prices are rounded to two decimal places.
Technical data
| Product group : | Vacuum test fixture (VA) |
|---|---|
| Main series : | VA xxxx |
| Series : | VA 30xx |
| Series : | VA 3040 |
| Size : | xx40 |
| Test fixture type : | Stand-alone test fixture |
| Contact stroke generation : | Vacuum |
| Housing type : | Flat housing |
| Contacting direction : | Single-sided (bottom side) |
| Max. contact force : | 14000 N |
| Approx. parallel contact stroke : | 13 mm |
| Test system interface : | Teradyne 88xx-S |
| Min. temperature : | + 10 °C |
| Max. temperature : | + 60 °C |
| Test probe installation height, bottom : | 16 mm |
|---|---|
| Standard version : | Yes |
| Useable area, standard (WxD) : | 460 x 360 mm |
| ESD version : | No |
| Radio frequency version : | No |
| Rigid pin version : | No |
| Dual-stage version : | No |
| Additional contacting unit (ZSK), top : | Yes, with suitable additional option |
| Outer dimensions, closed (WxDxH) : | 566 x 472 x 150 mm |
